Virtual Networks view

The Virtual Networks view is a tree view. It lists the virtual networks existing in your environment, and shows their severity state.This view appears on the left when you select the Virtual Networks tile in the Actions bar.

Figure 18. Virtual Networks view

Selecting the All Virtual Networks node displays the overall information all virtual networks in the Summary - All Virtual Networks view on the right. Similarly, selecting a virtual network node shows virtual network-specific metrics in the Virtual Network Summary view.


Table 31. Description of the View
Data displayed
•
Alarm severity. The state of the most recent alarm raised against the virtual network.

•
All Virtual Networks. A parent node for the instances of all virtual networks.

•
Virtual Network. The instance of virtual network.
Where to go next

Drill down on:


•
All Virtual Networks. Shows the Summary - All Virtual Networks view on the right.

•
Virtual Network. Shows the Virtual Network Summary view on the right.

Summary - All Virtual Networks view

The Summary - All Virtual Networks view appears on the right when you select All Virtual Networks in the Virtual Networks view.

Figure 19. Summary - All Virtual Networks view


Table 32. All Virtual Networks
Description

Lists the overall information of all virtual networks.

Data displayed
•
Severity. Indicates the alarm severity: Warning, Critical, or Fatal.

•
Name. The name of the virtual network.

•
Resource Group: Indicates the resource group that is associated with the selected virtual network.

•
Region. Indicates the region where the selected virtual network locates.

•
Connected Virtual Machines. Indicates the VMs that are connected with the selected virtual network.

•
Address Spaces. Indicates the IP address and the range of the virtual network.

•
DNS Servers. Indicates the DNS server.
Where to go next

Drill down on:


•
Name. Displays the Virtual Network dialog box, showing additional information about the selected virtual network, including Resource Information and Virtual Network Subnets.

•
Resource Group. Displays the Resource Group dialog box, showing additional information about the resource group, including Virtual Machines, Storage Accounts, and Virtual Networks.

•
Regions. Displays the Region dialog box, showing additional information about the region, including Virtual Machines, Storage Accounts, Resource Groups, and Virtual Networks.


Virtual Network Summary view

The Virtual Network Summary view displays complete details for a virtual network. This view appears on the right when you select a virtual network in the Virtual Networks view.

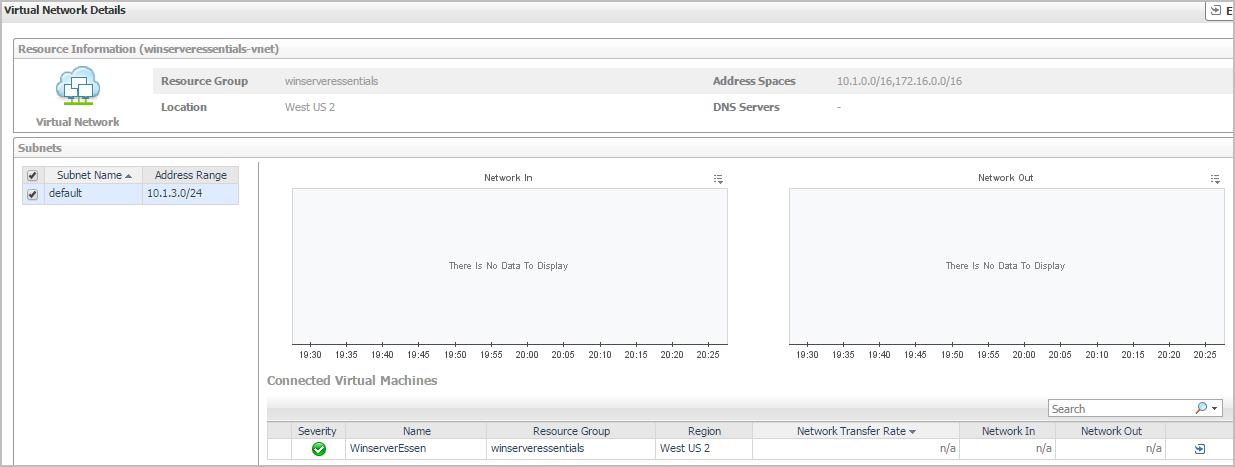

Figure 20. Virtual Network Summary view

This view consists of the following embedded views:

•
Subnets
•
Connected Virtual Machines
•
Resource Information

Table 33. Subnets
Description

Lists the subnets associated with the selected virtual network.

Data displayed
•
Subnet Name. The name of the subnet.

•
Address Range. Indicates the IP address and its range.

Table 34. Connected Virtual Machines
Description

Lists the virtual machines connected with the selected virtual network.

Data displayed
•
Severity. Indicates the alarm severity: Warning, Critical, or Fatal.

•
Name. The name of the virtual machine.

•
Resource Group: Indicates the resource group that is associated with the selected virtual network.

•
Region. Indicates the region where the selected virtual network locates.

•
Network Transfer Rate. Indicates the network transfer rate.

•
Network In. Indicates bytes received for the virtual machine.

•
Network Out. Indicates bytes sent for the virtual machine.
Where to go next

Drill down on:


•
Name. Displays the Virtual Machine dialog box, showing additional information about the virtual machine, including Resource Information, CPU, Memory, Network, and Storage.

•
Resource Group. Displays the Resource Group dialog box, showing additional information about the resource group, including Virtual Machines, Storage Accounts, and Virtual Networks.

•
Regions. Displays the Region dialog box, showing additional information about the region, including Virtual Machines, Storage Accounts, Resource Groups, and Virtual Networks.

•
Network Transfer Rate. Displays the Network Usages dialog box, showing Network Transfer Rate, Network In, and Network Out.

Table 35. Resource Information
Description

Shows the name of the selected virtual network, its resource group, address spaces, location, and DNS Servers.

Tags Tab

The Tags tab of the Cloud Manager dashboard helps you quickly search for virtual machines or volumes using tag name and tag values.

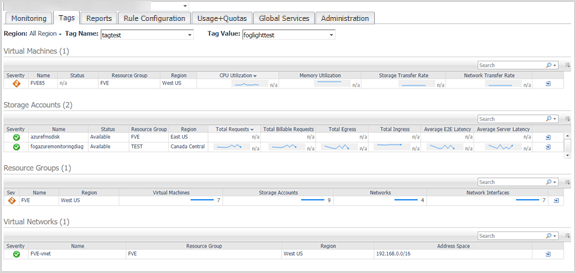

Figure 21. Tags dashboard

i

To access the Tags dashboard:
1
Log in to the Foglight browser interface.
2
Ensure that the navigation panel is open.
To open the navigation panel, click the right-facing arrow on the left.
3
On the navigation panel, under Homes, click Cloud Manager.
The Cloud Manager dashboard opens.
4
Click Tags in the actions bar.
The Tags view opens on the bottom of Cloud Manager dashboard.

The Hybrid Cloud Manager for Azure provides the following elements:

•
Region: Lists all regions or available regions, for example, Singapore.
•
Tag Name. Sort out all tags that belong to the selected Region.
•
Tag Value. Sort out all tags that belong to the selected Tag Name.
•
Virtual Machines table: Shows Virtual Machine Name, Power State, CPU Utilization, Memory Utilization, Network Utilization, and Volume Utilization of the VMs that include the specified tag name or value.
•
Storage Accounts table: Shows Storage Account Name, Status, and Metrics of the VMs that include the specified tag name or value.
•
Resource Groups table: Shows Resource Group name, related Virtual Machines, Storage Accounts, Networks, and Networks interfaces of the VMs that include the specified tag name or value.
•
Virtual Networks table: Shows Virtual Networks name, Resource Group, and Address Space of the VMs that include the specified tag name or value.
