Foglight Hybrid Cloud Manager 1.9 - User Guide (for Google environments)

Usage & Quotas Tab

Foglight Hybrid Cloud Manager for Google Cloud allows you to view the subscription details by four filters, including Quota, Owner, Usage, Limit, and Utilization.

Figure 15. Usage & Quotas dashboard

To access the Usage & Quotas dashboard:
1
Log in to the Foglight browser interface.
2
Ensure that the navigation panel is open.
To open the navigation panel, click the right-facing arrow on the left.
3
On the navigation panel, under Homes, click Cloud Manager.
The Cloud Manager dashboard opens.
4
Click Usage+Quotas in the actions bar.



Administration Tab

The Administration tab of the Cloud Manager dashboard contains links to agent administration tasks that you can use to manage Google Cloud performance agents.

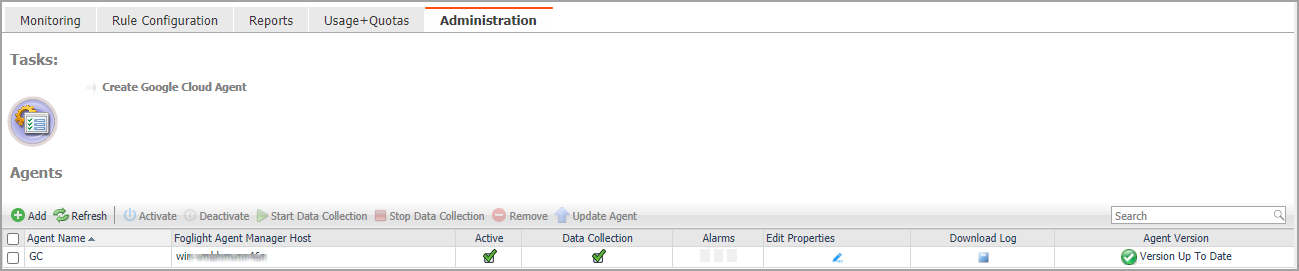

Figure 16. Administration dashboard

To access the Administration dashboard:
1
Log in to the Foglight browser interface.
2
Ensure that the navigation panel is open.
To open the navigation panel, click the right-facing arrow on the left.
3
On the navigation panel, under Homes, click Cloud Manager.
The Cloud Manager dashboard opens.
4
Click Administration in the actions bar.

For more information, see the following topics:

•
Agents related commands
•
Agents related commands
•
Creating a Google Cloud Agent
•
Editing agent properties

Agents related commands

The Administration dashboard shows a list of existing agent instances and a set of agent management commands at the top of the list. Use it to verify that your agents are collecting data from the monitored environment.

The following commands are available:

•
Add: Starts a workflow for creating new agent instances. For more information, see Creating a Google Cloud Agent.
•
Refresh: Refreshes the list of agent instances and their states.
•
Activate: Activates one or more selected agent instances. Activating an agent instance starts the agent process on the machine on which the agent is installed.
•
Deactivate: Deactivates one or more selected agent instances. Deactivating an agent stops the agent process on the machine on which the agent is installed.
•
Start Data Collection: Starts the data collection for one or more selected agent instances. Starting an agent’s data collection causes the agent to begin monitoring the Google Cloud platform and to send the collected metrics back to the Management Server.
•
Stop Data Collection: Stops the data collection for one or more selected agent instances. Stopping an agent’s data collection causes the agent to stop monitoring the Google Cloud platform.
•
Edit Properties: Starts a workflow for editing the properties of one or more selected agent instances. Each agent comes with a set of properties that it uses to configure its correct running state. Editing agent properties .
•
Remove: Deletes the selected agent instance.
•
Update Agent: Updates the agent package to the latest version.

*
IMPORTANT: Updating the agent package using this command generates the previously existing credentials. However, if you update the agent package by re-deploying its .gar file through the Agent Status page, the credentials need to be re-created. To do that, select an agent instance, click Edit Properties, and configure the required credentials on the Credentials tab of the Edit Tab Manager dialog box.

To perform any of the available commands, select one or more check boxes in the left-most column and click the appropriate button. For example, to start an agent’s data collection, select the check box in the agent row and click Start Data Collection.

Editing agent properties

Google Cloud Agents collect data from Google Cloud platform and send it to the Management Server. The agents keep tracking of resource utilization metrics and alerts you when certain pre-defined thresholds are reached.

Default versions of these properties are installed with Foglight. However, you can edit the default agent properties, configure the agent properties that apply only to a specific agent instance, and create edited clones of shareable properties that are used by a subset of certain agent type.

To edit the Google Cloud Performance Agent properties:
1
Log in to the Foglight browser interface.
2
Ensure that the navigation panel is open.
To open the navigation panel, click the right-facing arrow on the left.
3
On the navigation panel, under Homes, click Cloud Manager.
Cloud Manager dashboard opens.
4
Click Administration.
The Administration dashboard opens.
5
Select the instance of the Google Cloud Agent properties that you want to modify, and then click Edit Properties.
6
In the Edit Properties dialog box, edit the following properties, as needed.
•
Configure BigQuery Dataset Table ID to Monitor
Enter the BigQuery Table ID according to the Google Cloud Platform console. To get the BigQuery Table ID from Google Cloud Platform console, see Getting the BigQuery Table ID for more information.
•
Configure Proxy (Optional):
Configure the proxy setting when the Agent Host requires a proxy connection to the Internet.
a
Select the Enable Proxy check box to enable the proxy settings.
b
Input the host name or IP address for the Proxy Server and input the Proxy Port number.
c
If the proxy requires an authorization, select the Authorization check box, and input the Username and Password.
*
NOTE: In FIPS-compliant mode, if proxy settings are configured, you need to import the proxy server application root certificate into FMS KeyStore and FglAM. For more information, see Managing certificates.
d
Select Authorization. Input Username and Password.
•
Automatically Install Stackdriver to VM Instances: Select this option to install stackdriver agent to collect memory metrics.
•
Click to Release Lockbox to Client: Click the button to release the lockbox to client.
•
Click to Edit Credential: Click the button to update the JSON file for the service account.
•
Add Google Cloud Agent to a new credential: Create a new credential for the Google Cloud agent.
•
Add Google Cloud Agent to an existing credential: Assign the Google Cloud agent to an existing credential.
7
Click Save. The Edit Properties dialog box closes and the list of agent instances automatically refreshes in the display area.
