Datacenter Summary view

Purpose
The Datacenter Summary view shows the overall resource utilization and the amounts of system resource consumption for a datacenter.
Figure 250. Datacenter Summary view
How to Get Here
1
On the VMware Environment dashboard, on the Monitoring tab, in the Virtual Environment Overview, select the Servers tile.
2
In the Quick-View, select a datacenter node in the Datacenters view.
The Datacenter Summary view appears on the right.
Description of Embedded Views
This view is made up of the following embedded views:
•
Alarms
•
Related Items
•
Resource Utilizations

Table 111. Alarms
Description
Lists the alarms generated against the selected datacenter.
Data displayed
•
Alarm Message. An explanation about why the alarm occurred.

•
Severity. Indicates the alarm severity: Warning, Critical, or Fatal.

•
Time. The time when the alarm was generated.
Where to go next
Drill down on:

•
Alarm Message, Severity, or Time. Displays the Alarm dialog box, showing additional information about the alarm. For more information about alarms in Foglight, see the Foglight User Help.
•


Table 112. Related Items
Description
Shows the numbers of the components that are associated with the selected datacenter and the related alarm counts.
Data displayed
•
Clusters. The number of clusters that are associated with the selected datacenter, followed by the related alarm counts.

•
Datacenter. The name of the selected datacenter.

•
Datastores. The number of datastores that are associated with the selected datacenter, followed by the related alarm counts.

•
ESX Hosts. The number of ESX hosts that are associated with the selected datacenter, followed by the related alarm counts.

•
Resource Pools. The number of resource pools that are associated with the selected datacenter, followed by the related alarm counts.

•
Virtual Center. The name of the virtual center to which the selected datacenter belongs, followed by the related alarm counts.

•
Virtual Machines. The number of virtual machines that are associated with the selected datacenter, followed by the related alarm counts.
Where to go next
Drill down on:

•
Alarm count. Displays the Alarms dialog box that shows a list of all related alarms. For each alarm entry, it shows its severity, the time at which it was triggered, the rule name that triggered the alarm, and the alarm message.
Figure 251. Alarms dialog box

•
Clusters. Displays the Clusters Inventory dwell, showing the names and states of all clusters that are associated with the selected datacenter.
Figure 252. Clusters Inventory dwell

•
Datacenters. Displays the Datacenters Inventory dwell, showing the names and states of all datacenters that are associated with the selected datacenter.
Figure 253. Datacenters Inventory dwell

•
Datastores. Displays the Datastores Inventory dwell, showing the names and states of all datastores that are associated with the selected datacenter.
Figure 254. Datastores Inventory dwell

•
ESX Hosts. Displays the ESX Hosts Inventory dwell, showing the names and states of all ESX hosts that are associated with the selected datacenter.
Figure 255. ESX Hosts Inventory dwell

•
Resource Pools. Displays the Resource Pools Inventory dwell, showing the names and states of all resource pools that are associated with the selected datacenter.
Figure 256. Resource Pools Inventory dwell

•
Virtual Center. Displays the Virtual Centers Inventory dwell, showing the name and states of the selected datacenter.
Figure 257. Virtual Centers Inventory dwell

•
Virtual Machines. Displays the Virtual Machines Inventory dwell, showing the names and states of all virtual machines that are associated with the selected datacenter.
Figure 258. Virtual Machines Inventory dwell

Table 113. Resource Utilizations
Description
Shows the resource consumption for the selected datacenter broken down into four simple views.
Data displayed
•
CPU Load. The current percentage of the selected datacenter’s CPU load, used to execute system code and user programs, based on the total CPU capacity.

•
CPU Utilization, % Ready. The percentage of the datacenter’s CPU resources that is ready to execute system code and user programs during the selected time period.

•
CPU Utilization, % Used. The percentage of the datacenter’s CPU utilization spent on executing system code and user programs during the selected time period.

•
Disk I/O. The current disk I/O rate for the selected datacenter.

•
Disk Utilization, Read Rate. The rate at which the datacenter reads data from the disk during the selected time period.

•
Disk Utilization, Write Rate. The rate at which the datacenter writes data to the disk during the selected time period.

•
Memory Utilization, Active. The amount of the available memory that the datacenter uses during the selected time period.

•
Memory Utilization, Ballooned. The amount of physical memory that is actively being used by the VMware Memory Control Driver to allow the guest OS to selectively swap memory.

•
Memory Utilization, Shared. The amount of the virtual machine memory that is freed up due to transparent page sharing.

•
Memory Utilization, Swapped. The amount of memory that is stored in disk swap space

•
Network I/O. The current rate at which the selected datacenter transfers data from and to the network.

•
Network Utilization, Receive Rate. The rate at which the selected datacenter receives data from the network during the selected time period.

•
Network Utilization, Send Rate. The rate at which the selected datacenter sends data to the network during the selected time period.
Where to go next
Drill down on:

•
CPU Load spinner. Displays the CPU Load dialog box.
Figure 259. CPU Load dialog box

•
CPU Utilization graph. Displays the CPU Utilization dialog box.
Figure 260. CPU Utilization dialog box

•
Disk I/O spinner. Displays the Disk I/O dialog box.
Figure 261. Disk I/O dialog box

•
Disk Utilization graph. Displays the Disk Utilization dialog box.
Figure 262. Disk Utilization dialog box

•
Memory Utilization graph. Displays the Memory Utilization dialog box.
Figure 263. Memory Utilization dialog box

•
Network I/O spinner. Displays the Network I/O dialog box.

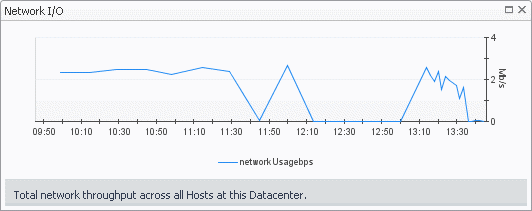

Figure 264. Network I/O dialog box

•
Network Utilization graph. Displays the Network Utilization dialog box.
Figure 265. Network Utilization dialog box

Summary - All Datacenters view

Purpose
The Summary - All Datacenters view displays overall resource utilization information for a group of datacenters and shows the elements that consume the highest amount of system resources.
Figure 266. Summary - All Datacenters view
How to Get Here
1
On the VMware Environment dashboard, on the Monitoring tab, in the Virtual Environment Overview, select the Datacenters tile.
2
In the Quick-View, click All Datacenters in the Datacenters view.
The Summary - All Datacenters view appears on the right.
Description of Embedded Views
This view is made up of the following embedded views:
•
Alarms
•
Top 3 CPU Consumers
•
Top 3 Disk Consumers
•
Top 3 Memory Consumers
•
Top 3 Network Consumers


Table 114. Alarms
Description
Lists the alarms generated against the monitored system.
Data displayed
•
Alarm Message. An explanation about why the alarm occurred.

•
Severity. Indicates the alarm severity: Warning, Critical, or Fatal.

•
Time. The time when the alarm is generated.
Where to go next
Drill down on:

•
Alarm Message or Time. Links to the view that shows additional information about the component affected by the alarm.

•
Severity. Displays the Alarm Created dialog box, showing additional information about the alarm. For more information about alarms in Foglight, see the Foglight User Help.
Figure 267. Alarm Created dialog box

Table 115. Top 3 CPU Consumers
Description
Shows the top three datacenters with the highest average CPU utilization.
Data displayed
•
Datacenter. The name of the datacenter.

•
Used Hz.The amount of CPU processing speed each of the top three CPU consumers spend on executing system code and user programs, during the selected time range.
Where to go next
Drill down on:

•
Datacenter. For more information, see Summary tab.

•
Used Hz (in the graph). Displays the Top 3 Datacenters -CPU Used Hz dialog box.
Figure 268. Top 3 Datacenters -CPU Used Hz dialog box

Table 116. Top 3 Disk Consumers
Description
Shows the top three datacenters with the lowest available disk space.
Data displayed
•
Rate. The rate at which the top three disk consumers read or write data to the disk during the selected time range.

•
Datacenter. The name of the datacenter.
Where to go next
Drill down on:

•
Rate (in the graph). Displays the Top 3 Datacenters - Disk Transfer Rate dialog box.

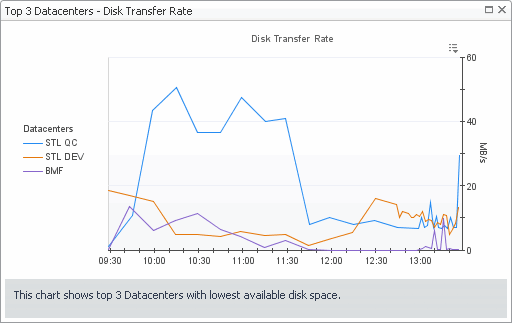

Figure 269. Top 3 Datacenters - Disk Transfer Rate dialog box

•
Datacenter. For more information, see Summary tab.

Table 117. Top 3 Memory Consumers
Description
Shows the top three datacenters with the highest average memory utilization.
Data displayed
•
Consumed. The amount of memory the top three memory consumers use during the selected time range.

•
Datacenter. The name of the datacenter.
Where to go next
Drill down on:

•
Consumed. Displays the Top 3 Datacenters - Memory Consumed dialog box.
Figure 270. Top 3 Datacenters - Memory Consumed dialog box

•
Datacenter. For more information, see Summary tab.

Table 118. Top 3 Network Consumers
Description
Shows the top three datacenters that are consuming most network bandwidth.
Data displayed
•
Rate. The rate at which the top three network consumers transfer data to or from the network during the selected time range.

•
Datacenter. The name of the datacenter.
Where to go next
Drill down on:

•
Rate. Displays the Top 3 Datacenters - Network Transfer Rate dialog box.
Figure 271. Top 3 Datacenters - Network Transfer Rate dialog box

•
Datacenter (in the table). For more information, see Summary tab.

Datacenters view

Purpose
This tree view lists the datacenters that exist in your environment and shows their state.
Figure 272. Datacenters view
Selecting All Datacenters displays overall resource utilization for all datacenters in your integrated system, and the elements that consume the highest amount of system resources in the Summary - All Datacenters view on the right. Similarly, selecting a datacenter node shows datacenter-specific metrics in the Datacenter Summary view on the right.
How to Get Here
•
On the VMware Environment dashboard, on the Monitoring tab, in the Virtual Environment Overview, select the Datacenters tile.
The Datacenters view appears in the Quick-View on the left.


Table 119. Description of the View
Data displayed
•
Alarm severity. The state of the highest-severity alarm raised against the selected datacenter.

•
All Datacenters. A parent node for the datacenter object instances that appear in this view.

•
Datacenter. A datacenter name.
Where to go next
Drill down on:

•
All Datacenters. Shows the Summary - All Datacenters view in the Quick-View.

•
Datacenter. Shows the Datacenter Summary view in the Quick-View.

Datastore Summary view

Purpose
The Datastore Summary view shows the overall resource utilization and the amounts of system resource consumption for a physical datastore.
Figure 273. Datastore Summary view
How to Get Here
1
On the VMware Environment dashboard, on the Monitoring tab, in the Virtual Environment Overview, select the Datastores tile.
2
In the Quick-View, select a datastore node in the Datastores view.
The Datastore Summary view appears on the right.
Description of Embedded Views
This view is made up of the following embedded views:
•
Alarms
•
Related Items
•
Resource Utilizations

Table 120. Alarms
Description
Lists the alarms generated against the selected datastore.
Data displayed
•
Alarm Message. An explanation about why the alarm occurred.

•
Severity. Indicates the alarm severity: Warning, Critical, or Fatal.

•
Time. The time when the alarm was generated.
Where to go next
Drill down on:

•

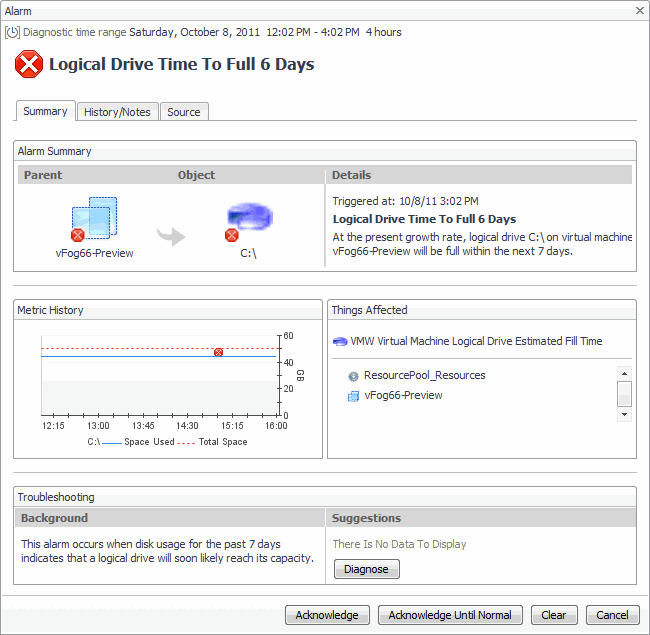

Alarm Message, Severity, or Time. Displays the Alarm dialog box, showing additional information about the alarm. For more information about alarms in Foglight, see the Foglight User Help.

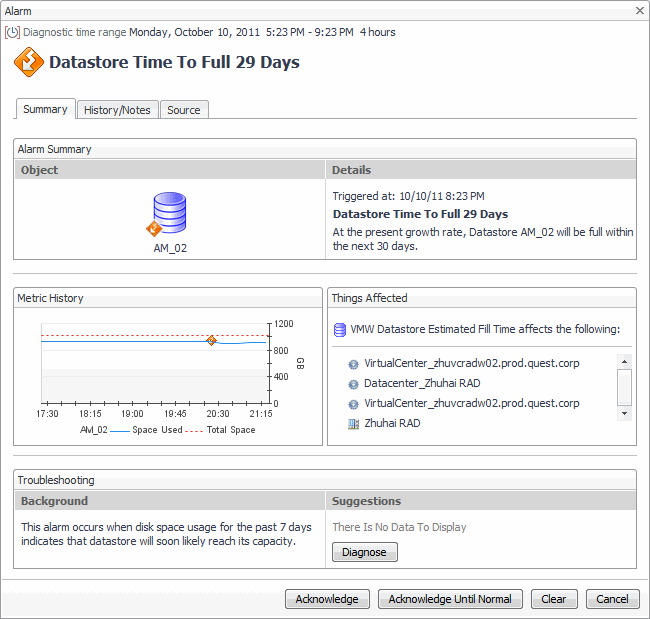

Figure 274. Alarm dialog box

Table 121. Related Items
Description
Shows the numbers and states of the selected datastore and other components associated with this datastore.
Data displayed
•
Clusters. The number of clusters associated with the selected datastore, followed by the related alarm counts.

•
Datacenter. The name of the datacenter associated with the selected datastore, followed by the related alarm counts.

•
Datastore. The name of the selected datastore, followed by the related alarm counts.

•
ESX Hosts. The number of hosts associated with the selected datastore, followed by the related alarm counts.

•
Virtual Center. The name of the virtual center associated with the selected datastore, followed by the related alarm counts.

•
Virtual Machines. The number of virtual machines that are associated with the selected datastore, followed by the related alarm counts.
Where to go next
Drill down on:

•
Alarm count. Displays the Alarms dialog box that shows a list of all related alarms. For each alarm entry, it shows its severity, the time at which it was triggered, the rule name that triggered the alarm, and the alarm message.
Figure 275. Alarms dialog box

•
Clusters. Displays the Clusters Inventory dwell, showing the names and states of the clusters associated with the selected datastore.
Figure 276. Clusters Inventory dwell

•
Datacenter. Displays the Datacenters Inventory dwell, showing the name and state of the datacenter associated with the selected datastore.
Figure 277. Datacenters Inventory dwell

•
Datastore. Displays the Datastores Inventory dwell, showing the name and state of the selected datastore.
Figure 278. Datastores Inventory dwell

•
Virtual Center. Displays the Virtual Centers Inventory dwell, showing the name and state of the virtual center associated with the selected datastore.
Figure 279. Virtual Centers Inventory dwell

•
Virtual Machines. Displays the Virtual Machines Inventory dwell, showing the names and states of all virtual machines that are associated with the selected datastore.
Figure 280. Virtual Machines Inventory dwell


Table 122. Resource Utilizations
Description
Shows the resource consumption for the selected datastore broken down into four simple views.
Data displayed
•
Capacity. The total space allocated to this datastore.

•
Datastore. The name of the selected datastore, followed by the related alarm counts.

•
Est. Time Until Full. The estimated amount of time until which this datastore will become full.

•
Free. The amount of free space for this datastore.

•
Max File Size. The maximum file size for this datastore.

•
Percent Free. The percent of free space for this datastore.

•
Type. The datastore type.

•
URL. The datastore URL.

•
Used. The amount of used space for this datastore.

•
Weekly Growth Rate. The average amount of space the datastore expands every week.
Where to go next
Drill down on:

•
Free or Percent Free. Displays the Storage Used dialog box.

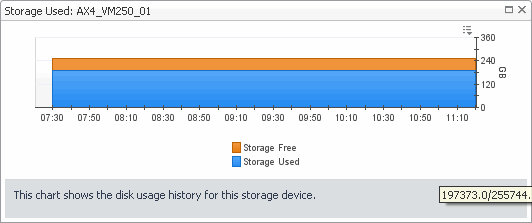

Figure 281. Storage Used dialog box

•

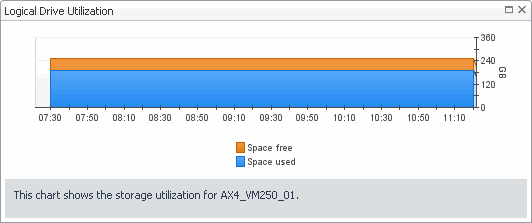

Used. Displays the Logical Drive Utilization dialog box.
Figure 282. Logical Drive Utilization dialog box
Documentos relacionados

The document was helpful.

Selecione a classificação

I easily found the information I needed.

Selecione a classificação
