Inferring Physical-Host-to-Storage Relationships

If you want to understand how storage resources are being accessed by the physical hosts in your network, without using agents to monitor the hosts directly, you can enable dependency processing. Dependency processing collects FC switch zone information and LUN connection information from arrays and filers, analyzes each host port used for storage I/O, and infers the (most likely) physical host associated with the port. When dependency processing is enabled, relevant topology diagram are enhanced to show inferred hosts connected to the ports that are used for storage I/O. Connections from inferred hosts are shown as orange or blue lines.

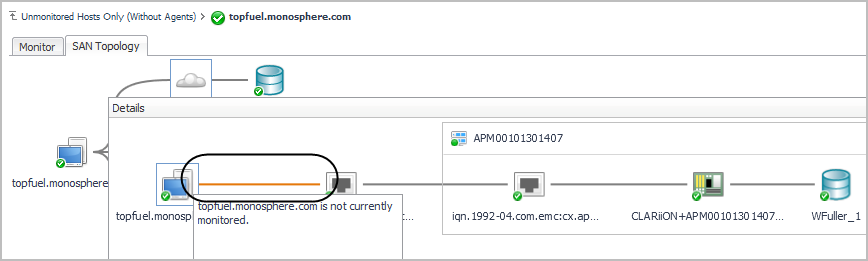

Figure 19. SAN Topology tab

In future, if you decide you want to collect data about inferred physical hosts, you can begin monitoring the hosts by configuring Infrastructure agents. For instructions, see Reviewing Inferred Hosts.

Enabling Dependency Processing

Dependency processing requires that you have VMware Performance agents configured to monitor your vCenters, and that storage collection is enabled on the agents. For more information, see “Configuring VMware Performance Agents” in the Foglight for Storage Management Installation Guide.

1
On the navigation panel, under Dashboards, click Storage & SAN > Storage Environment.
2
Click the Administration tab.
3
Click Enable Physical Host to Storage Dependency Processing.

Reviewing and Editing Host-Port Assignments

After enabling dependency processing, it is a good idea to review the list of inferred hosts derived from this process. You can verify that the inferred hosts are correct for the specified port, fix errors, and provide missing host names. For this task, you use the Review Physical Host FQDNs dashboard.

1
On the Storage Environment dashboard, in the Administration tab, click Review Physical Host FQDNs.
b
Click Edit Host FQDN.

Running Dependency Processing Manually

If your environment has changed, you can update inferred-host-to-storage connections immediately rather than waiting for a scheduled processing.

On the Review Physical Host FQDNs dashboard, use one of the following options:

Refresh—Runs the host-resolution analysis to identify inferred hosts for ports handling storage I/O.
Collect Zone Information—Dependency processing automatically collects zone information on a nightly basis. If your environment has changed, use this button to collect updated zone information for FC switches in your environment and run the host-resolution analysis. The collection and analysis can take between five to ten minutes, possibly longer depending on the complexity of the environment.
