Foglight for Storage Management Shared 4.6 - User and Reference Guide

Getting Started Monitoring Storage Performance Investigating Storage Devices Investigating Storage Components Investigating VPLEX Storage Troubleshooting Storage Performance Managing Data Collection, Rules, and Alarms Understanding Metrics Online-Only Topics

Default data collection schedules

Storage Collector agents have a default schedule for topology and performance collections, as described in the following table.


Table 9. Default data collection schedules.
Type
Collection Interval
Notes
Topology collection

3 hours

n/a

Performance Collection for EMC SMI-S and Hitachi AMS only

15 minutes

Defines the collection interval for an agent that monitors a storage device using SMI­-S or Hitachi AMS. The management hosts from which the Storage Collector agent collects performance data using SMI-S obtain performance data from the arrays every 15 minutes. Setting the agent to collect data more frequently is inefficient, because the same data is re-collected and discarded.

Performance Collection for all others

10 minutes

Defines the collection interval for an agent that uses a different method (than those listed above) to monitor a storage device.

For information about the technologies used by Storage Collector agents to monitor the different kinds of storage devices, see “Configuring Agents to Monitor Storage Devices” in the Foglight for Storage Management Installation Guide.

Modifying Data Collection Schedules for Storage Collector Agents


*
NOTE: You require the Foglight for Storage Management role Administrator to perform tasks that affect agents.

The collection interval can be increased to reduce the collection frequency impact in busy environments. It is not recommended to reduce the performance collection interval to less than five minutes. You can change the schedule for all agents by editing the default schedule, or clone the default schedule to create and select a specific schedule for a Storage Collector agent.

To modify storage collection schedules:
1
On the navigation panel, under Dashboards, click Administration > Agents.
2
Click Agent Status.
The Agent Status dashboard opens.
3
Select the agent whose schedule you want to change from the Agent Status view. You can select any Storage Collector agent if you are changing the default schedule.
4

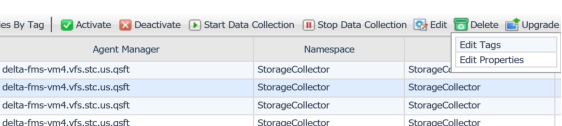

Click Edit > Edit Properties.
The Agent Status view displays.
5
Select Modify the properties for this agent only.
6
Scroll down to the Data Collection Scheduler section.
From here you can perform the following agent editing tasks:
•
To edit an existing schedule, continue with this procedure.
•
To create a unique schedule for an agent using clone, see Creating a unique schedule for an agent.
•
Assign a cloned schedule to another agent, see Assigning a Cloned Schedule to Another Agent.
7
From the Data Collection Scheduler drop-down, select the schedule you want to edit.
8
Click Edit.

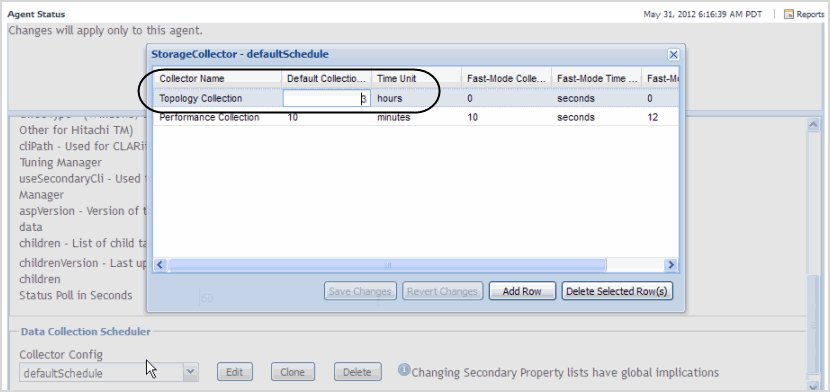

The Storage Collector-<scheduleName> dialog box opens.
9
Click inside the field you want to edit and make the required changes.
10
Click Save Changes.
11
Close the Storage Collector-defaultSchedule dialog box.
12
Click Back to Agent Status.
The edit is complete.

Creating a unique schedule for an agent

This procedure provides the steps required to create a unique schedule for a Storage Collector agent.

To create a unique schedule for an agent:
1

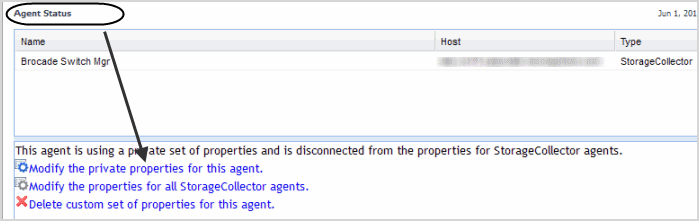

From the Agent Status view, click Modify the private properties for this agent.
2
Scroll down to the Data Collection Scheduler section.
3

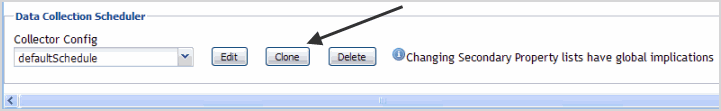

In the Data Collection Schedule section, click Clone.
The Clone defaultSchedule dialog box opens.
4
Enter a schedule name, and click OK.
The newly-cloned schedule appears in the Collector Config schedule selector.
5
Click Edit.
The Storage Collector edit dialog box opens.
6
Click inside the field(s) to be edited.
7
Click Save Changes to update the new schedule.
8
Close the Storage Collector-<name> dialog box.
9
Click Save to assign the new schedule to the agent.
10
Click Back to Agent Status.
The edit is complete.

Assigning a Cloned Schedule to Another Agent

This procedure provides the steps required to clone a schedule to another Storage Collector agent.

To assign a cloned schedule to another agent:
1
From the Agent Status view, click Modify the private properties for this agent.
2
Scroll down to the Data Collection Scheduler section.
3

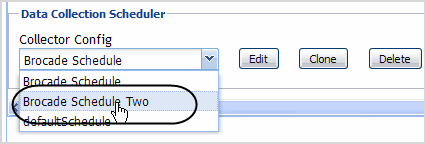

Click the Collector Config drop-down list.
4
Select the schedule you want to assign to this agent.
5
Click Save to assign this new schedule to this agent.
6
Click Back to Agent Status.
The edit is complete.
