Foglight for SQL Server 5.7.5.1 - Foglight for SQL Server Hardware Sizing Guide

SQL PI Repository

Table 4. Store SQL PI associated data of SQL Agents with SQL PI enabled.
Machine
# of SQL Agents
Memory
CPUs (2.4 GHz)
1-5
2 GB
1 core
6-10
2 GB
2 cores
11-50
8 GB
4 cores
51-100
14GB
4 cores
101-200
2 SQL PI repositories
Note the following:
•
SQL PI Repository disk space size is 1GB on the average and up to 2GB per agent.
Machine Prerequisites
•
Operating system version
•
Windows Server 2008 and above
•
Linux (RHEL, CentOS 6, SUSE 11)
•
Agent Manager available
It is recommended that you install the SQL PI repository on a dedicated machine.

Deployment Use Cases

All in One
•
All monitoring elements reside on a single machine.
•
Recommended architecture for up to 5 SQL agents (with SQL PI). Can be considered for more as long as the sizing requirements are met.

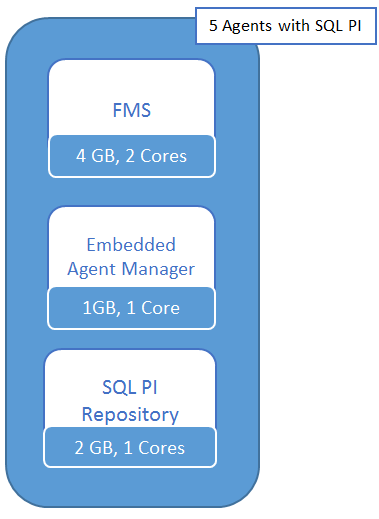

The following diagram describes 5 SQL agents with SQL PI monitoring.
Figure 1. 5 SQL agents with SQL PI monitoring


Distributed

The following diagram describes 100 SQL agents with the SQL PI monitoring in the most distributed architecture (preferable in large or growing environments).
•
It is recommended that the Foglight repository resides on a dedicated host.
•
Monitoring elements are distributed amongst different machines. Architecture can be fully or partially distributed.
•
Recommended architecture for growing environments.
Figure 2. 100 SQL agents with the SQL PI monitoring in the most distributed architecture

Concentrator Agent Manager

If a firewall is installed between the Management Server and the Agent Manager, a bidirectional connection is not possible. This issue can be resolved by creating a concentrator - an Agent Manager instance that works similarly to an HTTP proxy. This can be configured to accept data requests from the Management Server and direct them to the Agent Manager instances (called downstream instances).

Table 5. Number of SQL agents supported through a Concentrator Agent Manager.
# of Agents
Memory
CPUs (2.4 GHz)
1-100
Xms|Xmx=2048
2 cores
101-200
Xms|Xmx=4096
2 cores

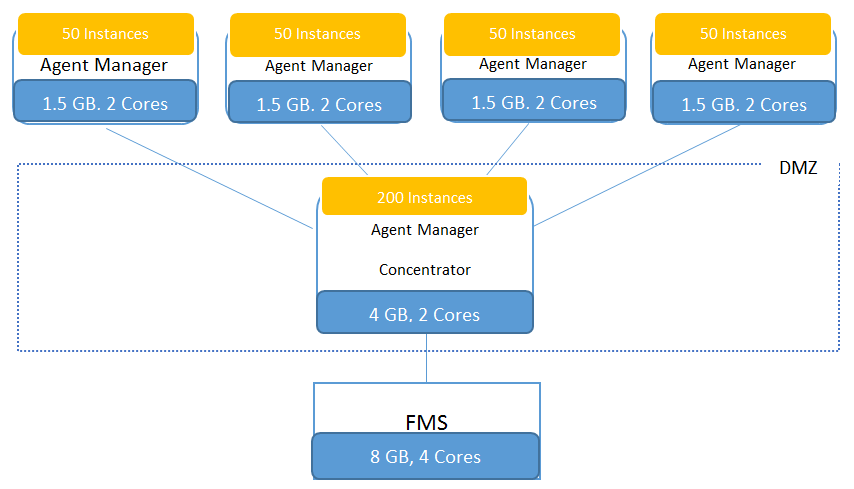

Figure 3. An example for Concentrator running 200 DB agents
