Foglight for Container Management 3.0 - User Guide

Alarms

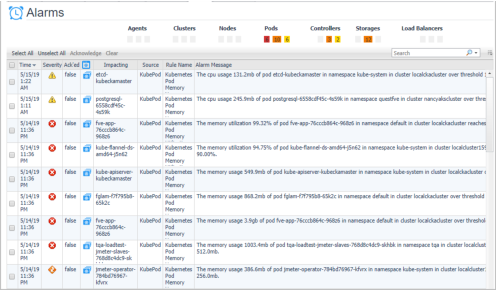

Figure 19. Kubernetes Alarms Dashboard

The Alarms dashboard displays a list of alarms generated against the monitored Kubernetes environment. Use this view to quickly identify any potential problems related to a specific Kubernetes component.

Capacity Management

Foglight for Container Management provide capacity management feature for Kubernetes. This feature uses historical data to predict the trend and usage within a specific future period.

*
NOTE: If the Capacity Management tab is not displayed, ensure the following:
1. You have purchased a license for Capacity Management. If not, contact Quest Support to purchase a license.
2. You have the Container Administrator role.
Figure 20. Capacity Management for Kubernetes

The Capacity Management dashboard contains the following fields:

•
Setting: Click to change the following values:
•
Baseline for Forecasting: Defines the historical period used for the calculations of metric views, current capacity, and recommended resources in the Resource Utilization view. The default value is 60 Days Trending.
•
Time Frame: Defines the predicted period for calculating metric views, current capacity, and recommended resources in the Resource Utilization view. The default value is Next 30 Days.
•
Resource Utilization:
•
Current Capacity: current resource capacity.
•
Current Performance: current resource usage.
•
Recommendation:
In this section, it shows how many resources are recommended to be added in the current trend, so as to meet the predicated usage.
•
Projected CPU/Memory Usage: Shows the historical data and the predicted usage trend within the configured future period.
•
Projected CPU/Memory Request: Shows the historical data and the predicted request trend within the configured future period.
•
Utilization: usage.
•
Capacity: upper bound which the usage might reach.
•
Growth Rate per Week: growth amount of the resource.
•
Time to Full: how many days the resource usage/request will reach the capacity.
*
NOTE: If a value Never is displayed at Time to Full, which means the usage/request trend is declining and the usage/request will never reach the capacity.

Optimizer

The Optimizer view appears after clicking Container > Kubernetes > Optimizer.

*
NOTE: If the Optimizer tab is not displayed, ensure the following:
1. You have purchased a license for Optimizer. If not, contact Quest Support to purchase a license.
2. You have the Container Administrator role.
NOTE: The displayed views are varied if the cluster hosts are monitored by the agents of VMware, AWS, or Azure.
Figure 21. Kubernetes Optimizer Dashboard

The Optimizer view includes the following elements:

•
Cluster Selector. The cluster selector is located at the top of the Optimizer view and allows you to select the environment that you want to optimize.
*
NOTE: The Namespace selector doesn’t work for Optimizer dashboard.
•
Settings. The Settings dialog box is used to change the time period and properties that are used for calculation. For more information, see Settings .
•
Automate. Use the Automate menu to set the criteria for automatically sending recommendations for improvements. Currently, this button only functions for CPU and Memory when a VMware cluster is selected.
•
Reclaim Now and Reclaim Later buttons. System administrator can select a VM from the list and review the Reclaiming Savings bar for information about how many resources can be reclaimed.
*
NOTE: The Reclaim Now and Reclaim Later buttons are enabled only after selecting a checkbox from the table. Currently, the two buttons only function for VM Resources, CPU, and Memory when a VMware cluster is selected.
The Automate, Reclaim Now, and Reclaim Later buttons are displayed only when a VMware cluster is selected.
•
Exclude button. Select an object you want to exclude from the table to enable the Exclude button, and click Exclude. Then, this object is added to the list of excluded objects under a specific category.
•
Show Excluded Items button. Click the Show Excluded Items button to view the excluded objects. The Settings dialog box appears. For more information, see Excluded tab .
•
VM Resources/VM Resizing. Shows instance or virtual machine name, utilization, recommendations for both CPU and memory resources, and savings.
•
CPU. Shows instance or virtual machine name, utilization, recommendations for CPU resource, and estimated savings.
•
Memory. Shows instance or virtual machine name, utilization, recommendations for memory resource, and estimated savings.
•
Storage. Shows virtual machine name, utilization, storage and modify recommendations, and savings.
*
NOTE: VM Resizing will be displayed when a cloud cluster is selected. VM Resources, CPU, Memory, and Storage will be displayed when a VMware cluster is selected.
•
Unused Resources table. Detects and shows those unused resources in container environment.
For example, persistent volume stays unused for more than 3 months. persistent volume stays in unbound status. This is due to the Unused Resources configuration in Settings.
•
Potential Zombies table. Detects and shows the potential pod controllers in container environment, including Deployment, Daemon Set, Stateful Set, Replication Controller, as well as Pod that is not managed by any Pod Controller.
For example, if all pods managed by a pod controller are zombies, then we might suggest you to delete the whole pod controller.

Settings

Use the Settings menu to define the default optimization settings for your environment. The Settings Dialog box provides information about the following components:

•
Configuration tab
•
Waste tab
•
Excluded tab
•
Credentials tab
•
Constraints tab
Configuration tab
Figure 22. Configuration tab

The Configuration tab provides the recommended settings for CPU, memory, and storage optimization.

•
Thresholds. Provides the values of a resource metric that define the Warning and Critical levels (for CPU, memory, and storage).
•
Recommendation Calculation area. Allows you to define the following parameters for optimizing the CPU, memory resources in your environment, Storage resources not supported at current version:

To save any changes made to the Configuration settings, click Save at the bottom of the tab.

Waste tab

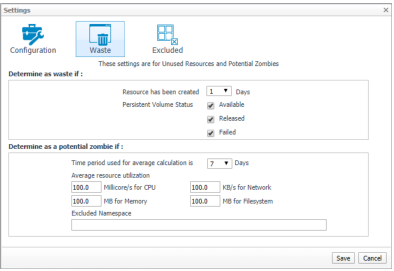

Figure 23. Waste tab

The Waste tab allows you to configure the settings for determining resources wasted in your environment. These include unused resources and potential zombie Pod controllers.

•
Determine as waste if: used to filter Unused Resources.
•
Resource has been created [time] days: Resources that has been created more than the set days will be considered here.
•
Persistent Volume Status: By default, select Available and Failed. For detailed information, go to https://kubernetes.io/docs/concepts/storage/persistent-volumes/#phase.
•
Determine as a potential zombie if: used to filter Potential Zombies.
In container environment, Potential Zombie Pod Controller is considered here, including Deployment, Daemon Set, Stateful Set, Replication Controller, and Pod that is not managed by any Pod Controller. Settings work for single pod managed by Pod Controller. If all pods or partial pods of a Pod Controller are considered as zombies, different recommendations will be generated.
•
Time period used for average calculation is [time] days: The average metrics for the pods are calculated, so a time range should be set to calculate the average value.
•
Average resource utilization: only if a pod's metrics satisfy all the conditions, it will be considered to be a potential zombie pod.
•
Excluded Namespace: pods in the namespace can be excluded in the Potential Zombies check.

To save any changes made to the Waste settings, click Save at the bottom of the tab.

Excluded tab

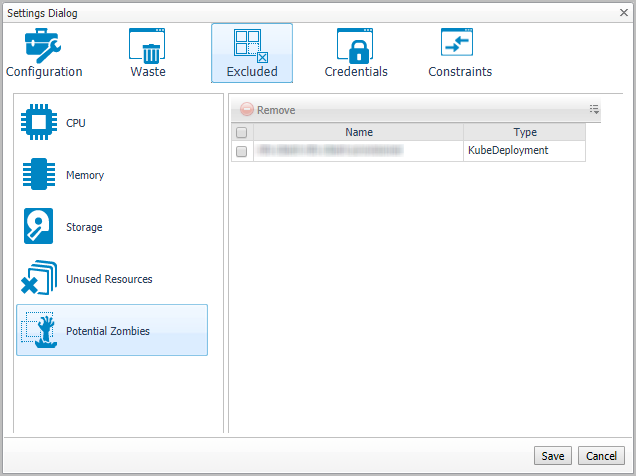

Figure 24. Excluded tab

The Excluded tab allows you to remove a resource from the list of excluded objects. The Excluded tab includes the following information:

•
On the left side, a navigation tree, that allows you to select the resource category.
•
On the right side, the list of resources excluded from the selected category.

To remove resources from the list of Excluded objects, select the check boxes for these resources and click Remove. To save any changes made to the Excluded settings, click Save at the bottom of the tab.

The Excluded tab can also be accesses by clicking Show Excluded Items on the Optimizer tab.

Credentials tab

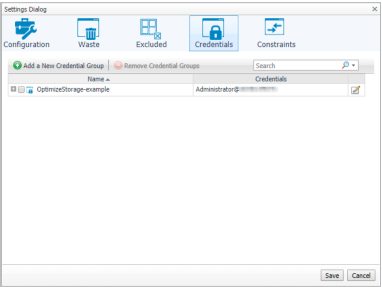

Figure 25. Credentials tab

This tab is available in VMware environment. The Credentials tab allows you to add, edit, and remove credentials groups. This tab is only for the Storage rightsizer.

Constraints tab
Figure 26. Constraints tab

This tab is available in VMware environment. The Constraints tab allows you to set custom thresholds for select objects in the environment. These recommendations are displayed in the Optimizer tab > VM Configuration/ CPU/ Memory/ Storage views > Modify Recommendation column. Use this tab to add, edit, and remove constraints groups.

*
IMPORTANT: A virtual machine may have several partitions. VM environment makes recommendations for each partition separately, but the custom constraints can be set only for the entire VM (not for individual partitions). Therefore, the custom constraint for storage are applied to all partitions on the selected VM.
