Domain Controllers Explorer Summary (All DCs) view

The Domain Controllers Explorer Summary (All DCs) view displays more detailed resource metrics and information about all of the monitored DCs in your Active Directory® environment.

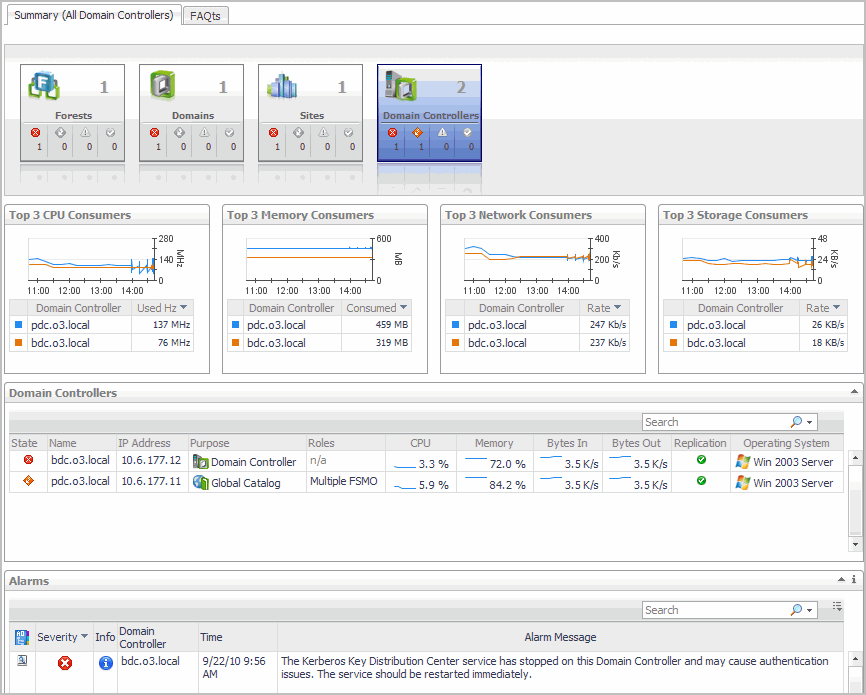

Figure 33. Domain Controllers Explorer Summary (All DCs) view

How to get here
1
From the Foglight navigation panel, select Dashboards > Active Directory > Active Directory Explorer.
2
From the Active Directory Enterprise view (under Dashboards in the navigation panel), select the Domain Controllers object container.
The Domain Controllers Explorer Summary (All DCs) view appears in the Primary view on the Active Directory Explorer dashboard.

*
NOTE: You can also click the view in Explorer link on the Domain Controllers Environment Summary (All DCs) view.
Embedded views

In addition to the current domain controller alarms, this view is made up of the following embedded views:

•
Top 3 CPU Consumers view
•
Top 3 Memory Consumers view
•
Top 3 Network Consumers view
•
Top 3 Storage Consumers view
•
Domain Controllers view

Domain Controller Explorer Summary view

The Domain Controller Explorer Summary view displays more detailed resource metrics and information about the selected DC.


*
NOTE: If the resource utilization metrics and data are not appearing on this view, check the Host Collector setting on the agent’s properties page. The VMWare option is selected by default. If Foglight for Active Directory, Foglight for Hyper-V, or Foglight for Infrastructure is being used to collect the host metrics, this setting must be set to the appropriate option.

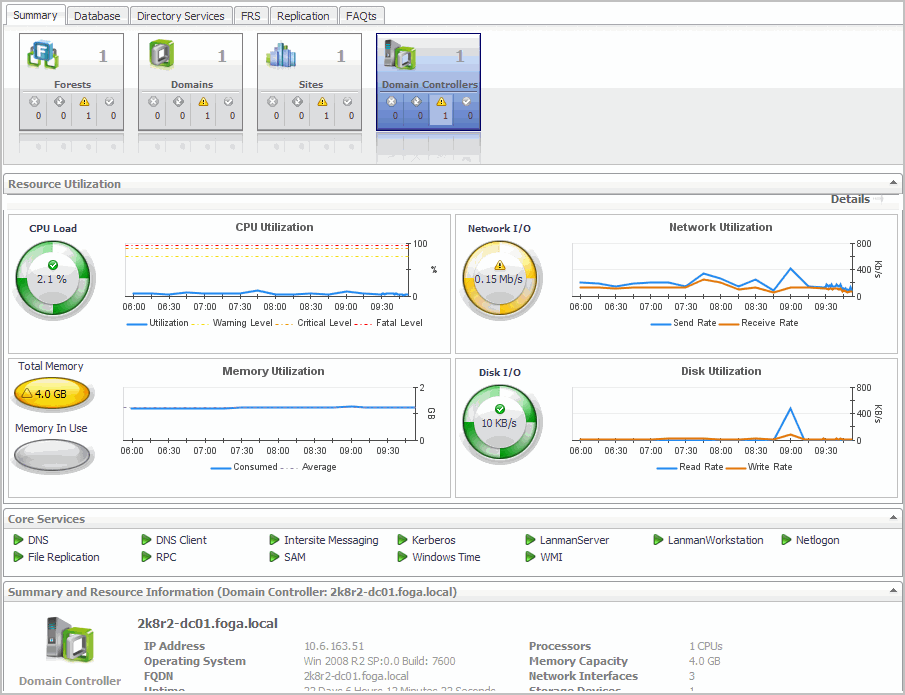

Figure 34. Domain Controller Explorer Summary view

How to get here
1
From the Foglight navigation panel, select Dashboards > Active Directory > Active Directory Explorer.
2
Use one of the following methods to display this view:
•
From the Active Directory Enterprise view (under Dashboards in the navigation panel), select an individual DC object.
•
From the Domain Controllers tile (at the top of the Summary view), select the Domain Controllers icon, title or count. On the Domain Controllers Inventory dialog, select an individual DC.
3
Select the Summary navigation tab.
The Domain Controller Explorer Summary view appears in the Primary view on the Active Directory Explorer dashboard.

*
NOTE: You can also click the view in Explorer link on the Domain Controller Environment Summary view for the selected DC.
Embedded views

In addition to the current domain controller alarms, this view is made up of the following embedded views:

•
Resource Utilization view
•
Asynchronous Thread Queue view
•
Summary and Resource Information view

Resource Utilization Details view

The Resource Utilization Details view displays more detailed information about the selected DC’s resources.

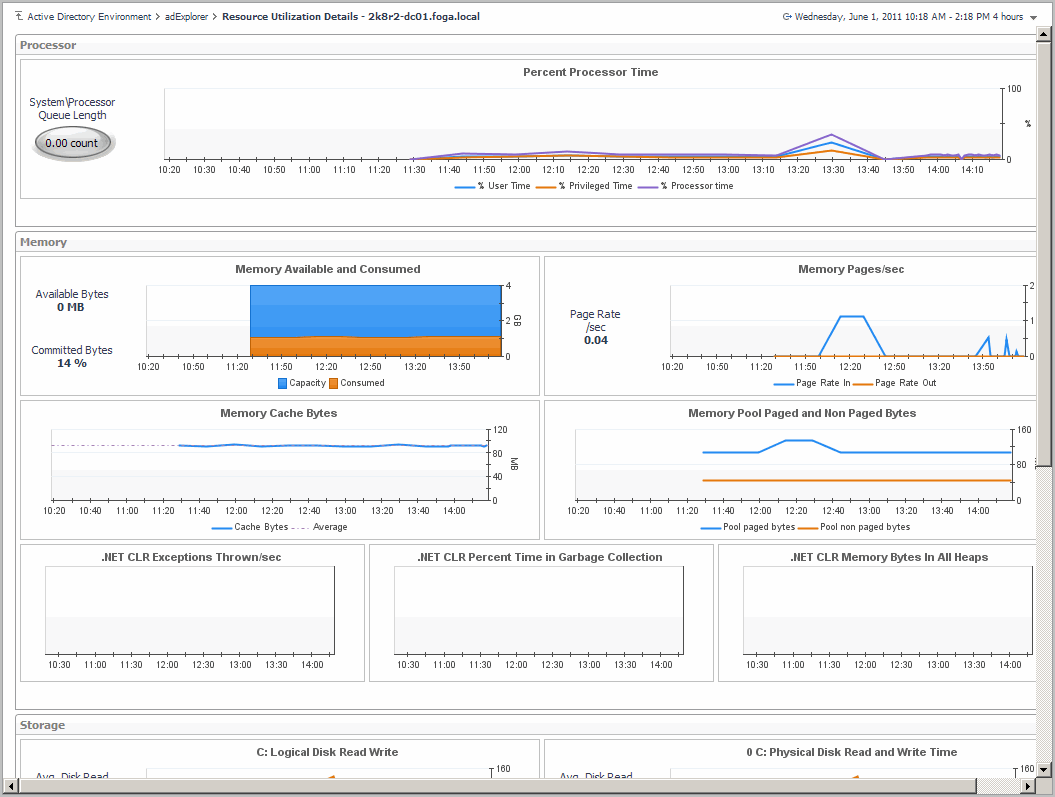

Figure 35. Resource Utilization Details view

How to get here
1
From the Foglight navigation panel, select Dashboards > Active Directory > Active Directory Explorer.
2
Use one of the following methods to display this view:
•
From the Active Directory Enterprise view (under Dashboards in the navigation panel), select an individual DC object.
•
From the Domain Controllers tile (at the top of the Summary view), select the Domain Controllers icon, title or count. On the Domain Controllers Inventory dialog, select an individual DC.
3
Select the Summary navigation tab.
4
Click the Resource Utilization title or the Details link in the upper right-hand corner of the Resource Utilization view.
The Resource Utilization Details view appears in the Primary view on the Active Directory Explorer dashboard.
Embedded views

This view is made up of the following embedded views:

•
Processor view
•
Memory view
•
Storage view
•
Network view

Domain Controller Database view

The Domain Controller Database view displays performance health information about the selected DC’s database.

Figure 36. Domain Controller Database view

How to get here
1
From the Foglight navigation panel, select Dashboards > Active Directory > Active Directory Explorer.
2
Use one of the following methods to display this view:
•
From the Active Directory Enterprise view (under Dashboards in the navigation panel), select an individual DC object.
•
From the Domain Controllers tile (at the top of the Summary view), select the Domain Controllers icon, title or count. On the Domain Controllers Inventory dialog, select an individual DC.
3
Select the Database navigation tab.
The Domain Controller Database view appears in the Primary view on the Active Directory Explorer dashboard.
Embedded views

This view is made up of the following embedded views:

•
Database Performance Health view
•
Database Access view*
•
Database Cache view*
•
Database Log Access view*
•
Defragmentation Tasks view*
NOTE:
*
NOTE: The views marked with an asterisk (*) are not displayed by default. In order to display these views, you must enable the corresponding collection group in the Database section of the Metrics Management dashboard.
