Foglight Automation 5.6.3.8 - User and Reference Guide

Summary View

The Summary tab provides general information about the Automation resources and processes, and allows you to:

•
Quickly browse through the various categories of tasks (for example, running, scheduled, completed, and failed).
•
Check the workload on the Workflow Servers and Management Servers.
•
View the Notification Messages and Warnings.

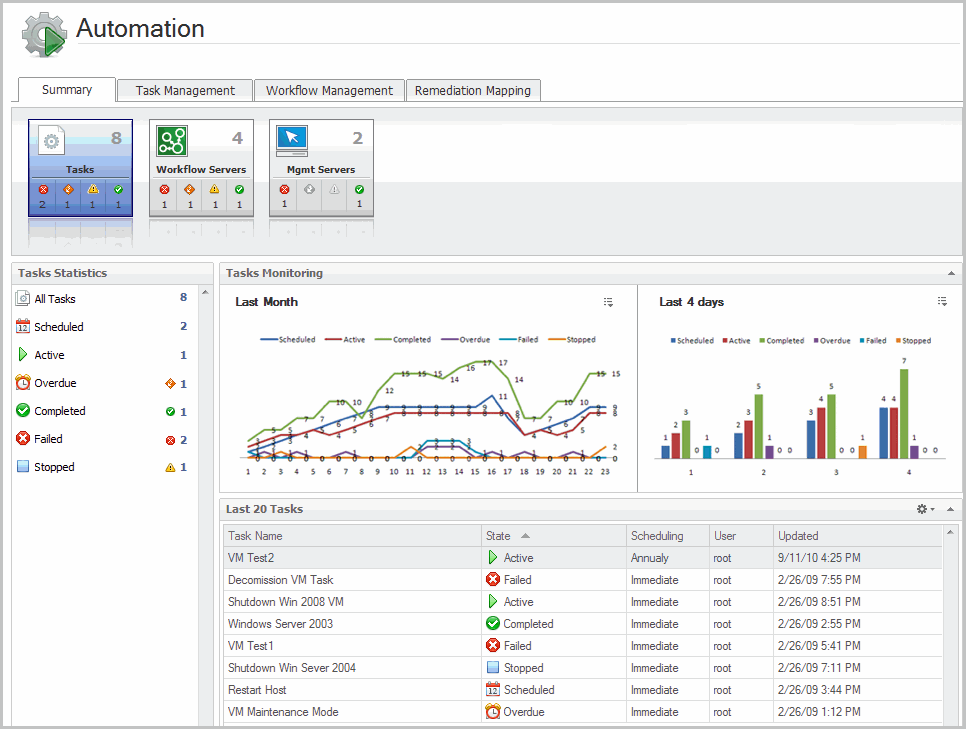

Figure 1. The Summary tab provides you with the overall view of the current state of Foglight for Automation.

To view the summary information:
1
On the navigation panel, under Homes, click Automation.
2
Click the Summary tab.

The Summary tab contains three tiles:

•
Tasks—allows you to browse through the tasks, filter the tasks by a category, inspect the task execution statistics, and view the notifications and alarms.
•
Workflow Servers—allows you to inspect the load on the servers that run workflows, and view the notifications and alarms.
•
Management Servers—allows you to inspect the load on the Foglight for Automation Management Servers, and view the notifications and alarms.
Tip
If the tasks you execute fail, check the Workflow Servers and Management Servers operating state and workload. The failure may be caused by a heavy load on the Workflow and/or Management Servers.

Viewing the Tasks Summary

To view the Tasks Summary:
•
On the Summary tab, click the Tasks tile.
Figure 2. The Tasks Summary view opens.

The Tasks Summary contains two view: Task Statistics and Task Monitoring. The Tasks Statistics view lists task categories. To view the tasks for a particular category, click the category in the list. The summary information about the tasks of the selected category appears in the Tasks Monitoring view. You can see the task execution statistics for either the last month or the last 4 hours.

Viewing the Workflow Servers Summary

To view the Workflow Servers summary:
•
On the Summary tab, click the Workflow Servers tile.
The Workflow Servers Summary view opens.

The Workflow Servers Summary contains two views: Workflow Servers and Summary. The Summary view on the right changes depending on the selection in the Workflow Servers list on the left. Select a workflow server from the list to view its utilization statistics in the Details view.

Figure 3. The Summary view displays information about the System Alarms and Changes below the workflow server statistics.

To view detailed information about an alarm, error, related host, or related agent, hover the cursor over its icon. A dwell appears, containing detailed information about the selected entity.

Viewing the Management Servers Summary

To view the Management Servers summary:
•
On the Summary tab, click the Management Servers tile.
The Management Servers Summary view opens.

The Management Servers view displays statistical information about server resource utilization, while alarms and system changes appear in the Summary view.

Select a management server from the list to view its operational status. The Resource Utilization view displays information about the following parameters of the selected management server:

•
CPU Load
•
Network Input/Output (I/O)
•
Memory Utilization
•
Disk Input/Output (I/O)
Figure 4. The Summary view below management server statistics displays information about the System Alarms and Changes.

To view detailed information about an alarm, error, related host, or related agent, hover the cursor over its icon. A dwell appears, containing detailed information about the selected entity.
