Where can I find regular expressions?

Regular expressions can be found in many parts of Foglight. For example, credential mappings use the regular expression syntax to select the hosts accessible with a specific credential.

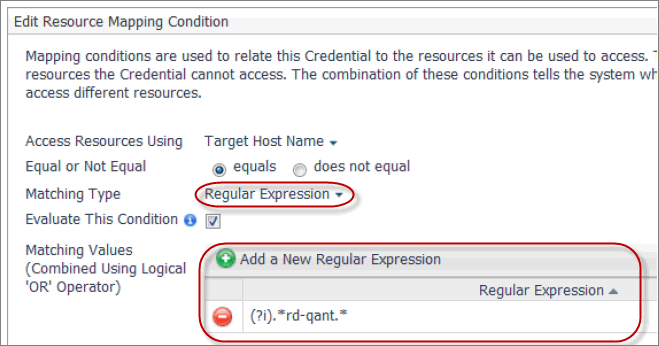

Figure 110. Edit Resource Mapping Condition dialog box
The Excluded Drives property of the WindowsAgent is another example of a regular expression usage in Foglight.

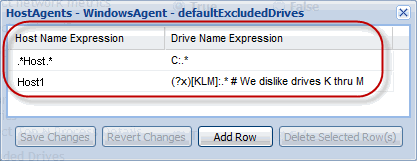

Figure 111. Agent Properties dialog box
In addition, regular expressions can be found in LogFilter expressions, FxV Hit Analysis, and other parts of Foglight.

Regular expression basics

The simplest regular expression is a basic text string containing only alphanumeric characters. For example, Host1, matches the same value, Host1.
Figure 112. Example of a simple regular expression
A regular expression is fundamentally different from a pattern using file name wild cards such as an asterisk ‘*’ or a question mark ‘?’. For example, issuing a search in Windows Explorer using *.jpg as a filter matches all files with the .jpg extension.

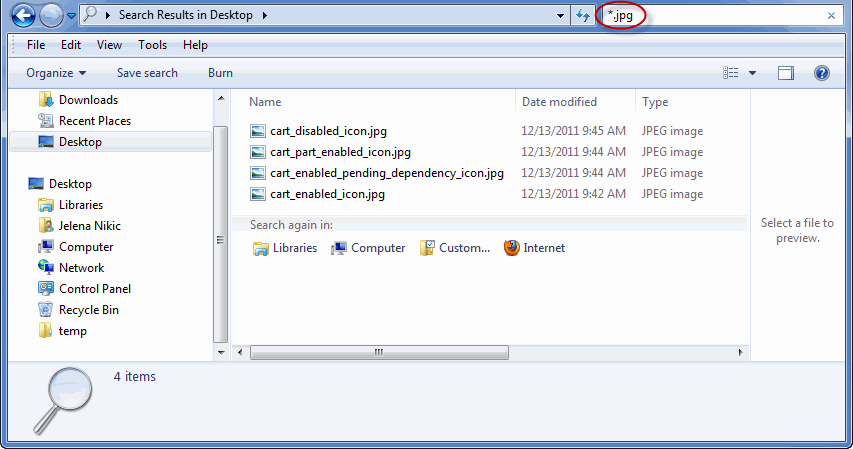

Figure 113. Searches using Windows Explorer
This is not a regular expression, it is a simple filter that uses wild cards. An equivalent regular expression that selects all files with the .jpg extension is .*\\.jpg. The details of this regular expression are covered next:
•
Building a simple pattern
•
Building a pattern that matches a specific character
•
Building a pattern that matches multiple characters
•
Using advanced quantifiers
•
Using special characters and regular expression flags
•
Grouping elements in a pattern
•
Additional information

Building a simple pattern

In this section we look at a simple regular expression pattern that selects all hosts whose names start with Host. The completed expression is Host.*. This expression contains two special characters:
•
A period ‘.’. This is a special matching symbol that matches any single character.
•
An asterisk ‘*’. This is a quantifier that instructs the regular expression interpreter to match the previous pattern zero or more times.
The final expression, Host.*, results in matching any strings that start with Host and match any of the following host names:
•
Host01
•
Host-test
•
Host
However, the following host names do not match this expression:
•
MyTestHost1
•
ProductionHst-9000
We now take a look at a simple pattern that matches a group of similar text strings. A common pattern for selecting Windows® drive names is C:.*. A typical usage of this expression is in the Excluded Drives property of the WindowsAgent.

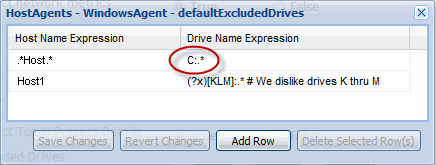

Figure 114. Building a simple pattern
Unlike in a simple file matching filter, C:*, the equivalent regular expression requires a period between the colon ‘:’ and the asterisk ‘*’, as in C:.*.

*
CAUTION: Failing to include a period in this particular example can result in data loss.
Next, we build a regular expression that selects all hosts whose name include the string Host, not just the ones that start with Host. To do that, simply add a prefix to the above expression, Host.*, resulting in .*Host.*.
This expression matches any hosts that include Host, but not necessarily begin with it. That is because the prefix .* translates to any combination of zero or more characters appearing before the string Host. The expression matches each of the following host names:
•
HostProd01
•
Host-test
•
Host
•
MyHost
•
DBHost-9000, but not DBHst-9000

Building a pattern that matches a specific character

A regular expression pattern can be used to match a string that includes a specific character. For example, you can build a pattern that matches only the drive letters C through H. To do this, you have two options:
•
Specify the entire set of valid choices enclosed in square brackets: [CDEFGH]
•
Specify a range using the first and last character only: [C-H]
Choosing the second option, the resulting regular expression is: [C-H]:.*. This means, any letter in the range and including ‘C’ through ‘H’, followed by a colon ‘:’, and optionally by more characters.
