Archive Manager for Exchange 8.9 - Outlook Addin Installation Guide

Advanced mode

Advanced mode is designed for multi-user installations (e.g. installing by GPO), during updates and repair and at installing from command line. In advanced mode you can change almost every Add-in property (default registry values) and installation options using command line options.

Correct syntax:

msiexec /[option] [path to Archive Manager Outlook Addin Setup.msi file] PROPERTY=VALUE PROPERTY2=VALUE PROPERTY3=VALUE....



Property values that are literal strings must be enclosed in quotation marks. White spaces can be included in the string between the marks.

msiexec /[option] [path to Archive Manager Outlook Addin Setup.msi file] PROPERTY="Embedded White Space"



Incorrect syntax:

msiexec /[option] PROPERTY=VALUE [path to Archive Manager Outlook Addin Setup.msi file]



Windows Installer Command-line options

The command-line options in the following table are available with Windows Installer 3.0. With these commands it is possible to change the installation types (e.g. update, repair, silent, uninstall, logging).

Windows installer commands:

http://msdn.microsoft.com/en-us/library/aa367988(VS.85).aspx

ReinstallMode commands:

http://msdn.microsoft.com/en-us/library/aa371182(VS.85).aspx

AllUsers properties:

http://msdn.microsoft.com/en-us/library/aa367559(VS.85).aspx

Examples:

First install: msiexec /i  [path to Archive Manager Outlook Addin Setup.msi file]

Update: msiexec /i  [path to Archive Manager Outlook Addin Setup.msi file]

Repair: msiexec /i [path to Archive Manager Outlook Addin Setup.msi file] REINSTALL=ALL REINSTALLMODE=vomus or just select repair  option in the maintenance dialog.

Uninstall: msiexec /x [path to Archive Manager Outlook Addin Setup.msi file]

Logging: msiexec /i  [path to Archive Manager Outlook Addin Setup.msi file] /l* [path to Archive Manager Outlook Addin SetupLog.txt file]

Silent mode: msiexec /i [path to Archive Manager Outlook Addin Setup.msi file] /qn

Archive Manager Outlook Add-in Command-line options

When installing the Add-in from the command line it is possible to change the default registry key values and set your desired ones.  When installing the Add-in (Archive Manager Outlook Addin Setup.msi) without the Add-in command line options, registry keys are created with default values, except in silent mode installation (see examples below), where the retrieve and archive server name must be specified in the command line.

The Archive Manager Outlook Addin Setup.msi setup creates default keys on the following path, depending on Windows version:

HKEY_LOCAL_MACHINE\SOFTWARE\Quest\PAM4Exchange Outlook Add-in

or

HKEY_LOCAL_MACHINE\SOFTWARE\WOW6432Node\Quest\PAM4Exchange Outlook Add-in



Archive Manager Outlook Add-in registry keys, default values and commands:

Name

Type

Default Values

Cmd prompts

Description

XServerName, RetrieveServer, ArchiveServer

REG_SZ


EXPAMSERVER

Archive Server name (NETBIOS name)

RETRIEVESERVER

REG_SZ


RETRIEVESERVER

Retrieve Server name (NETBIOS name)

ARCHIVESERVER

REG_SZ


ARCHIVESERVER

Archive Server name (NETBIOS name)

AUTOPUBLISHPERSONALFORMS

REG_DWORD

0

APUBLISHPFORMS

Force publishing of forms on startup

CACHELIMIT

REG_DWORD

2048

CACHELIMIT

Offline folder limit in KB

DisableAdd-in

REG_DWORD

0

DISABLEAdd-in

The user manages this disable state (using the Info menu).

EnableServerDetection

REG_DWORD

0

ENABLESERVERDETECTION

Enable server connection detection

EXPLICITOFFLINESETTINGS

REG_DWORD

1

EXPLOFFSET

Switch between the Outlook and custom offline folder settings

OFTAutoSynchronize

REG_DWORD

0

OFTASYNCH

Start synchronization at Outlook start

OFTAutoSynchronizeEnd

REG_DWORD

0

OFTASYNCHEND

Start synchronization at Outlook shutdown

PROTOCOL

REG_SZ

http

PROTOCOL


PUBLISHVISIBLE

REG_DWORD

0

PUBLISHVISIBLE

Enable the Publish button on the Add-in options form

REFRESHOFFLINEFOLDERSATSTARTUP


0

ROFFLFSTARTUP


TOOLBARENABLED

REG_DWORD

1

TOOLBARENABLED

Disable toolbar on admin level

TotalDisableAdd-in

REG_DWORD

0

TOTALDISABLEAdd-in

Disable Add-in on admin level

UseProxy

REG_DWORD

0

USEPROXY


ExPamInstallPath

REG_SZ

C:\Program Files\Quest\Archive Manager Outlook Add-in\

TARGETDIR

Installation path of the Add-in

DebugLevel

REG_DWORD

0

DEBUGLEVEL

Writes more information into debug.

Examples:

Changing default registry values:

Msiexec /i [path to Archive Manager Outlook Addin Setup.msi file] TOTALDISABLEAdd-in="1" TOOLBARENABLED="1" APUBLISHPFORMS="0" PUBLISHVISIBLE="0" USEPROXY="1"



Silent mode – with the same server name for archive and retrieve server:

Msiexec /i [path to Archive Manager Outlook Addin Setup.msi file] EXPAMSERVER="<Archive_Server_Name>" /qn



Silent mode – with different archive and retrieve server:

Msiexec /i [path to Archive Manager Outlook Addin Setup.msi file] ARCHIVESERVER="<Archive_Server>" RETRIEVESERVER="<Retrieve_Server>" /qn



Silent mode – with different installation path:

Msiexec /i [path to Archive Manager Outlook Addin Setup.msi file] EXPAMSERVER="<Archive_Server_Name>" TARGETDIR=“C:\\Testfolder\“ /qn

Multi-user installation

You can make the Outlook Add-in available to multiple users by assigning the Archive Manager Outlook Addin Setup.msi distribution to their computers with a Group Policy. If you assign the program to a computer, it is installed when the computer starts, and is available to all users who log on to the computer. When a user first runs the program, the installation is completed.



Group Policy deployment

This part describes how to use Group Policy to automatically distribute the Archive Manager Outlook Addin Setup package to users. You can use Group Policy to distribute the setups by using the following methods:

·Assigning Archive Manager Outlook Addin Setup.msi

info

NOTE: Assigning Archive Manager Outlook Addin Setups to client computers is not supported. Archive Manager Outlook Addin Setup.msi installs only Add-in setup (Archive Manager Outlook Addin Setup.msi) without any prerequisites checking. The prerequisites must be checked and installed manually before the Add-in setup is launched. Missing prerequisite on the client’s computer may interrupt the Archive Manager Outlook Addin Setup.msi distribution via GPO or Add-in functionality errors in Outlook. See the Troubleshooting section.





Create a Distribution Point

To publish or assign an Archive Manager Outlook Addin Setup, you must create a distribution point on the publishing server:

·Log on to the server computer as an administrator.

·Create a shared network folder which will contain the Archive Manager Outlook Addin Setup.msi file that you want to distribute.

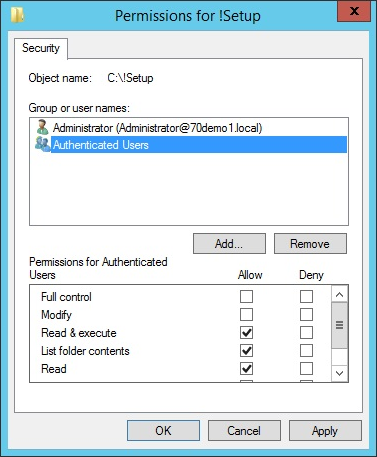

·Set permissions on the share to allow access to the distribution package (Everyone should have read access).

img-001



img-002

·Copy the Archive Manager Outlook Addin Setup to the distribution point.
