List Item File Size Condition

List Item File Size Condition

This condition allows you to apply the rule to a list item based on file size. In this section you can configure the file size by which you would like the condition to function.

METALO~3_img104

See the following table for a description of all fields.

Field Name

Description

Condition Name

Enter a name for the condition.

Process rule condition when file size (bytes).

Choose a measurement value, you can choose from the following drop down list:

METALO~3_img105

Enter the numerical value for the file size that you would like to meet the parameter. Note that the value will be in Bytes.

List Item File Extension Condition

List Item File Extension Condition

This condition allows you to apply the rule to a list item based on file extension. In this section you can configure the file extension by which you would like the condition to function.

METALO~3_img106

See the following table for a description of all fields.

Field Name

Description

Condition Name

Enter a name for the condition.

Check This box to process the rule...

Checking this first box will process the rule for the file extensions on the list. Unchecking the box will process the rules for file extensions that are not on the list.

Check this box to include

Checking this box will include files with no extension in the list.

Rule Conditions

Rule Conditions

Rule Conditions is the section where you select the conditions that will be used with the rule.

METALO~3_img96

The condition can be highlighted in the left column, and brought over as a selection to the right "Match on" column, using the >> button. Likewise, it can be deselected by using the << button.

Rule Conditions

Description

List Name

This condition allows you to apply the rule to a specified list.

List Item Column

This condition allows you to apply the rule to a value of the list item.

List Item Content Type

The condition allows you to apply the rule to a content type.

Folder Path

The condition allows you to apply the rule to a specific folder path.

List Item File Size

The condition allows you to apply the rule to a specific list item file size.

List Item File Extension

The condition allows you to apply the rule based on specified file extensions.

info

NOTE: Rule Conditions to test List Item column, content type, and folder path cannot be evaluated for deleted items. The rule is never triggered.

Rule Actions

Rule Actions

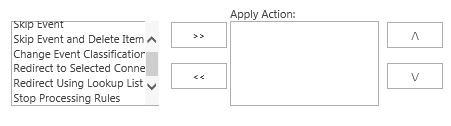

Rule Actions is the section where specific actions are selected to be applied to the rule.

METALO~3_img97

The action can be highlighted in the left column, and brought over as a selection to the right "Apply Action" column, using the >> button. Likewise, it can be deselected by using the << button. The /\ and \/ buttons allow you to organize the order in which the actions will be performed.

Rule Actions

Description

Skip Event

Skip replication for the specified event

Skip Event and Delete Item on Target

Skips replication for the specified event and deletes it on the Target.

Change Event Classification

Changes the classification of the event

Redirect to Selected Connections

Redirects the event to the specified connections and groups

Redirect Using Lookup List

Redirects the event to groups and connections, specified in a lookup list.

Stop Processing Rules

Stops the actions of the current rule and all subsequent rules for this event.

info

NOTE: Upon completion of this page, select Next to be directed to the next step of the rule configuration process.
