Replicator 7.4 - Reference Guide

Metalogix Replicator Documentation Replicator Central Administration Configure Web Application Manage Replication Groups Manage Replication Connections Manage Classifications Manage Map Families
Actions Configure Map Family Configure Replication Map Settings Manage Map Family
Monitor Replicator About Metalogix Replicator Site Settings

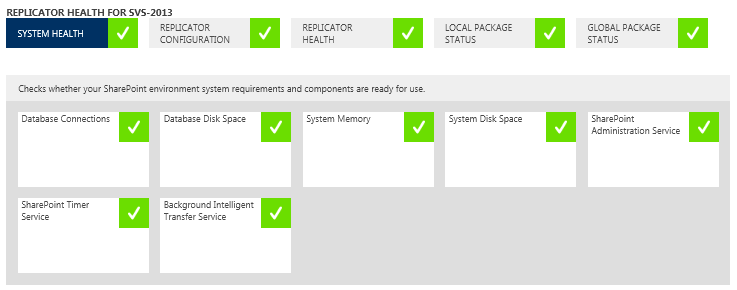

System Health

System Health provides an overview of the general health of the selected farm. This includes a check of the SharePoint system requirements and components and whether they are ready for use. Select System Health to expand the section for an overview of the various components that are checked to identify the health of your machine.

METALO~3_img134

The health checks within the System Health section check for the following:

Health Check

Description

Database Connections

Checks if the Database specified is accessible.

Database Disk Space

Checks if there is disk space available for a database.

System Memory

Checks current available physical memory.

System Disk Space

Checks if there is disk space available for a temporary directory.

SharePoint Administration Service

Checks if SharePoint Administration service is running.

SharePoint Timer Service

Checks if SharePoint Timer service is running.

Background Intelligent Transfer Service

Checks if the Background Intelligent Transfer Service is running.

For further details click on the sub system health checks listed above.

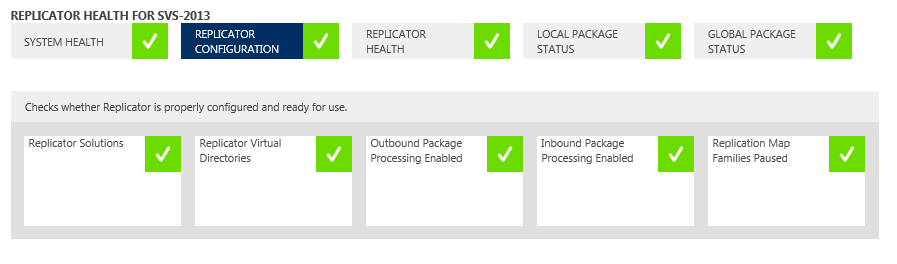

Replicator Configuration

Replicator Configuration provides an overview of the various configuration components required for replication. This check allows users to determine whether the selected farm has Replicator properly configured and is ready for use. Select Replicator Configuration to expand the section for an overview of the various components that are checked to identify the status of your Replicator configuration.

monitoring replicator

The health checks within the Replicator Configuration section check for the following:

Health Check

Description

Replicator Solution

Checks if the Replicator Content Solution is deployed to a Replicator enabled web application.

Replicator Virtual Directories

Checks if the virtual directory exists for a Replicator enabled web application.

Outbound Package Processing Enabled

Checks that outbound package processing has been enabled.

Inbound Package Processing Enabled

Checks that inbound package processing has been enabled.

Replication Map Families Paused

Checks if any Replication Map Families are paused on all Web Applications.

For further details click on the sub replication configuration checks listed above.

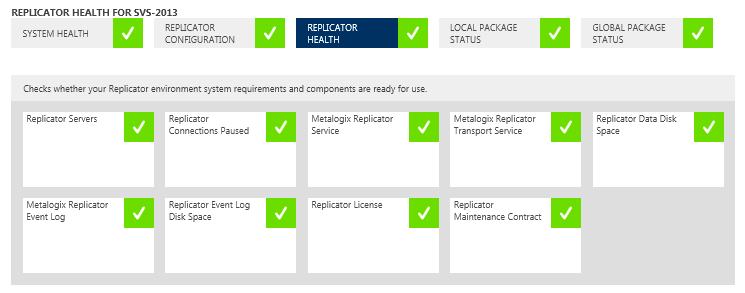

Replicator Health

Replicator Health provides an overview of the health of your Replicator environment system requirements and components on the selected farm, and whether they are ready for use. Select Replicator Health to expand the section for an overview of the various components that are checked to identify the health of your servers.

METALO~3_img136

The health checks within the Replciator Configuration section check for the following:

Health Check

Description

Replicator Servers

Checks for the existence of replication engines.

Replicator Connections Paused

Checks whether there are any paused replicator connections.

Metalogix Replicator Service

Checks if the Replicator service WSS40 is running.

Metalogix Replicator Transport Service

Checks if the Transport Service WSS40 is running.

Replicator Data Disk Space

Checks the Package Data path disk space. Checks the Cache path disk space.

Checks the DC path disk space.

Metalogix Replicator Event Log

Checks the number of error records found in the Replicator Event Log.

Replicator Event Log Disk Space

Checks the disk space available for the event log.

Replicator License

Checks validity of replicator licenses.

Replicator Maintenance Contract

Checks validity of replicator maintenance.

For further details click on the sub replicator server checks listed above.

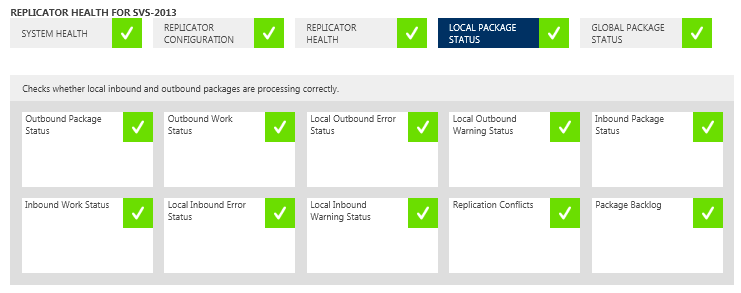

Local Package Status

Local Package Status provides an overview of the status of local replication package processing for the selected farm. Select Local Package Status to expand the section for an overview of the various components that are checked to identify the status of local replication processing.

METALO~3_img137

The health checks within the Local Package Status section check for the following:

Health Check

Description

Outbound Package Status

Checks whether outbound packages are being processed in a timely manner.

Outbound Work Status

Checks the work status of outbound package processing.

Local Outbound Error Status

Checks if there are any outbound packages in the Error state on a web application.

Local Outbound Warning Status

Checks if there are any outbound packages in the Warning state on a web application.

Inbound Package Status

Checks whether inbound packages are being processed in a timely manner.

Inbound Work Status

Checks the work status of inbound package processing.

Local Inbound Error Status

Checks if there are any Inbound packages in the Error state on a web application.

Local Inbound Warning Status

Checks if there are any Inbound packages in the Warning state on a web application.

Replication Conflicts

Checks if there are any inbound packages in the conflicts state on a web application.

Package Backlog

Checks the estimated processing time for packages on a given connection.

For further details click on the sub local replication checks listed above.
