Databases > Specifics - Sybase IQ 15.2

Attribute

Data types marked with '*' are system domains.

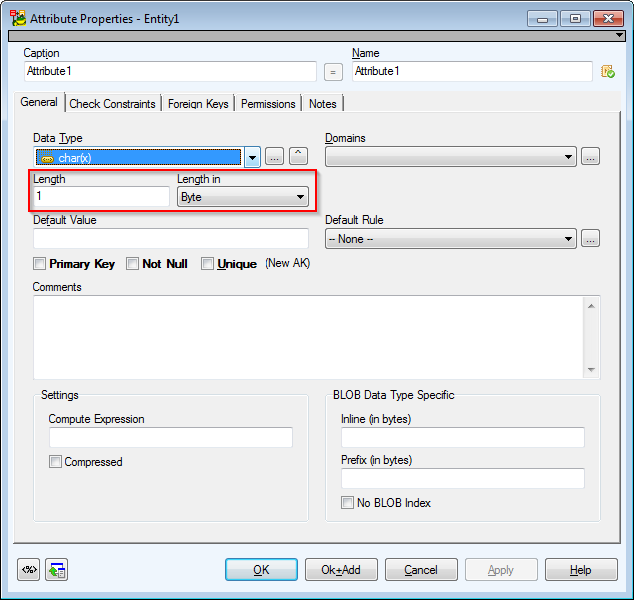

Second parameter BYTE (byte-length semantics [default]) or CHAR (character-length semantics) are available for data types CHAR and VARCHAR.

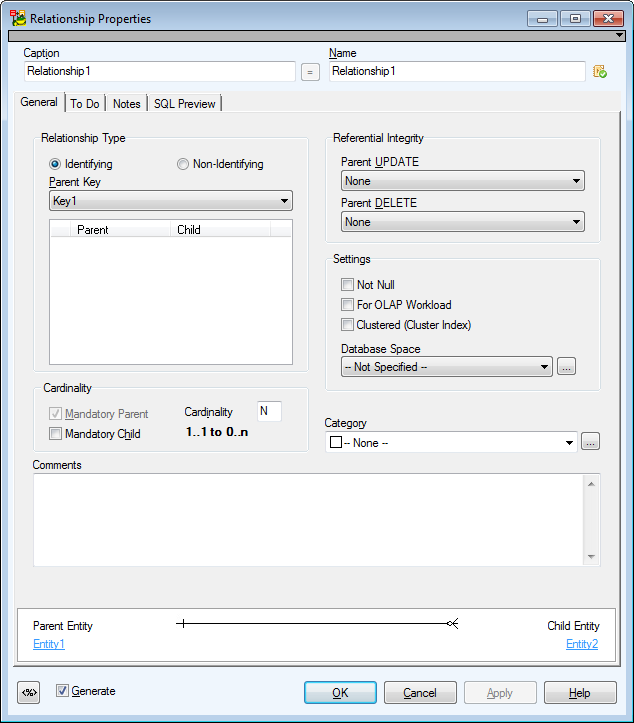

Relationship

It is not possible to load FOR OLAP WORKLOAD statements during reverse engineering.

Index

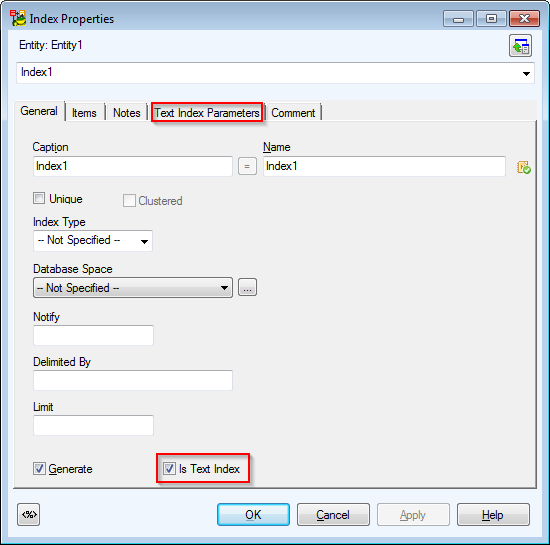

TEXT INDEX supported – select the Is Text Index checkbox and see the options on tab Text Index Parameters.

Other objects in Model Explorer:

Database Spaces
Text Configuration Objects
User-Defined Messages

Text Configuration Object

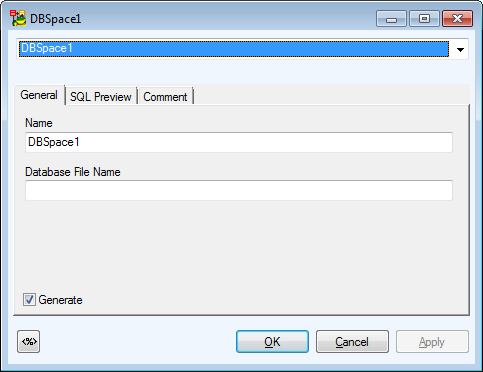

Database Spaces (DBSPACE (51001))

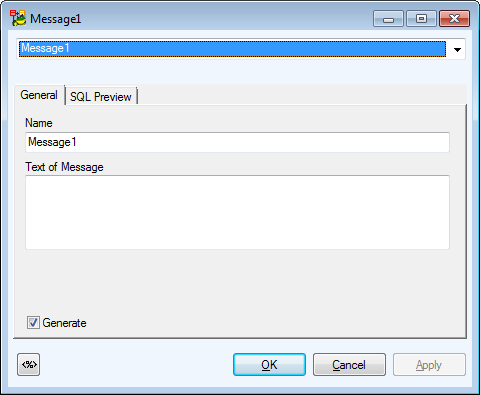

User-Defined Messages (MESSAGE (53201))

Reverse Engineering

Databases > Sybase IQ 15.2 > Reverse Engineering

Available Data Providers are:

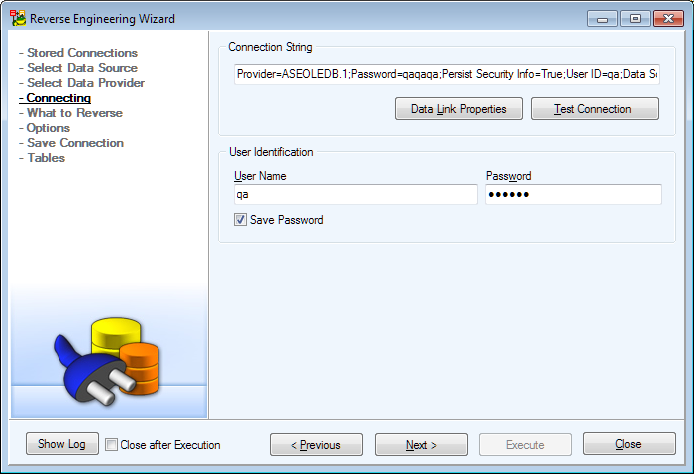

Connection via ODBC
Connection via ADO

Connection via ODBC

Connection via ADO

Sybase SQL Anywhere 11

Databases > Specifics - Sybase SQL Anywhere 11

Attribute

Data types marked with '*' are system domains.

Second parameter BYTE (byte-length semantics [default]) or CHAR (character-length semantics) are available for data types CHAR and VARCHAR.

Relationship

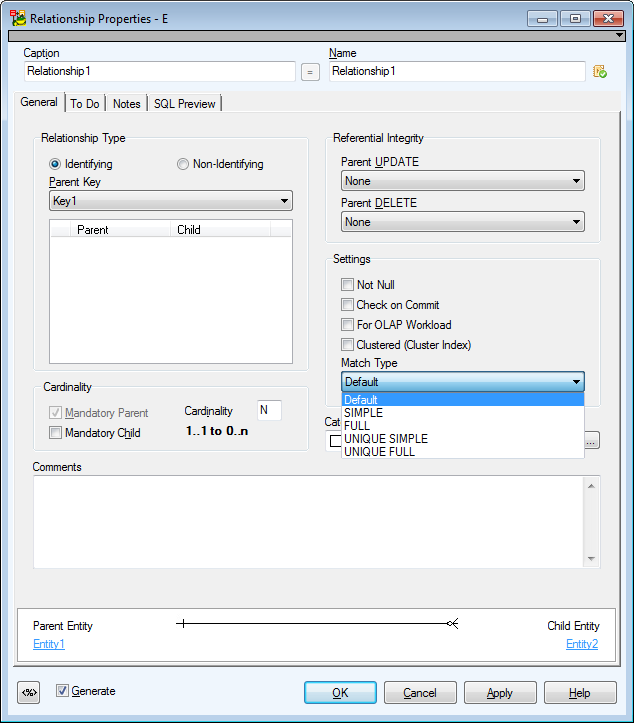

Box Match Type with options Default, SIMPLE, FULL, UNIQUE SIMPLE, UNIQUE FULL.

It is not possible to reload FOR OLAP WORKLOAD during reverse engineering.

Index

It is not possible to reload FOR OLAP WORKLOAD during reverse engineering.

TEXT INDEX supported – select the Is Text Index checkbox and define other properties on tab Text Index Parameters.

Other objects in Model Explorer:

Database Spaces
Text Configuration Objects
User-Defined Messages

Reverse Engineering

Databases > Sybase SQL Anywhere 11 > Reverse Engineering

Available Data Providers are:

Connection via ODBC
Connection via ADO

Connection via ODBC

Connection via ADO
