Foglight for OpenStack 5.6.15

When you click the Volumes tab, a list of all volumes is displayed, with the default selection being All Volumes. The Summary — All Volumes frame displays a list of relevant alarms and a summary of the top disk consumers.

Select a Volume to see a Volume summary in the main body of the Quick View. The summary displays a list of related items, a list of relevant alarms, and a chart showing Resource Utilizations.

Click the Explore link in the upper right of the Quick View to view detailed information about the selected Instance.

Clicking an object type in the Related Items view displays a list of related objects of that type along with their statuses.

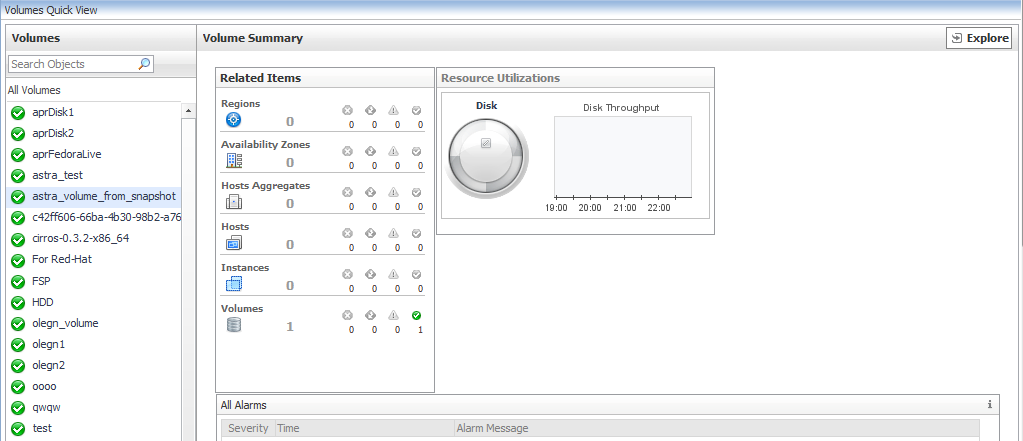

Figure 32. Volumes Quick View

Using the OpenStack Explorer dashboard

The OpenStack Explorer dashboard allows you to monitor a wide range of elements in your OpenStack infrastructure. It contains several informative views through which you can quickly and easily access detailed information about any of the available components (physical or virtual) within the infrastructure. The hierarchical interface includes drilldown capabilities that display various performance metrics and alarms within the virtual infrastructure.

To access the OpenStack Explorer dashboard:

Ensure that the navigation panel is open.

Click Dashboards > OpenStack > OpenStack Explorer.

The OpenStack Explorer dashboard contains the following views: The Topology tab located in the navigation panel and the OpenStack Explorer display area. The tabs available on each view in the display area depends on the resource object or group of resource objects selected on the Topology tab. The Summary tab appears on all views.

Topology tab

The OpenStack Explorer topology view is located in the navigation panel below the Dashboards. The navigation tree on the Topology tab represents the various OpenStack infrastructure objects: Regions, Availability Zones, Host Aggregates, Hosts, Instances, and Volumes.

For each individual object or group of objects, a status indicator appears, showing the alarm of highest severity that is outstanding for the object or objects.

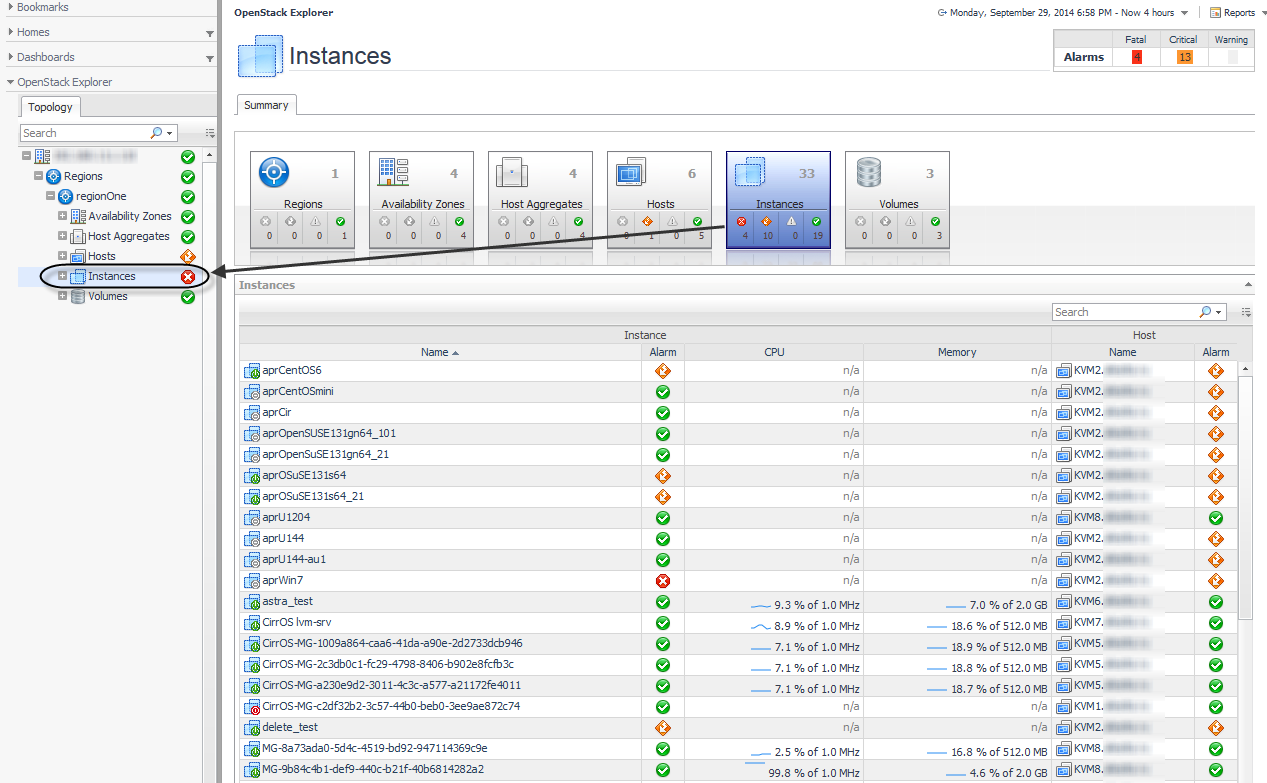

Figure 33. Topology view

OpenStack Explorer display area

All OpenStack Explorer views contain a Summary tab with Foglight tiles that indicate the type of the selected object or objects, and the related alarm counts.

The display area changes in appearance and content, depending on the selected object or group of objects.

For example, if you select Regions from the Topology view, the Summary tab displays graphs and a table representative of all the configured regions.

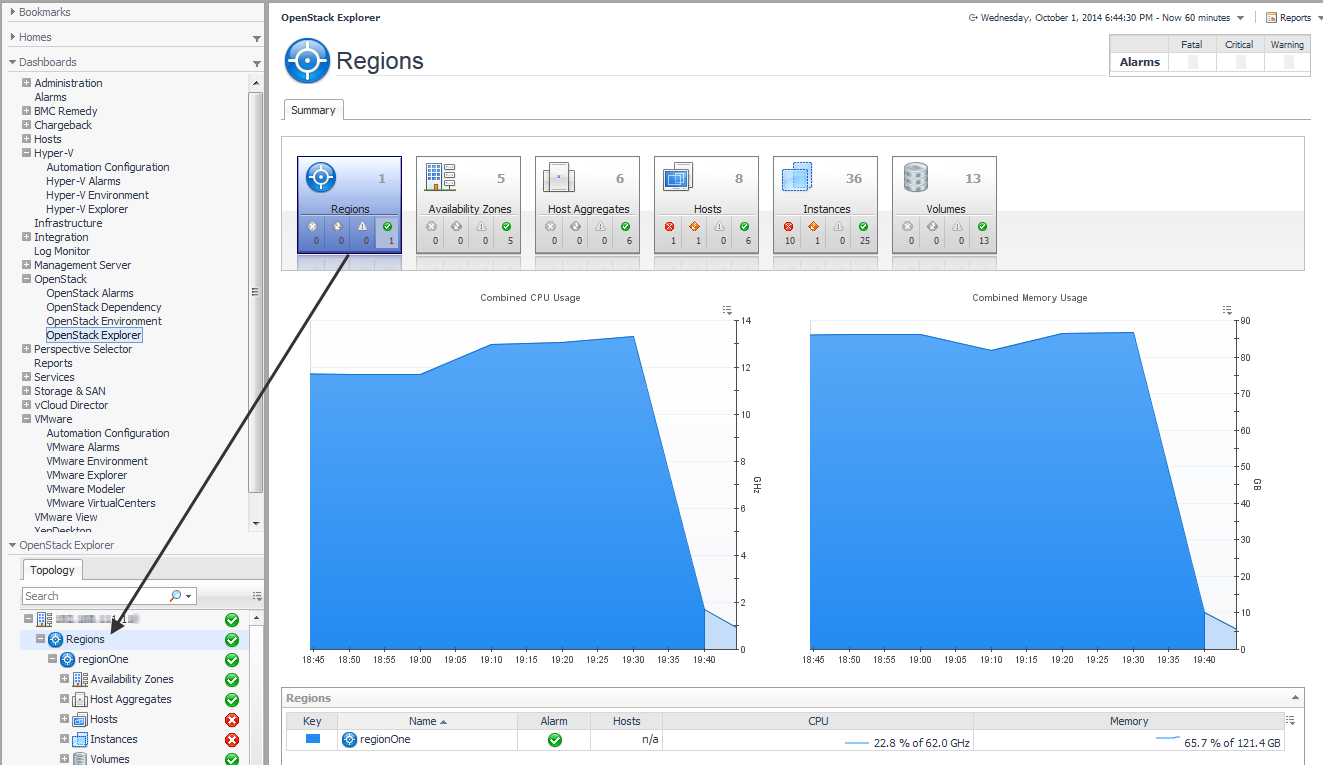

Figure 34. OpenStack Explorer: All Regions view
