Foglight for OpenStack 5.6.15 - User Guide

Using Foglight for OpenStack Interacting with Foglight for OpenStack dashboards Reference

Exploring Availability Zones

When you click the Availability Zones tile, a list of configured Availability Zones is displayed in the left frame. The default selection is All Availability Zones with the Summary — All Availability Zones frame displaying: Top CPU Consumers, Top Memory Consumers, Top Network Consumers, and Top Disk Consumers.
Selecting a particular Availability Zone in the left frame brings up an Availability Zone Summary in the main body of the Availability Zone Quick View. Displayed is a list of related items, a list of relevant alarms, and the CPU Utilization, Network Usage, Memory Utilization, and Disk Throughput for the chosen Availability Zone.
Click the Explore link on the upper right of the Quick View to view detailed information about the selected Availability Zone.
Clicking an object type in the Related Items view displays a list of related objects of that type along with their statuses.

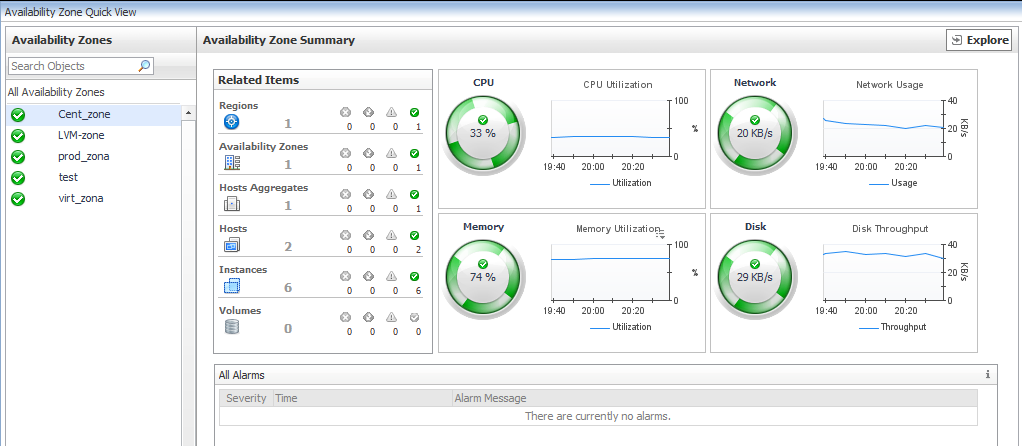

Figure 28. Availability Zone Quick View

Exploring Host Aggregates

When you click the Host Aggregates tile, a list of configured Host Aggregates is displayed, with the default selection being All Host Aggregates. The Summary — All Host Aggregates frame shows the trends for each Host Aggregate.
Select a Host Aggregate to see a Host Aggregate summary in the main body of the Quick View. The summary displays a list of related items, a list of relevant alarms, and charts for CPU Utilization, Network Usage, Memory Utilization, and Disk Throughput.
Click the Explore link in the upper right of the Quick View to view detailed information about the selected Host Aggregate.
Clicking an object type in the Related Items view displays a list of related objects of that type along with their statuses.

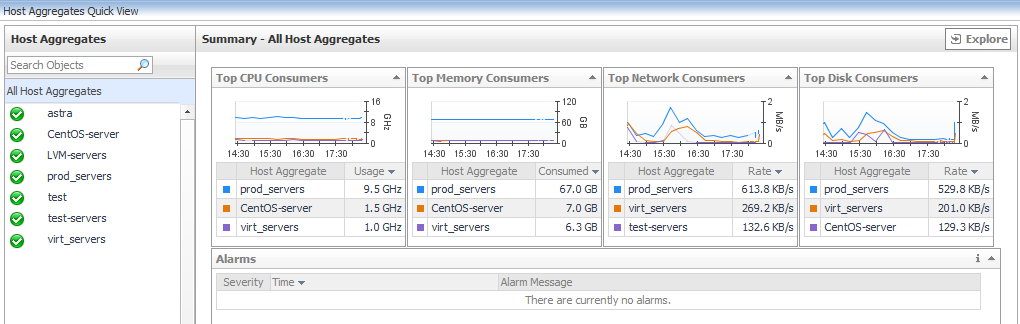

Figure 29. Host Aggregates Quick View

Exploring Hosts

When you click the Hosts tab, a list of all configured hosts is displayed with their status. The default selection being All Hosts. The Summary — All Hosts frame displays a list of relevant alarms and a summary of the top CPU consumers, top memory consumers, top network consumers, and top disk consumers.
Select a host to see a Host Summary in the main body of the Quick View. The summary displays a list of related items, a list of relevant alarms, and charts for CPU Utilization, Network Usage, Memory Utilization, and Disk Throughput.
Click the Explore link in the upper right of the Quick View to view detailed information about the selected Host.
Clicking an object type in the Related Items view displays a list of related objects of that type along with their statuses.

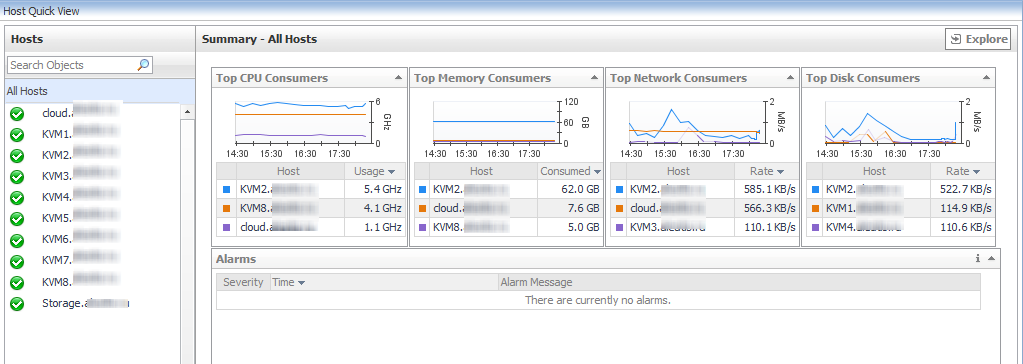

Figure 30. Host Quick View

Exploring Instances

When you click the Instances tab, a list of all Instances is displayed, with the default selection being All Instances. The Summary — All Instances frame displays a list of relevant alarms and a summary of the top CPU consumers, top memory consumers, top network consumers, and top disk consumers.
Select an Instance to see an Instance summary in the main body of the Quick View. The summary displays a list of related items, a list of relevant alarms, and charts for CPU Utilization, Network Usage, Memory Utilization, and Disk Throughput.
Click the Explore in the upper right of the Quick View to view detailed information about the selected Instance.
Clicking an object type in the Related Items view displays a list of related objects of that type along with their statuses.

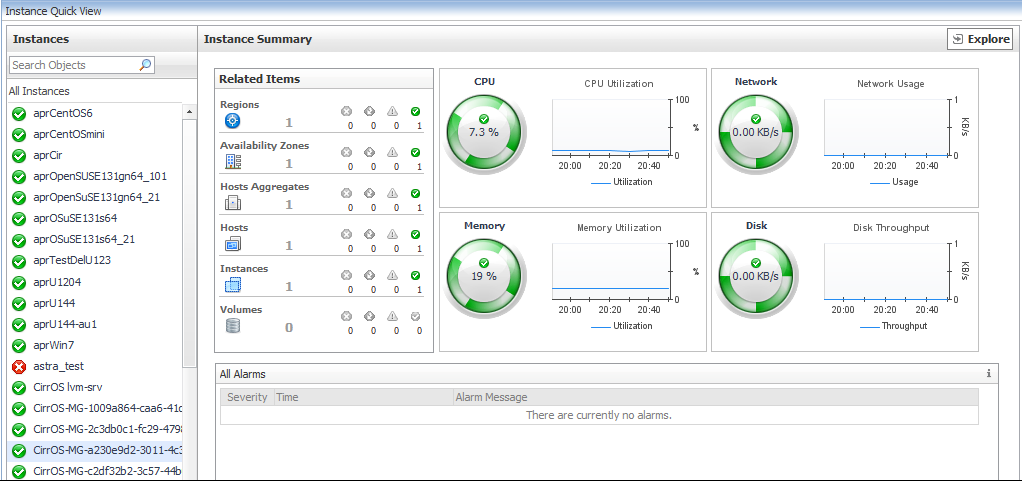

Figure 31. Instance Quick View
