Creating and adding a virtual standalone drive

You can use the configuration wizard to create a virtual standalone on the NetVault Server or a SmartClient. When creating the device, you can specify the size of the virtual tape. After the device is created, it is automatically added to the server.

1
In the Navigation pane, click Guided Configuration, and then on the NetVault Configuration Wizard page, click Add Storage Devices.
In the Navigation pane, click Manage Devices, and then click Add Device.
2
On the Add Storage Devices page, select the Single virtual disk device option, and click Next.
4
On the Add Single Virtual Disk Device page, provide the following details.

Choose the location on disk where you wish to create the new device

Specify the location where you want to create the device.

Make sure that the path is already created on the selected machine. NetVault does not create any non-existing directories in the path.

Choose a name for the device

Specify a unique name for the device.

Choose a 5 character media barcode prefix

The NetVault Server automatically generates a barcode prefix and assigns it to the virtual tape. If you want to change it, type a unique code for the device.

Specify the media capacity

Type or select the size of the virtual tape. The media size is specified in GiB. Make sure that sufficient space is available on the disk to create the virtual media. The default value is 32GiB.

5
Click Next to create and add the device.

Shared Virtual Tape Libraries

This section includes the following topics:

About Shared Virtual Tape Libraries

NetVault Shared Virtual Tape Libraries (SVTLs) extend the VTL implementation by allowing you to share a VTL with multiple NetVault machines for LAN-free backups.

SVTLs are supported on the following platforms:

The interface can be Fibre Channel, iSCSI, or SCSI. On Linux and Solaris platforms, SCSI_FCP protocol is also supported. The disks can be of any size. However, operating system-imposed limitations do apply. The SVTL size can be changed during runtime using CLI utilities.

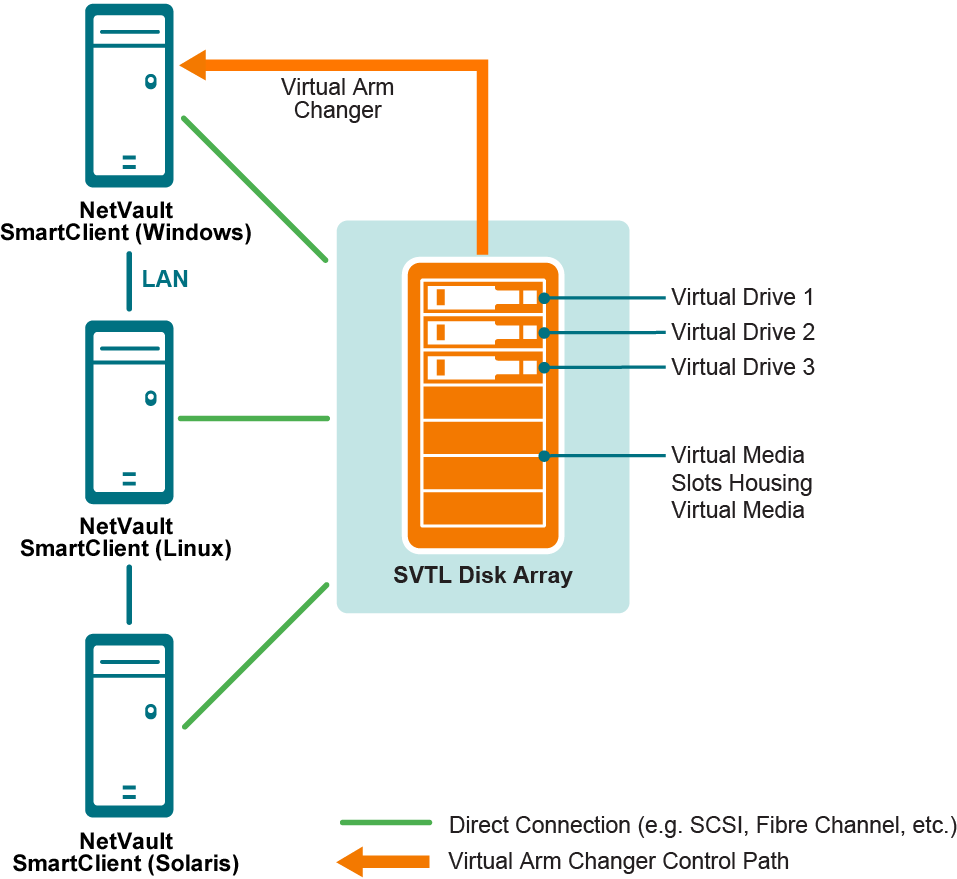

Figure 13. SVTL

SVTL considerations

Before setting up an SVTL, consider the following:
