Setting a favorite report

On View Reports page, you can select any report (s) to mark it as a favorite report to easily access it from the list of predefined reports.

To set a favorite report:
1
In the Navigation pane, click View Reports.
2
On the View Reports page, click the empty star next to the report in the first column that you want to favorite.

The favorite reports are displayed on top of the list in alphabetical order, followed by the remaining reports.

To remove a favorite from the reports list, click a filled-in star next to the report.

Setting filters for report

When you run a canned report that includes any filter conditions, the Set filters for report dialog box is displayed. You can set one or more conditions, based on which the reporting system generates the output. For each filter field that you want to use, you must select the filter operator and specify the comparison value. For example, the following Set filters for report dialog box is displayed for the report- Data Stored By Client.

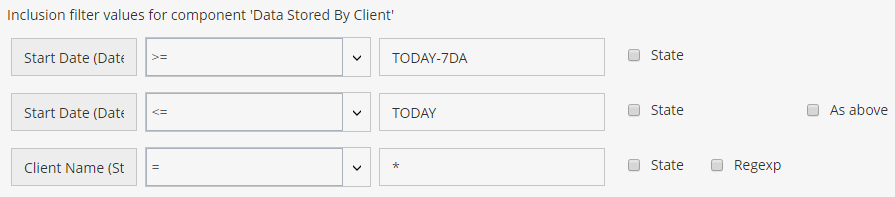

Figure 31. Set filters for report dialog box
To set report filters:
1
In the operator list corresponding to the filter field, select the comparison operator. You can use the following comparison operators: =, !=, >, <, >= or <=.
2
In the associated box, type the comparison value. The value must match the data type of the field.
Fields can be of the following types: date, integer, string, or time.
To specify date values, you can use the following formats:
•
YYYY/MM/DD
•
YYYYMMDD
•
Relative date: TODAY-n[time variable]
You can use the following time variables: YE = Year, MO = Month, WE = Week, DA = Date, HO = Hour, MI = Minute, and SE = Second
Example: TODAY-7DA
To specify time values, you can use the following formats:
•
HH:MM:SS
•
HHMMSS
•
Relative time: NOW-n[timevaribale] or TODAY-n[time variable]
You can use the following time variables: YE = Year, MO = Month, WE = Week, DA = Date, HO =
Hour, MI = Minute, and SE = Second.
Example: NOW-12HO
3
Some reports may also include the following filter options:
•
State: You can select this check box to compare the field state as opposed to the value it contains. The field state comparison option is designed for advanced users who have a good understanding of the NetVault reporting system.
You can set the field status to one of the following values:
•
Normal
•
N/A
•
Unknown
•
Never
•
Unlimited
For example, you can specify the state Unknown to find or exclude records that are not available in one of the tables.
•
Regexp: You can select this check box to match a regular expression instead of a constant value. The expression can contain text and wildcard characters.
•
As above: The As above check box is shown when the same filter field is applied to multiple report components. You can select this check box to use the same comparison value that is configured for the preceding field.
4
After setting the filters, click OK to close the dialog box.

Editing report job definitions

You can edit a report job definition to modify the report schedule or configure user‑defined events for the report. NetVault lets you distribute the generated reports by email or print the reports through the notification system.

*
IMPORTANT: Once the tenant administrator or tenant user modifies the required reports to configure user-defined events, MSP administrator must be informed to set the notification profile for this event for the respective user groups of the tenant.
To edit a report job:
1
In the Navigation pane, click View Reports.
2
On the View Reports page, select the report that you want to edit, and click Edit Report.
3
On the Edit Report Job Definition page, configure the following options.

Table 121. Edit report job definition
Option
Description

Schedule

This option is used to run the report immediately.

For scheduled events, make sure that you specify the user-defined event in the Report Completed Event and Report Failure Event field.

Report Completed Event

Specify the event that you want to raise when the job completes successfully.

Report Failure Event

Specify the event that you want to raise when the job fails.


*
NOTE: Report events are only raised if you specify a report schedule or use the Run & Notify method.
4
Click Save, and in the Save Report Job dialog box, click OK.
When you save the job, the configured events are added to the Report Job event class. MSP administrator must set the notification profile for the event for the respective user groups of the tenant, so that the tenant (tenant administrator or tenant user) can receive event notifications when the report is generated. For more information, see Using notification methods to send reports by email reports.

Using notification methods to send reports by email reports

You can configure user-defined events for a report job and receive notifications when a job completes successfully or fails. NetVault adds these events to the Report Job event class. You can use this feature to send reports by email.

Depending on whether you want to distribute the report by email the report, do the following:

•
To send the report to other users, set up the notification profiles for the users. For more information, see Setting up notification profile. By default, the report is generated in PDF file format and delivered as an email attachment.
