Set Colors for Attributes and Keys

To define different colors for attributes on your Workspace

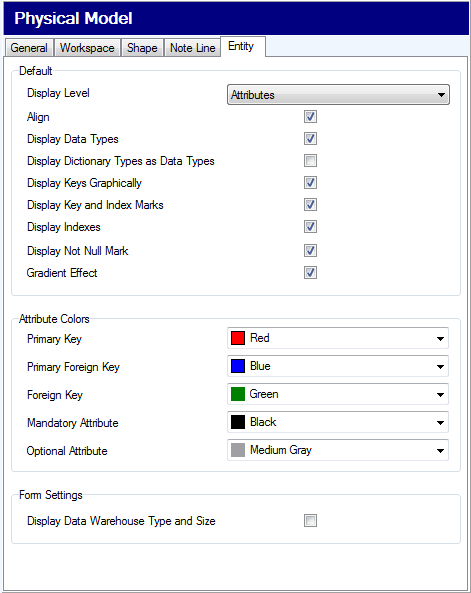

Select Settings | Options | Model section | Physical Model/Logical Model| Entity tab | Attribute Colors area.

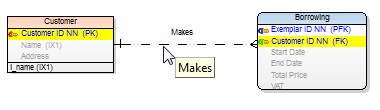

TIP: When you point your mouse cursor at a relationship line, parent and child attributes are highlighted on the Workspace. You can set the color at: Settings | Options | Graphics | Colors area | Highlight Color.

Grid and Grid Size

The Grid options are available directly from the toolbar or from the View menu.

To show grid and set a grid size

  1. Click to show grid.
  2. To change a grid size, click .
  3. To snap objects of your ERD to grid, click .

Zoom, Loupe, Overview

Toad Data Modeler allows you to move around your large models quickly and views various parts of a model in various zoom levels.

For this purpose, the following functions can be used:

  • Zoom (Zoom In, Zoom Out, Zoom Box)
  • Loupe (magnifier glass)
  • Overview (navigator)
  • Move

All these functions are available on Zoom Toolbar or in View and Windows menus.



Navigation Tips on Workspace

  • CTRL + scroll mouse to zoom in/zoom out
  • CTRL + Page Up/Page Down to zoom in/out
  • Scroll mouse to move up/down on the Workspace
  • SHIFT + scroll mouse to move right/left on the Workspace
  • Holding down the middle mouse button to move around the entire page/Workspace
  • Page Down, CTRL + down to move down
  • Page Up, CTRL + up to move up
  • CTRL + left to move left
  • CTRL + right to move right
  • Click on Zoom Toolbar to adjust the zoom level so the entire ER diagram fits on screen.

Objects on Workspace and keyboard arrows

  • Move objects on Workspace using keyboard arrows.

TIP: To set the move distance of one keypress, see Settings Menu | Options | Graphics | Move Objects by (mm/10) (in tenths of milimeters).

  • Select a shape on Workspace, hold down SHIFT and use the keyboard arrows to change size of the shape.
