Viewing log messages for a job

To view log messages for a job:
1
To view log messages for the latest instance, do the following:
a
In the Navigation pane, click Job Status.
b
In the list of jobs, select the job, and click View Logs.
2
To view log messages for previous instances, do the following:
a
In the Navigation pane, click Manage Job Definitions or Job History.
b
In the list of available job definitions, select the job, and click Manage Job.
c
On the Manage Job page, select the instance, and click View Logs.

Viewing and managing a job

The Manage Job page, which is accessible from the Job Status page, lets you view, edit, and remove an existing job, as well as create a new job.

To view and manage a job:
1
In the Navigation pane, click Job Status.
2
On the Job Status page, select the job you want to view, and then click Manage Job.
The Manage Job page opens.
If you selected a backup job, you can edit the backup job on this page.
If you selected a restore job, click Edit Job and make your changes on the Edit Restore Job page.
3
On the Manage Job page, you can view the following information:
•
Job Details: This area shows the following information: job name, job ID, job type (backup or restore), and name of the client.
•
Configuration: This area lets you create, edit, and view the protection sets. It shows the selections, the plug-in options, schedule, source storage, target storage, and advanced options. To make changes to any of these details, click the corresponding edit icon.
On the detail drawer for your selection, you can edit and save your changes or you can clone the existing set. If you clone the set, you must enter a new set name in the text box at the bottom of the drawer.

*
NOTE: You can use the Client links in the Job Details area to modify a set, however you cannot use these links to specify a new set for the job. To modify the job definition, see Editing job definitions.

To edit a backup job, you can understand more about the sets by previewing the set information. To preview the set summary, move the pointer over the information icons in the Job Details area on Manage Job page.

•
Recent Instances: This table lists the recent instances of the job. It shows the following information: Run time, duration, job size, instance ID, phase ID, and status (Succeeded, Failed, Aborted, and others).
4
To save your changes or submit the job for scheduling, click Save or click Save & Submit, respectively.
5
If a new name was provided, the Save Job dialog box is displayed. Select the applicable option in this dialog box:
•
Save changes creating a new job using the supplied name: Select this option to save the changes to a new job.
•
Save changes renaming this job to the supplied name: Select this option to rename the existing job.
6
Click OK.

Monitoring job progress

You can monitor the progress of a job from the Monitor Job page. The page displays the job status, data transfer rate, log messages, and other job details.

To monitor the progress of a backup or restore job:
1
In the Navigation pane, click Job Status.
2
In the list of jobs, select the job, and click Monitor.
3
On the Monitor Job page, you can view the following information:

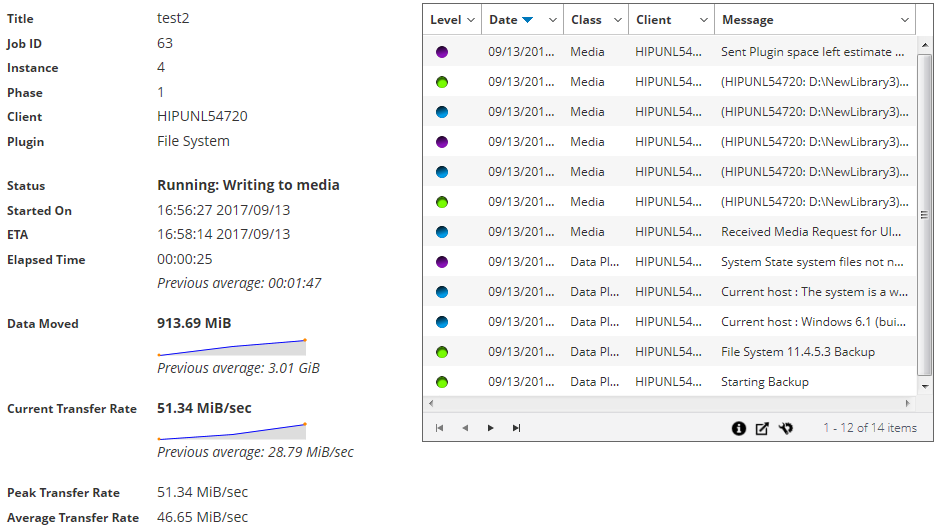

Figure 23. Monitor Job page

•
Job details: This area displays the following details: job title, job ID, instance ID, phase number, client name, plug-in name, status, start time, expected completion time, time elapsed, size of data moved and data transfer chart, current transfer rate and data transfer chart, peak transfer rate, and average transfer rate. The fields: waiting for device, elapsed transfer, estimated transfer remaining, and estimated time remaining are also displayed when running a job using Plug-in for NDMP. The fields: waiting for device and elapsed transfer are also displayed when running a job using Plug-in for SnapMirror to Tape. However, the field ‘expected completion time’ is not displayed when running a job using Plug-in for NDMP and Plug-in for SnapMirror to Tape.
•
Job logs: This area displays the log messages generated for the job. By default, the table is sorted by date and time. You can sort the table by one or more columns, as required. For more information, see Sorting records in NetVault Backup WebUI.
To view the page size setting, sorting order in the table, export the records, or edit table settings, click the icons at the lower- right corner of the table. For more information, see Customizing tables in NetVault Backup WebUI.
4
To view the job definition or abort the job, click the corresponding button in the Operations pane. Alternatively, click a link in the Navigation pane to open a different page.

Clearing job errors and warnings

To clear job errors or warnings:
1
In the Navigation pane, click Job Status.
2
Do one of the following:
•
To clear errors and warnings for all current jobs, set the view to “All activity,” and click Acknowledge.
•
To clear warnings for regular or policy jobs, click the “Warnings” bar in the Regular Jobs or Policies category, and click Acknowledge.
•
To clear errors for failed regular or policy jobs, click the “Errors” bar in the Regular Jobs or Policies category, and click Acknowledge.
•
To clear error or warning for a specific job, select the job in the table, and click Acknowledge.
