About NetVault Backup logs

About NetVault Backup logs

All NetVault Backup processes generate log messages to provide information about the status of various operations and report error conditions. These messages are stored in the NetVault Database. You can view the log messages from the View Logs page.

NetVault Backup uses the Logging Daemon to manage and write the log messages to the database. The Logging Daemon runs on the NetVault Backup Server.

Log messages contain information that can be used for diagnosing and troubleshooting problems. When you report a problem, Quest Technical Support might request you to provide the log dump file. You can use the Download or Export method available on the View Logs page to generate the log dump file. For more information, see Downloading logs or Exporting logs.


*
NOTE: NetVault Backup also provides diagnostic tracing capabilities to collect detailed information about error conditions. This information is used for debugging and troubleshooting purposes.

Unlike logging, tracing is disabled by default. When investigating a problem, Quest Technical Support may request you to enable tracing on the server or client machines.

Diagnostic information is written to trace files. Each process generates its own trace file. By default, trace files are stored in the trace-container directory under the NetVault Backup installation directory. For more information, see Diagnostic tracing.

Log messages that are older than 30 days are automatically purged from the database. You can use the configuration settings for Logging Daemon to change the maximum age for log messages. You can also manually delete the log messages by using the Purge Logs method available on the View Logs page.

Viewing log messages

You can view the log messages from the View Logs page. From this page, you can perform various log-related tasks, like download or export log messages, set log events, or purge log messages.

To view the log messages:
1
In the Navigation pane, click View Logs.
2
On the View Logs page, you can view the log messages generated by various processes.

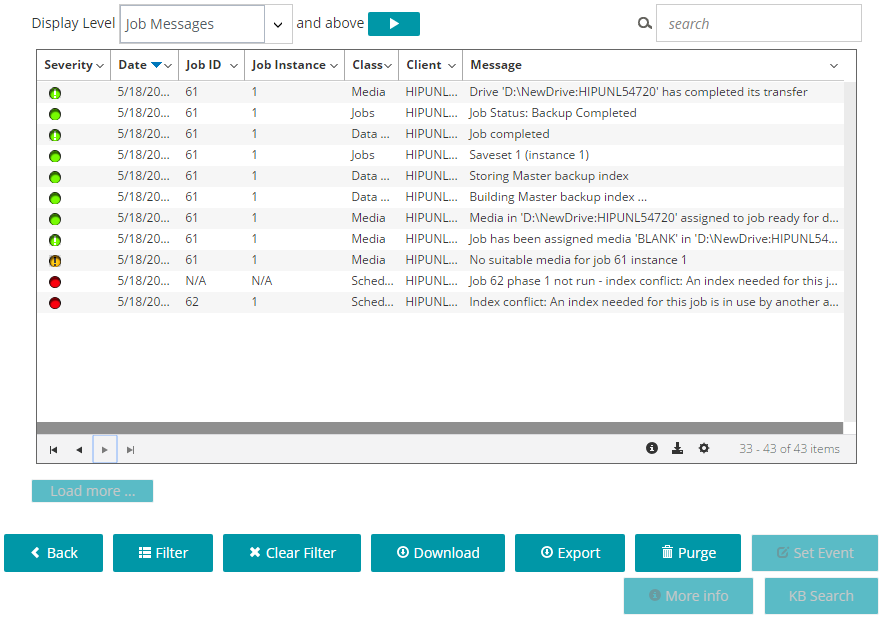

Figure 22. View Logs page

The table displays the following information:
•
Severity: Severity level of the message.
Log messages are classified into the following severity levels: Background messages, Information messages, Job messages, Warning messages, Error messages, and Severe error messages.
•
Date: Sate and time when the log was generated.
•
Job ID: Job identification number.
•
Class: Type of operation that generated the logs.
Log classes include the following: System, Schedule, Jobs, Media, Database, Plugins, and UI.
•
Client: Name of the client for which the log was generated.
•
Message: Detailed log message or description.
The following table provides a brief description of the log severity levels.
Table 52. Log severity levels

Icon
Severity level
Description

Background

General log messages.

Information

Log messages related to media, scheduler, and system activities.

Job message

Log messages related to backup, restore, and report jobs.

Warning

Problems that might not have caused a job to fail.

Error

Problems that might have caused a job to fail.

Severe error

Critical problems that might have caused an operation to fail.


*
NOTE: The icons for some log messages can contain an exclamation mark (for example, , , and others). This mark indicates that you can open the message to view the log context information.

To view the context information, click anywhere in the Severity column. Alternatively, select the message, and click More Info. The dialog box that appears can include data transfer details, execution scripts, or other information. After reviewing the details, click OK to close the dialog box.



Setting the 'Display Level' to a particular severity level shows log messages for the selected severity and higher.

3
By default, the table is sorted by Date (newest to oldest).
You can sort the table by one or more columns, as required. For more information, see Sorting records in NetVault Backup WebUI .
To view the page size setting, sorting order in the table, export the records, or edit table settings, click the icons at the lower- right corner of the table. For more information, see Customizing tables in NetVault Backup WebUI .
4
You can use the Search option to filter the table data and quickly find entries that contain the specified string in any column values. You can also include wildcards (“?” or “*”) in the search filter string.
5
You can use the Display Level option to filter the messages based on their severity level. When you specify the severity level, the messages at that level and higher are displayed on the View Logs page.
By default, Display Level is set to Job Messages. With this setting, you can view Job Messages, Warnings, Errors, and Severe errors on the page. To specify the minimum severity level for messages that are displayed, select the level in the Display Level list.
6
The View Logs page loads a maximum of 10,000 records initially. The total number of records fetched is displayed at the lower-right corner of the table.
You can click Load more to load the next set of records, if available. Each load action fetches a maximum of 10,000 records. This button is disabled if there are no more records to load.
7
To stop or resume live updates, click the Pause or Resume Live Updates button.
8
To quickly locate records containing specific field values or text, you can use the Search box at the upper-right corner of the table. The data in the table is filtered as you type the search text into the box.
9
To perform a log-related task, click the corresponding button in the Operations pane. Alternatively, click a link in the Navigation pane to open a different page.

Setting log filter

When viewing log messages, you can use one or more filters to display messages that match the specified criteria.

To set log filters:
1
In the Navigation pane, click View Logs.
2
On the View Logs page, click Filter.
3
In the Set Log Filter dialog box, configure the options that you want to use.
Figure 23. Set Log Filter dialog box
Table 53. Log filter options

Filter option
Description

From

Select one of the following options:

•
First Event: To display from the first log message, select this option.
•
Specific Time: To display from a specific date and time, select this option, and do the following:
- Type the start date, or click the button next to the box, and select the start date.
- Type the start time, or click the button next to the box, and select the start time.

To

Select one of the following options:

•
Last Event: To display up to the last log message, select this option.
•
Specific Time: To display up to a specific date and time, select this option, and do the following:
- Type the start date, or click the button next to the box, and select the start date.
- Type the start time, or click the button next to the box, and select the start time.

Classes

The log classes included the following:

•
System
•
Schedule
•
Jobs
•
Media
•
Devices
•
Database
•
Plugins
•
UI

By default, all log classes are selected.

To hide log messages for a class, clear the corresponding check box.

Only display logs for Job ID

To display logs for a particular job, type the job ID number.

Only display logs for Instance

To display logs for a particular job, type the instance ID number.

Only display logs containing text

To display logs that contain a particular string, type the filter string.

4
Click Filter to set the filter, and close the dialog box.
5
To clear the filter settings, click Clear Filter on the View Logs page.
