Export/Import

Microsoft Excel

Toad Data Modeler allows you to export metadata to Microsoft Excel. Comments, notes and other properties can be modified and the file can be then imported back into Toad Data Modeler.

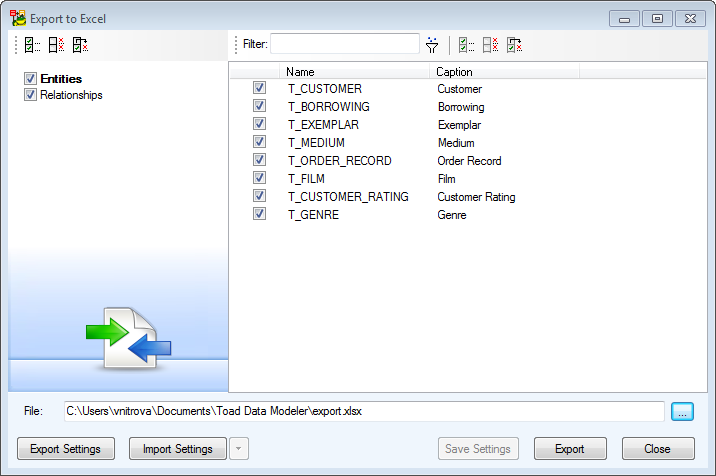

To export your model to a Microsoft Excel document

  1. Select File Menu | Export | Export to Excel.
  2. Select the entities and relationships you want to export.
  3. Click Export. A new Microsoft Excel document will be created in the specified destination.

To import the data back from a Microsoft Excel document

  1. Select File Menu | Import | Import from Excel.
  2. Locate the Excel document and click Open.
  3. Select which tables and relationships should be imported.

  4. Click Import. The existing model will be updated to reflect the changes made in the Excel document.

The following table illustrates the modified properties:

Modification Property type

Properties

Unlocked String

Alias

Where

Having

SQL

Comment

Note

BeforeS

AfterS

Boolean GenerateSQLOnly

SelectViewsInText

Locked List

Attributes

From

Order

Group

NOTE: Aliases of entities and attributes are in columns “From” or “Attributes” in a format: “Object AS alias” in an exported file

Export/Import CSV

Toad Data Modeler allows you to export metadata to a CSV file. Comments, notes and other properties can be modified and the the file can be then imported back into Toad Data Modeler.

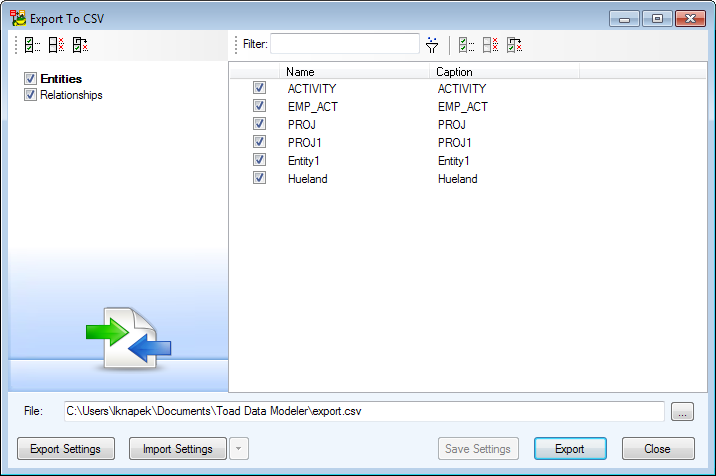

To export your model to a CSV file

  1. Select File | Export | Export to CSV.
  2. Select the entities and relationships you want to export.
  3. Click Export. A new CSV file will be created in the specified destination.

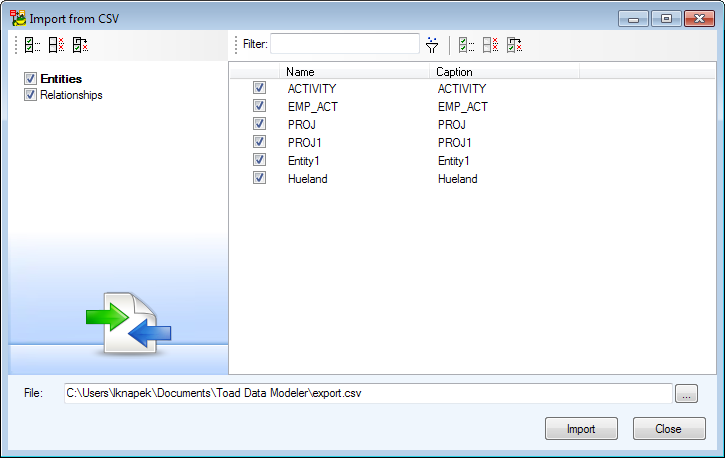

To import the data from a CSV file

  1. Select File Menu | Import | Import from Excel.
  2. Locate the CSV file and click Open.
  3. Select which tables and relationships should be imported.

  4. Click Import. The existing model will be updated to reflect the changes made in the CSV file.

Export to Image

In Toad Data Modeler, you can export your ER diagram into the following graphical formats:

  • BMP
  • JPEG
  • PNG
  • SVG

To export your ER diagram to a graphic file

  1. Select File Menu| Export | Export to Image.
  2. Define options on Settings tab.
Option Description

File Type

Choose one of the available formats.

Color

When not enabled, the image will be black and white only.

Pages

Creates an image for each page on workspace. (Not available for SVG)

Paint Frame of Pages

Displays page boundaries. (Not available for SVG)

Scale

Size of the output in percentage scale (Initial value is 100 per cent.)

Width

Changes automatically according to the set percentage scale.

Height

Changes automatically according to the set percentage scale.

Margin

Set Margin for the exported graphics.

TIP: Measurement units can be changes in Settings Menu | Options | General.

Destination File

The output image destination path.

Open Folder After Export When checked, the destination folder is opened once the export is finished.
  1. Define other settings specific to the selected graphical format on other tabs.

NOTE: Images of large models are generated as multiple smaller ones joined together in a html file.

Export to Image Limitations

Please note that there is a limit to the site of the exported images imposed by Windows interface. The maximum size depends on chosen Pixel Format, for 32-bit, the size limit is about 12500x10000 px. The lower the Pixel Format, the larger image you are able to export. This limitation affects all image formats.
