Replicator Data Folders

The Replicator Data Folders section allows users to specify local folders that Replicator will use to store Package information. Please note that changing the location of the Replicator data folders affects replication for any inbound and outbound packages that have not completed processing. If you have active packages in the data folder and change the folder location, then you must also copy any existing packages from the old folder to the new one.

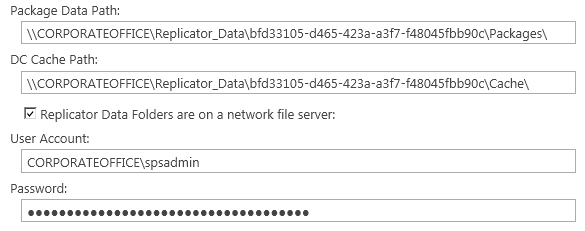

RefMETALO~3_img23

Note: If UAC is enabled on the Central Administration server or any of the web front-end servers for this farm, then you may need to manually perform additional tasks to configure the front-end servers when you modify the Replicator Data Folders. For more information, see Configuring Metalogix Replicator in UAC-enabled Environments for further instructions.

Package Data Path

Replicator uses the package data path to store both outbound and inbound packages intended for replication.

The default path was specified when Replicator was originally installed and configured. If you want to specify a different path, then change this value.

DC Cache Path

The cache path is the location that Replicator uses to store cache information for Differencing Compression (DC).

The default is set during installation and configuration of Replicator. If another location is required, enter it here.

Replicator Data Folders are on a Network File Server

The Replicator Data Folders must be accessible by all web front-end servers that serve this web application. When there are multiple web front-end servers, then the data folders must be specified as a UNC path. If you have specified data folders as UNC paths, then select Replicator Data Folders are on a Network File Server and enter the credentials for an account that has permission to read from and write to the folders.
