Guidelines for Creating Bar Graphs

The following guidelines apply when creating bar graphs and stacked bar graphs using the Graph Wizard.

To plot a bar graph, you must, at a minimum, select fields for the following:

•
One data value and one category label
- OR -
•
Two or more data values
General Rules for Bar Graphs

The following are general rules that apply when you create a bar graph:

•
Fields selected as category labels are used to label the bars on the vertical axis.
•
Fields selected as series labels are used to determine the color of the bar and the caption in the graph.
•
Data values determine the size of a particular bar. The fields that you select should reflect statistical values.
•
You can select one data value and one series label, or you can select two or more data values. However, you cannot select multiple data values and a series label.
Examples of Valid Axis Selections for Bar Graphs

In the first three examples, the selected data source is Servers - Server Activity Totals. In the fourth example, the data source is Storage - Exchange Database Summary.


Table 6. Examples of valid selections for bar charts.
Axis Selection
Results


One data value

One category label

The values of field selected for the category label is used to label each bar in the bar graph.

In this example, the following data source and fields (values) were used:

Datasource:
Servers - Server Activity Totals

Data Values:
External User Messages Received

Category Labels:
Region

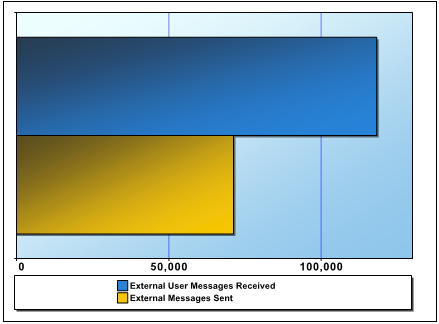

Two or more data values

Each field selected provides data for a bar.

In this example, the following data source and fields (values) were used:

Datasource:
Servers - Server Activity Totals

Data Values:
External User Messages Received

External Messages Sent

Two or more data values

One or more category labels

The fields selected as the category labels are used to categorize the values on the vertical axis.

Each category has a bar for each data value. The legend title contains the field display-name.

In this example, the following data source and fields (values) were used:

Datasource:
Servers - Server Activity Totals

Data Values:
External User Messages Received

External Messages Sent

Category Labels:
Region

One data value

One category label

One series label

The value of the category label determines the groups of bars. The value of the series label determines the color of the bar, and the legend label.

The following data source and fields (values) were used:

Datasource:
Storage - Exchange Database Summary

Data Values:
Database Size (MB)

Category Labels:
Region

Series Labels:
Database Type

All the blue bars are mailbox databases, and yellow are public folder databases.

Guidelines for Creating Pie Charts

The following guidelines apply when creating pie charts and multi-pie charts using the Graph Wizard.

To create a pie chart, you must, at a minimum, select fields for the following:

•
One data value and one category label
- OR -
Two or more data values
General Rules for Pie Charts

The following are general rules that apply when you create a pie chart:

•
Data values determine the relative size of wedges in each pie.
•
Fields selected as series labels determine the color of the pie wedge, and what information is displayed in the legend of the pie chart.
•
You can display multiple pies within a pie chart by selecting a Multi-Pie Selection field, or by selecting two or more data values and at least one series label. The values of the Multi-Pie Selection field determine to which pie a particular data value belongs.
Examples of Valid Axis Selections for Pie Charts

In the first three examples of pie charts, the selected data source is Mailboxes - Mailbox Activity Details. In the fourth example, the data source is Storage - Exchange Database Summary.


Table 7. Examples of valid selections for pie charts.
Axis Selection
Results


Two or more data values

Each field provides data for a pie wedge.

The value of the data labels determine the color of the wedge, and the legend label.

The following data source and fields (values) were used:

Datasource:
Mailboxes - Mailbox Activity Details

Data Values:
Messages Sent

Messages Received

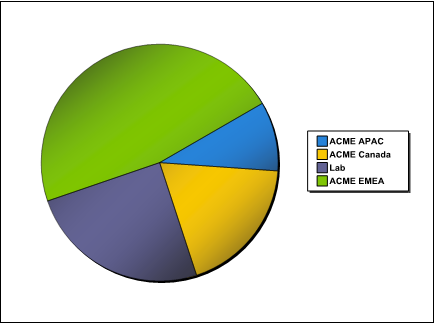

One data value

One series label

The value of the series label is used to associate data values with a particular pie wedge. There is one pie wedge for each series value.

The following data source and fields (values) were used:

Datasource:
Mailboxes - Mailbox Activity Details

Data Values:
Messages Sent

Series Labels:
Region

Two or more data values

One series label

The value of the series label is used to associate values with a particular pie wedge. There is one pie for each data value.

The following data source and fields (values) were used:

Datasource:
Mailboxes - Mailbox Activity Details

Data Values:
Messages Sent

Messages Received

Series Labels:
Region

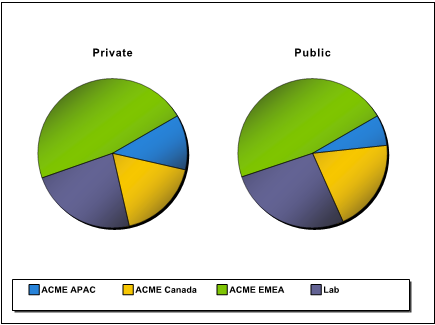

One data value

One series label

One Multi-Pie Select field

The values of the Multi-Pie Select field determine on which pie to plot the values. The value of the series label determines with which pie wedge the data values are associated.

In this example, the following data source and fields (values) were used:

Datasource:
Storage - Exchange Database Summary

Data Values:
Database Size (MB)

Series Labels:
Region

Multi-Pie Select:
Database Type

Guidelines for Creating XY Graphs

The following guidelines apply when creating XY graphs and XY stacked area graphs using the Graph Wizard.

To generate an XY or stacked area graph, you must, at a minimum, select fields for the following:

•
one X-axis (horizontal) value
•
one Y-axis (vertical) value
General Rules for XY Graphs

The following are general rules that apply when you create a XY graph:

•
The X and Y values determine successive points on a line.
•
In most cases, the X-axis value is a date or time field.
•
The series label values determine with which line the point is associated.
Examples of Valid Axis Selections for XY Graphs

In the XY graph examples, the data source is Mailboxes - Mailbox Activity Details.


Table 8. Examples of valid selections for XY graphs.
Axis Selection
Results


One X-axis value

One Y-axis value

The X-Y data points plot successive points on a line.

The following data source and fields (values) were used:

Datasource:
Mailboxes - Mailbox Activity Details

X-axis Values:
Date

Y-axis Values:
Messages Sent

(The data is filtered for last month.)

One X-axis value

Two or more Y-axis values

Each Y-axis value is plotted on a separate line, against the supplied X-axis value.

The following data source and fields (values) were used:

Datasource:
Mailboxes - Mailbox Activity Details

X-axis Values:
Date

Y-axis Values:
Messages Sent

Messages Received

(The data is filtered for last month.)

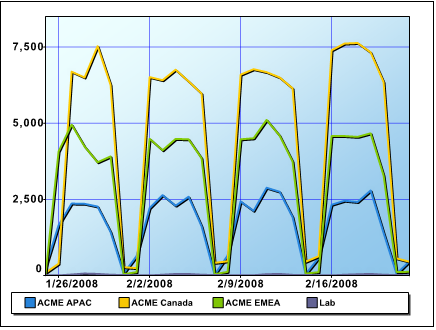

One X-axis value

One Y-axis value

One series label

The X-Y values are plotted as lines.

The value of the series label determines with which line a point is associated.

The following data source and fields (values) were used:

Datasource:
Mailboxes - Mailbox Activity Details

X-axis Values:
Date

Y-axis Values:
Messages Sent

Series Labels:
Region

(The data is filtered for last month.)

Editing Reports

You can modify both the configured MessageStats Reports and any custom reports that you create using edit and grouping functionality. You can edit reports in the following ways:

•
Using the Edit button on the report listview
•
Selecting filters before rendering a report
•
Using the Quick Filter Bar at the bottom of the report
•
Using Save Report Settings to retain the filters, sort and grouping options, and any other modifications that you have made to a report, to facilitate the creation of subsequent reports with the same settings.
•
Using the column headers on the reports to change grouping and sorting options
•
Using the Edit menu on the toolbar to launch the MessageStats Reports Wizard

The following table describes the extent of editing for each type:


Table 9. Editing Options for Reports.
Type
Description

Edit Button

Allows you to copy the report to a different destination folder, move the report to a different location, rename or delete the report, or edit the report description.

Filters

Allows you to restrict the report content to specific information before the report is rendered.

Quick Filter Bar

Allows you to change filter options and regenerate the report.

For more information, see Using Quick Filters .

Column Header

Allows you to add or remove fields in the report, and change group and sort options. For more information, see Changing Grouping OptionsChanging Grouping Options .

Edit Menu

Opens the Web Report Wizard to allow you to customize or modify an existing report.
