StoragePoint 6.3 - IBM Tivoli Adapter Guide

Tivoli Adapter Configuration

This section will provide you details on how to configure a storage endpoint’s connection string to utilize the IBMTivoli Adapter. Please refer to the StoragePoint Reference Guide for information on managing Storage Endpoints.


On the ApplicationManagement page, click Storage and Backup Endpoints.


Click Create New Endpoint or click the name of an existing storage endpoint that you want to edit.



Tivoli Connection String Parameters



Enter the unique name of the Storage or Backup Endpoint.

Primary – this endpoint will be available for externalization when creating storage profiles.

Backup – this endpoint will be in the Backup Services dropdown on the profile page.

The selection is locked down when saving.

See Backup Services Settings in the Reference Guide for more information on how Backup Endpoints are used.


Online – Storage Endpoint should be available to associate to a Storage Profile and accept BLOBs. (default)

Offline (Read Only) – A storage endpoint can be configured, but not made available for externalizing content. The BLOBs already on the endpoint are still read only.

Select the adapter for the endpoint that is being created.

IP or DNS name chosen at the time the storage solution was provisioned which represents the Tivoli client access point.  The Metalogix Tivoli Client uses port 8190. This port needs to be opened (inbound rule on the client machine) to communicate with SharePoint.

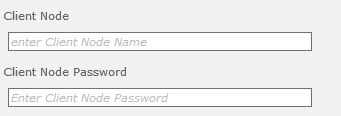

Enter the connection information for accessing the Tivoli node.

If the endpoint is on a WORM (Write Once, Read Many) device, Unused BLOB Cleanup will ignore this endpoint.

No – Externalized content BLOBs are not placed in folders (default).

Yes – Externalized content BLOBs are placed in folders.

If Folder Content in BLOB Store is Yes then you can select a date/time folder scheme from the dropdown.

YYYY/MM/DD/HH/MM is the default.

The Test Storage Settings button can be used at this point, or after completing the endpoint configuration, to verify that the endpoint is accessible.

No – Externalized content BLOBs are not compressed (default).

None – Encryption will not be applied to externalized BLOBs (default).

AES (128 bit) – 128 bit AES encryption will be applied to externalized BLOBs.

AES (256 bit) – 256 bit AES encryption will be applied to externalized BLOBs.

Enter a passphrase to use when generating the encryption key. Using a passphrase will help you re-create the encryption key if necessary. You can generate a random key by leaving the box blank and clicking the Generate Key button. The encryption key passphrase will be hidden.

A warning email can be sent if it encounters errors.

An online storage endpoint can be automatically taken offline if it encounters errors. If a storage endpoint is taken offline automatically, BLOBs that were intended to be written to that endpoint will go to the content database.

Default email addresses for system error and offline notification can be entered. Check the box to include the list of Default Notification Contacts specified on the General Settings page.

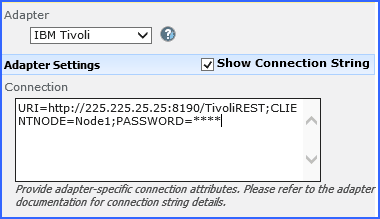

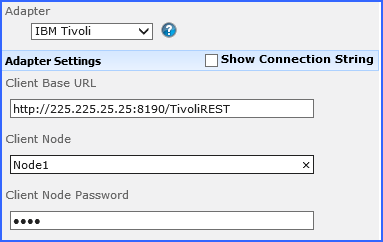

Example Storage Endpoint Using Tivoli

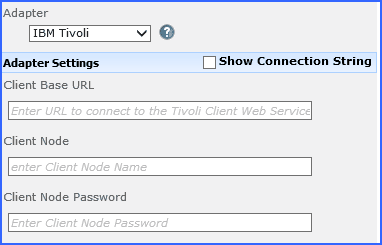

Click the Show Connection String checkbox to edit the connection string. Otherwise, fill in the connection fields shown for the adapter selected. Notice that the connection string parameters are name/value pairs separated by semi-colons when editing using the Show Connection String option.


NOTE: Adapter parameters are not case-sensitive.


NOTE: You should always use a passphrase when generating encryption keys. The passphrase gives you a means of re-creating keys should they become unrecoverable or corrupt. It is very important to remember or record the passphrase outside of Metalogix StoragePoint. Otherwise, encrypted content could become irretrievable in the event of a database failure.

If you choose to externalize content you should test the storage profile settings by clicking the Test Storage Settings button. A message under the button will indicate whether or not the test was successful. If the test fails the message will include the error that was the root cause of the failure.


NOTE: When testing access to an endpoint from within Central Administration, the Identity of the Application Pool hosting the Central Administration Site is the one that is being used for the test. If there are different Identities used for other Web Applications in the Farm then those identities will also need access but cannot be tested from within Central Admin itself. See BLOB Store Security and Metalogix StoragePoint Required Privileges in the Metalogix StoragePoint Reference Guide.

Installing the Metalogix Tivoli Client

Installing the Metalogix Tivoli Client is critical for communication with the Tivoli node.


NOTE: There is a minimum version requirement of .NET 4.0 to install the Metalogix Tivoli Client.


NOTE: If this is an upgrade, the old client must be uninstalled before continuing with the install.

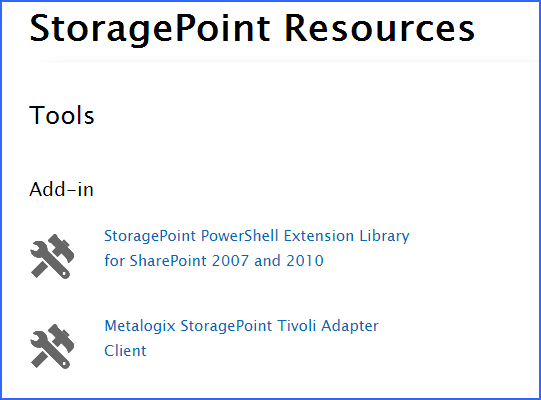

1.Download the Metalogix StoragePoint Tivoli Adapter Client from the Metalogix website, and copy it to the Tivoli Client machine.

2.On the Tivoli client, unzip the file, and double click the executable.

3.When the App Setup window opens, click Next.

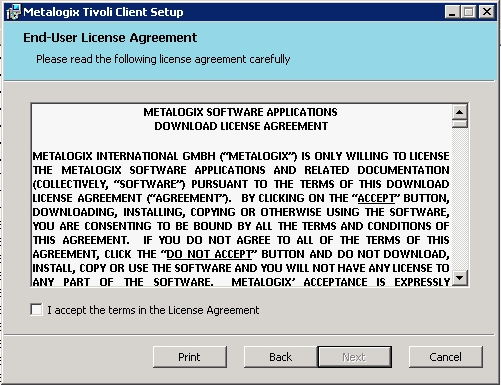

4.Click the checkbox, and click Next.

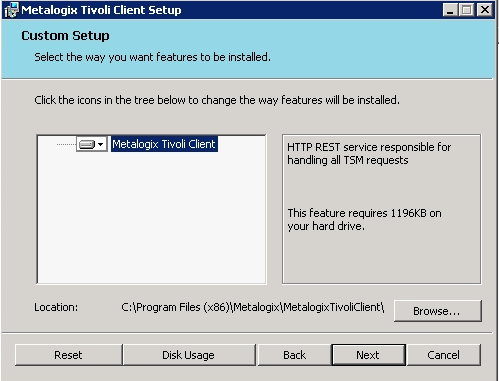

5.Click Next, or browse to a different location to install the service.

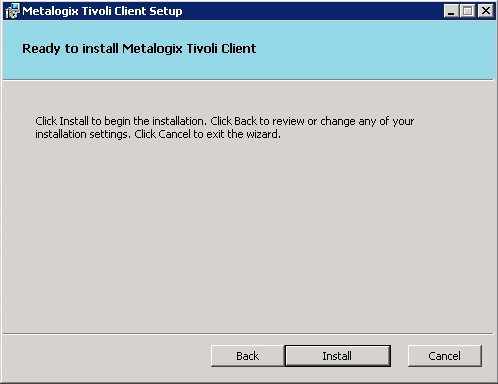

6.Click Install.

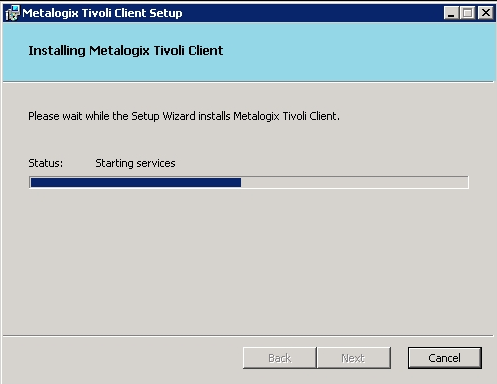

7.The window will refresh to show the progress.

8.Click Finish.


Open the services admin tool and make sure Metalogix Tivoli Client is running.
