SQL Collector Window

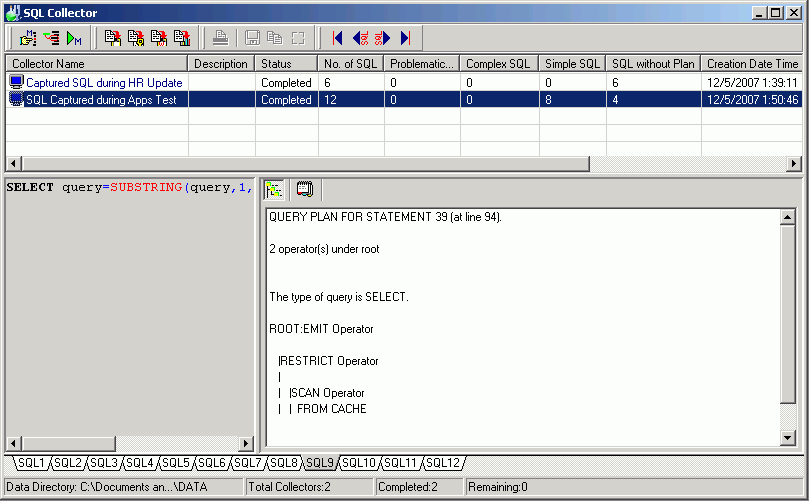

The SQL Collector window consists of the toolbar, Job List pane, the SQL Text pane, the SQL Information pane and status bar.

Collector List

The Collector List pane in the SQL Collector window stores information on each Collector. Information includes:

Item Description

Collector Name

The unique Collector name defined by the user.

Description

Description of the Collector defined by the user.

Status

The current status of the Collector. This column will remain blank until the monitoring process has started.

Number of SQL

Total number of SQL statements collected

Problematic SQL

Number of Problematic SQL statements collected.

Complex SQL

Number of Complex SQL statements collected.

Simple SQL

Number of Simple SQL statements collected.

SQL without Plan

Number of SQL statements collected without a query plan.

Creation Date Time

Date and time of when the Collector was created.

Start Time

Start time of when the monitoring process starts.

End Time

End time of when the monitoring process ends.

Server Name

Monitor Server name.

Note: The definitions of Problematic, Complex, and Simple SQL statements are provided in the SQL Collector Criteria tab of the Add Collector wizard.

SQL Text

The SQL Text pane displays the monitored SQL statements for a particular Collector. The layout of the SQL statement is unformatted and displayed according to how it is retrieved from the Adaptive Server Enterprise Monitor Server. SQL statements captured from the Monitor Server may consist of transact-SQL and stored procedures. Therefore to identify the SQL statements that you may want to optimize, you should use the SQL Scanner to identify the SELECT, UPDATE, INSERT and DELETE SQL statements that are contained with the stored procedures or transact-SQL .

SQL Information

If the query plan is retrieved for the monitored SQL statement the query plan and other details will be displayed in the SQL Information Pane

Status Bar

The status bar at the bottom of the SQL Collector window shows the following details:

Item Description

Data Directory

Path showing where all the data files produced during monitoring are saved. While monitoring, a progress bar displays to show the monitoring progress.

Total Collectors

Total number of Collectors.

Completed

Total number of Collectors already monitored.

Remaining

Total number of Collectors that have not been monitored.

Note: The SQL Collector window must remain open during the monitoring process. If you have started the monitoring process, but the scheduled time has not arrived, this window must remain open for the monitoring process to start and run to completion.



Related Topics

Open SQL Collector for Monitor Server

To display the SQL Collector window

Click image\B_SQLMonitor.gif.



Related Topics

Add or Modify a Collector

Add or Modify a Collector

To add a Collector to the SQL Collector window

Click image\B_AddCollector.gif to display the Add Collectors wizard.

To modify a Collector

  1. Highlight the Collector row.

  2. Click image\B_ModifyCollector.gif.

Note: If you have already monitored the Collector, by modifying the Collector criteria you will erase any existing information.
