Managing storage devices

•
Monitoring device activity
•
Managing disk-based storage devices in list view
•
Managing disk-based storage devices in tree view
•
Managing the Snapshot Array Manager
•
Managing tape libraries in list view
•
Managing tape libraries in tree view
•
Managing tape drives in list view
•
Managing tape drives in tree view
•
Adding shared devices

Role-based access to manage storage devices


Table 79. Role-based access to storage device management
Storage device management
MSP administrator
Tenant administrator
Tenant user

Device Activity

X





Manage Device - List View

X

X



Manage Device - Tree View

X





Manage Snapshot Array Manager

X

X



Manage Tape Libraries

X





Manage RAS Devices

X





Monitoring device activity

You can use the Device Activity page to monitor data flows and data transfer rates for devices that are in use.

To view device activity:
1
In the Navigation pane, click Device Activity.
2
On the Device Activity page, you can view the following information.

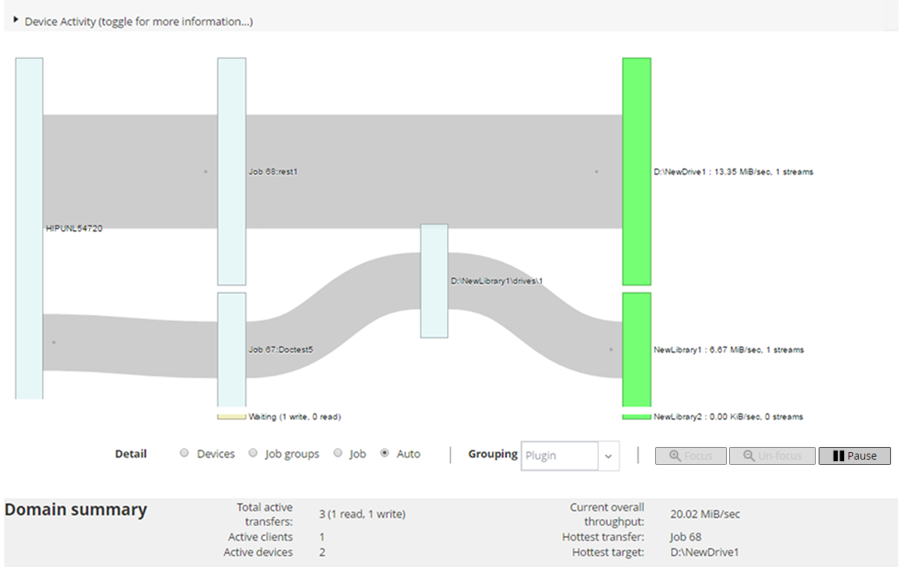

Figure 27. Device Activity page

Table 80. Device Activity page
Item
Description

Device activity

This area shows data transfers from clients to jobs on the left and jobs to storage devices on the right. Gray lines depict data flow; the thicker the line, the higher the rate of flow. Boxes represent clients, jobs, and devices; the taller the box, the higher the rate of flow.

You can use the following settings available in the Detail area to modify the data flow view:

•
Devices: Select this option to view data transfers from all jobs to a storage device.
•
Job groups: Select this option to view data transfers from a job group (plug-in or policy) to a storage device. The job group can be selected in the Grouping list.
•
Job: Select this option to view data transfers from client to jobs and from jobs to storage devices.
•
Focus and Un-focus: Use these buttons to show and hide data flow details for a specific device. Click the device box, and click Focus. To hide the details for that device, click Un-focus.
•
Pause and Play: Use these buttons to pause and resume data flow updates. To stop data flow updates, click Pause, and to resume updates, click Play.

The transfer rate shows “unknown” for backups running on older NetVault Clients.

Summary

This area shows the following information: total active transfers, active clients, active devices, current overall throughput, hottest transfer, and hottest target.

You can click a box representing the client, job, or storage device in the Device Activity area to view information about that component.

3
To perform a job-related task, click the corresponding button in the Operations pane. Alternatively, click a link in the Navigation pane to open a different page.

On the Manage Devices page, you can view the list of storage devices as a List View or Tree View. Select Remember this selection to save your choice. By default, List View is selected.

Managing disk-based storage devices in list view

This section includes the following topics:

•
Viewing disk device details
•
Managing a Quest DR Series system, QoreStor, or Data Domain system
•
Checking the status of a disk-based storage device
•
Changing the status of a disk-based storage device
•
Scanning a disk-based storage device
•
Removing all savesets from a disk-based storage device
•
Removing a disk-based storage device
