Running DT on Event

Running DT on Event

Running an Adapter on Event

Running an Adapter on Event

In a real life environment, it could be important to acquire external data on a scheduled basis, or in an “on event” mode; in particular, when a DB Adapter is used for reading the information from a database. It’s quite easy to implement, for example, a stored procedure that drops a text file, containing the trigger information for DT to start a given adapter.

The trigger file can be detected by DT if dropped in a given folder:

any of the DT adapter folders (including the specific adapter, but not mandatory)

the folder “C:\ProgramData\erwin\Data Transformation\workflows

The described triggering feature applies to any other adapter type.

The trigger files must be compliant with the naming convention:


and the sample content describing the schema is detailed below (see next paragraph for <PARAMETERS> tag):

Please note that you could even choose whether to execute all the (active) workflows defined against that adapter as source, or a sub list of your choice:




<?xml version="1.0" encoding="UTF-8"?>



          <PARAMETER name="APP_ID_LIST" value="2,5,20"/>



          <DELAY HH="0" MIN="0" SEC="30" />

          <WORKFLOWS all="false">


<DELAY SEC="0" MIN="0" HH="0"/>





Running a DB Adapter on Event with Parameters

Running a DB Adapter on Event with Parameters


When configuring and using a trigger file for executing a DB adapter on event, it is possible to add parameters to drive the query resultset through them.

Let’s suppose that you want to configure a DB Query Adapter, which is named “MY ADAPTER” and extract detail of just the Applications that have been updated / inserted in a table named “MY_TABLE”. The Applications are selected, based on their ID.

The SQL query to do this would look like:

SELECT * from MY_TABLE where APPLICATION_ID in (131, 156, 653)

When triggering DT on event, you may want this adapter to just process applications that were updated or inserted in the DB table. The IDs of the updated / inserted Applications can be obtained and passed to the adapter using parameters in the SQL query. e.g.


<%APP_ID_LIST%> in the SQL query is the parameter name to obtain the name of the parameter in the XML trigger file.

Please note the required syntax for DT: parameter names must be provided enclosed by the prefix “<%” and suffix “%>”, like: <%PARAM_NAME%>.


The values of the parameter must be written in the XML trigger file each time that the SQL Trigger executes on the Table where the Application detail will be updated / inserted.

The XML trigger file must contain the following:


      <PARAMETER name="APP_ID_LIST" value="345, 436"/>


The parameter name is hard coded into the SQL Trigger, and the values are the IDs of the changed Applications which is written directly into the xml trigger file by the SQL Trigger. These values can be different, each time that the database trigger is executed.

When the DT Database query is executed, the values will be put in place of the parameter name, as follows:

SELECT * from MY_TABLE where APPLICATION_ID in (345, 436)


Parameters included in the trigger file can be used even in workflow transformations, when they accept fixed values, like:


Special parameters include:

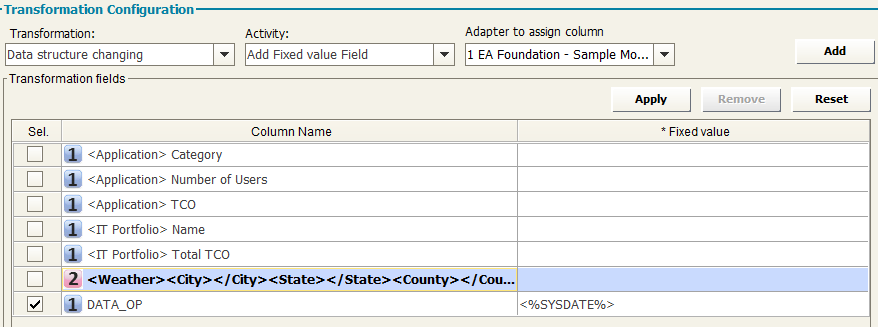

<%SYSDATE%>: a parameter can be used to populate a fixed value column, or a filter value, with the system date and time (UTC format); if the value <%SYSDATE%> is entered, DT will replace the parameter with the datetime value, at execution time.

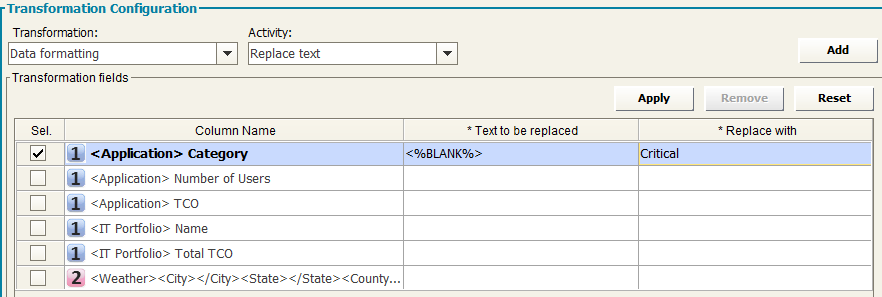

<%BLANK%>: in Replace Text transformation, when you want it to be applied to an empty value.

Running a Sequence on event

Running a Sequence on event

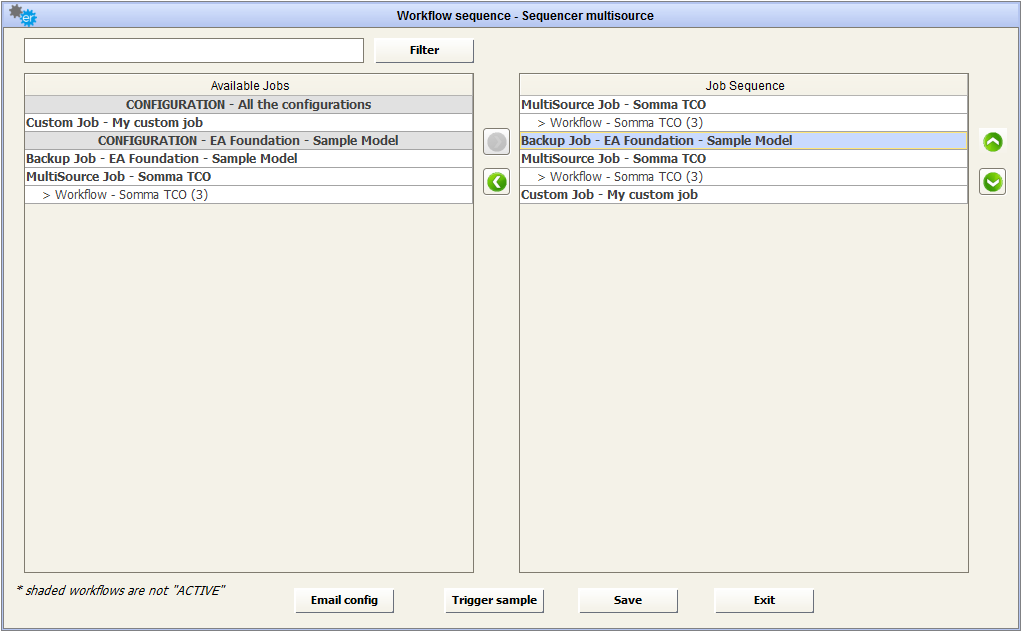

In this version, you can define job sequences, not only on schedule time basis, but in a real logical flow; that is, the user may choose between available adapters and related workflows; which ones, and in which order they belong in the Job Sequence:



The job sequences can be launched on demand, on schedule, or on event in a similar way to adapters.

A sample of the needed trigger file could be obtained pushing the “Trigger sample” button:

<?xml version="1.0" encoding="UTF-8"?>

<CC_TRIGGER sequence="MySequenceJob">


              <PARAMETER name="MY_CATEGORY_PARAM" value="sample_value" />



And it will contain all the parameters included in the included adapter/workflow definitions (where “sample_value” must be replaced by the actual "MY_CATEGORY_PARAM” value when producing the real trigger file).

The trigger files must be compliant to the naming convention:
