Troubleshooting Information

Troubleshooting Information

DT creates and uses some specific paths/folder during the execution of client configurations or scheduled operations. Main folders and files are explained in the following paragraphs.

Installation Path

Installation Path

The installation path is by default:



C:\Program Files (x86)\erwin\Data Transformation



Contents:

Configuration files:

o<inst_path>\config\erwinDataTransformation.properties

o<inst_path>\config\quartz.properties

o<inst_path>\config\workflows\config\jdbc\CollectorDS.properties

containing the DT database connection string

Binaries

External libraries

CM4Collector.exe

performs import/export CM models operations

Data Path

Data Path

The data path is by default:



C:\ProgramData\erwin\Data Transformation



Subfolders:

data

DT database files

libraries

XSLT parsers used for library/custom transformations

log

Client.log, event.log, server.log, listener.log

workflows

Workflows operation data, workflow testing triggers

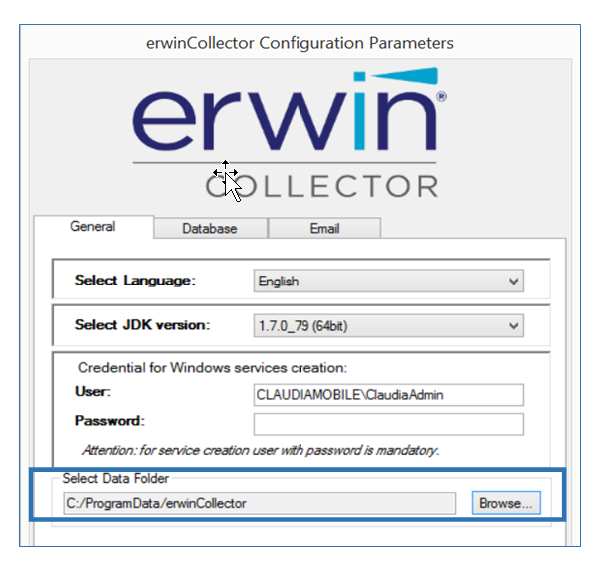

The data path can be different from the default; configure the tool providing the desired path:



Setup / Windows Services

Setup / Windows Services

DT installs four Windows Services, which have to be launched by a Windows user belonging to the Administrator group:

erwinDataTransformationH2DB:

Runs the application database

erwinDataTransformationListenerManager

Detects newly created files into DT folders (see later)

erwinDataTransformationEventManager

Manage the event queue, as workflows to be run for adapter files detected by Listener manager

erwinDataTransformationServerManager

Performs scheduled jobs (adapters or sequences execution)
