StoragePoint 6.4 - Reference Guide

Suggested Truncation Sizes

Running the librarian timer job with ‘Simulate and Log Issues’ box checked allows the algorithm to suggest folder and file name changes based on what could not be cataloged.  The results of the librarian timer job will provide a recommended max file name length and/or a max folder name length for the librarian settings. The feature searches the most granular folder and files in the fileshare structure and reduces by 1 character at a time, until total size of names < Max Url allowed.

Suggestion Truncation Example:

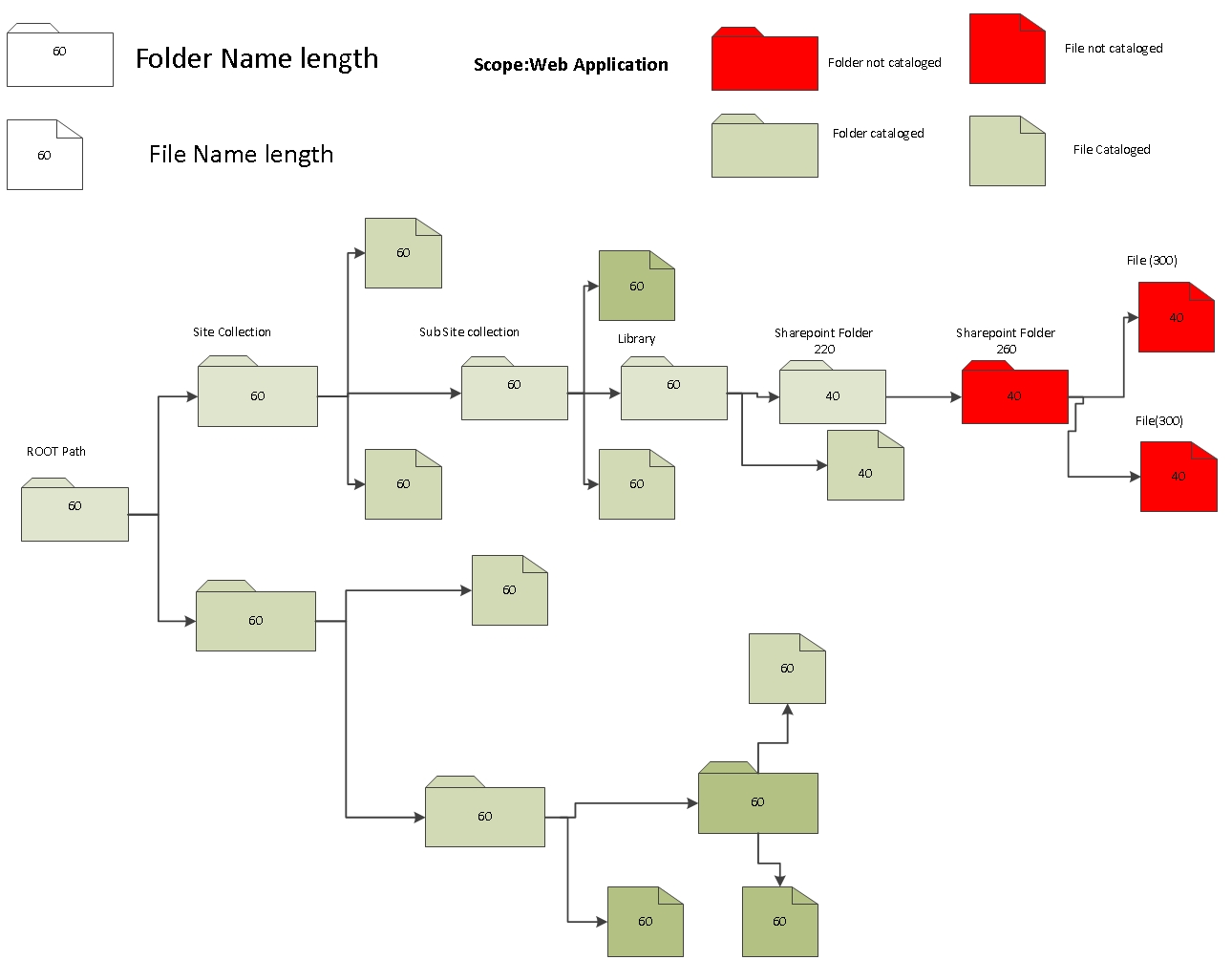

All files and folders in the diagram below need to be cataloged. The max folder name length = 40 and max file name length = 40 with scope = web application and Max Url = 226 characters. The results of running the librarian timer job with ‘Simulate and log issues’ checked would be the following. Red =  folders and files not cataloged, Green= Folders and Files cataloged.

The summary will return suggested limits for max file name length and max folder name length, in order to have all content cataloged. The following shows that 15 is the recommended folder name and file name length in order to make sure that all content is cataloged successfully.

This truncation suggestion may be found even on successful timer jobs. Be sure to check the entire Librarian Log for details.

Destination Settings

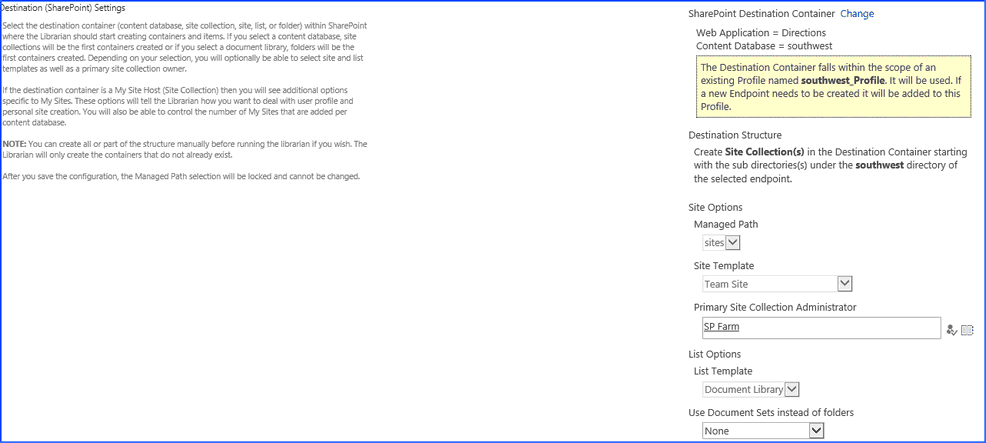

1.Click the Change link to select the SharePoint Destination Container. The structure of the SharePoint farm will display in another window. Use the URL search field to find a location, or select the location for the cataloged content to reside. Note that as stated above, if a Web Application is selected, the cataloged content will begin at the Site Collection level, and folders that are below the root of the source will become sites, and so forth.

If the destination container selected is already covered by an existing StoragePoint storage profile and that profile’s endpoint does not match the File Share to Catalog, the endpoint will be added to the existing storage profile.

If the destination container selected is not already covered by an existing StoragePoint storage profile, one will be created for the most specific scope available. If the destination is a MySite Host, the scope of the created profile will be the web application.

The Destination Structure message will populate after a destination container is selected. The message will instruct on where the Librarian will start building containers in SharePoint.

Example:

If the source to be cataloged looks like this:

      And the cataloging is configured to begin at the web application level, it would create:

      1_Active_Files

 folder_A = Site Collection

         folder_A1 = Site

         folder_A2 = Site

 folder_B = Site Collection

         folder_B1 = Site

         folder_B2 = Site

Files will be found at their respective levels within the structure. If there are files in the folders that are to become Site Collections or Sites, those files will be found in the Shared Documents library of the respective site or site collection.

2.There may be additional configuration options based on the structure the Librarian will need to create. Those options are as follows:

a.Managed Path – If the destination is a Web App or Content Database, the Managed Path option will be available. This field will be locked down once the configuration is saved.

b.Site Template – select a template that will be used when site collections or sites are created.

c.Primary Site Collection Administrator – provide this value if the Librarian will create site collections.

d.List Template – select a template that will be used when document libraries are created.

e.Use Document Sets instead of folders - None, For Parent Folders Only, or For All Folders (SharePoint 2013 Only). This option allows the creation of document sets, if available on the site collection, in place of where folders would normally be added. The document set will contain any documents within the folder. Pay special attention to the structure of the file share that is being cataloged, when using document sets, making sure that the correct level corresponds with the creation of document sets.

Destination Settings for MySite Host

If the SharePoint Destination Container is a MySite Host then there will be additional options that will allow Librarian configuration for User Profile and Personal Site creation.

1.Create Nonexistent User Profiles? – by default the Librarian will create User Profiles that are not already present in SharePoint. Setting this option to No will cause the Librarian to log exceptions for any User Profiles that do not already exist.

2.Username Folder Search Pattern – this setting provides a means to find user folders within a non-flat folder structure either by some pattern or level. For example, all the folders may be username@domain, so set the search pattern to *@domain to identify folders with that pattern as user folders for cataloging. Set Source Folder Format to username@domain so the Librarian knows how to strip the username out of the folder name. If using a non-flat folder structure where the user folders are at the same level in the folder hierarchy, but grouped by business unit or region or some other dimensions, simply indicate the level with a series of \* sequences. For example, it may have a folder structure that is \\myfileserver\userdrives\businessunit\countrycode\username. In this scenario, \\myfilerserver\userdrives would be the File Share to Catalog and the search pattern would be \*\*\* indicating that the username folders are 3 levels below the File Share to Catalog root.

3.Username Mapping Pattern (Optional) – use to provide parameters needed for claims based authentication.

4.Source Folder Format – this selection simply tells the Librarian what to expect when it finds a username folder and how to extract the username from the folder name. The possible selections for this option are username, username@domain, and domain_username.

5.Item Import Location – this selection tells the Librarian where to start cataloging items. By default, a SharePoint 2010 personal site contains two libraries, Personal Documents and Shared Documents. Librarian by default will start cataloging items into the Personal Documents library, but Shared Documents or Create New List(s) and Folder(s) can also be used. This field is locked down after the first successful run of the File Share Librarian cataloging timer job. For SharePoint 2013, the default library is Documents.

New File Externalization Settings

New content within the scope of the librarian configuration will need an endpoint if there isn’t one already on an existing profile for that scope. If no other selection is made, new content will go to the Content Database (default). A new endpoint can be created from this screen by clicking the New link.

Note that in order to use the Large File Upload to upload files larger than the web application upload threshold, an endpoint must be selected. If Future File Externalization is left on Content Database, large files can be uploaded, but they will remain in System Cache because the Content Queue Migrator cannot find a suitable endpoint for the file. To resolve this, an unfiltered endpoint can be added to the profile, and the Content Queue Migrator will process the Large File on the next run of the timer job.
