StoragePoint 6.4 - Reference Guide

Planning the StoragePoint Implementation Backup/Restore and Disaster Recovery Synchronous versus Asynchronous Setting up StoragePoint Default Values General Settings Managing Storage and Backup Endpoints Managing Storage Profiles StoragePoint Timer Job Monitoring File Share Librarian Large File Support Dashboard User Experience Activating the Software Appendix A: Import\Export Tool About Us

Copying a Profile

A quick way to create profiles is to use the copy feature. This takes a ‘snapshot’ of a profile, and except for the scope, copies all the configuration information into a new profile. This can save time in

·selecting endpoints,

·configuring timer jobs,

·setting up archiving, backup, and records management,

·and other configuration steps.

It is more comprehensive than relying on the Default Settings, and will likely be more customized to reflect settings already widely used for other parts of the SharePoint farm.

1.At the bottom of the profile page is a Copy button to copy the setup of an existing profile. Click Copy.
METALO~1_img115

2.A summary will be displayed of the profile configuration. Click Copy to make a copy of this configuration.
2024-02-21 00_12_02-Sharepoint 2019 (Just SharePoint-SQLServer) [Running] - Oracle VM VirtualBox

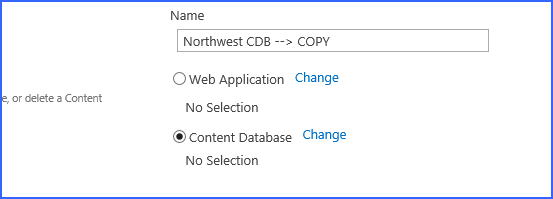

3.A new profile screen opens, and the Name indicates that it is a copy. Update the name, select the scope of this new profile, which has been cleared, and make any other changes to the profile before saving.
METALO~1_img117



Items to make special note of:

·The Start folder of the endpoint, especially if this reflects the profile’s name.

·Any filters for asynchronous profiles. Make sure they still apply to the content of the new scope. Metadata and hierarchical filters are not copied.

·Librarian endpoints are not copied.

·Anything that used a hierarchical scope (filtering, archiving) needs to be corrected.

·A profile reboot may be needed after saving to enable the links on the SharePoint content within the scope of the new profile. To do this, open the profile, disable externalization, save the profile, open and enable externalization on the profile, and save.

Delete an Existing Storage Profile

While safeguards are in place to prevent externalized content from becoming irretrievable, deleting a storage profiles is still an operation that should be carefully planned and completed.

info

NOTE: Deleting the profile will automatically schedule a Bulk Recall and an Unused BLOB Cleanup job for the profile.

info

NOTE: Deleting a profile with a librarian configuration is not possible. A warning will be displayed to delete the Librarian configuration first.  Perform a Bulk Recall job for the profile, BEFORE deleting the librarian configuration. This will prevent errors when the bulk recall is performed at the time of profile deletion.

Delete Versus Disable

If there was a File Share Librarian configuration that was associated with the profile, the content on that endpoint is also pulled into the content database by the bulk recall job when the profile is deleted. In this case, just change the Externalize Content BLOBS to No, instead of deleting the profile. This will leave the librarian file share intact.

It is strongly recommended that an Unused BLOB Cleanup Timer Job be run so that there is no confusion as to why there may be some BLOBs remaining after the Recall Job is performed. Once the Storage Profile is gone, there is no access to the Unused BLOB Cleanup Timer Job.

1.Click the name of the storage profile to open it.

2.Click Delete at the bottom of the page.

3.A deletion confirmation page is displayed.

4.Select the server on which to run the delete job.

5.Check the Default Notification Contacts checkbox, or enter other email addresses that should receive the completion notice.

6.Click Delete to continue with the deletion process or Cancel to return to the previous page.
Delete profile

A Recall job will be scheduled for the storage profile. Upon successful completion of that job the storage profile will be deleted. Until then, the storage profile will be in a “deleting” state and will not be editable. Additional timer jobs will also be unavailable for running or scheduling.

Retiring Storage Profiles

If there is a broader scoped profile available at the time of selecting Delete on the profile page, the only option will be to retire the profile, and select a successor profile. For example, if the profile being deleted covers a content database, but there is still an existing web application profile that covers that content database, the option to retire will be displayed but Delete will be greyed out.
2024-02-20 23_31_03-

If Retire is selected, the content will still be recalled, but a subsequent bulk externalization job will externalize the recalled content to the endpoint on the broader scoped profile. The Bulk Externalization job will need to be run manually if there are any errors in the Bulk Recall job. An Unused BLOB Cleanup Job will also be run for the retiring profile.

Backed up BLOBS can be moved to the Backup Endpoint of the successor profile, if the 'Retire BLOBs Backups' is checked, and there is a backup endpoint on the successor profile. (A backup endpoint can be selected for the successor profile at the time of profile retirement, using the dropdown.) They will be backed up by the successor profile's backup synchronization job, after they are externalized. Otherwise, backed up BLOBs from the retired profile will be cleared.

As with all bulk recall jobs, archived content will also be recalled. Archiving may need to be reconfigured for the successor profile, and it may be necessary to perform a Process Existing operation to re-archive content, if desired.
