Filtering Storage and Backup Endpoints

Once created, filter the current view of the available storage endpoints by Status, Adapter type, or Name, by clicking the appropriate filter on the left.
METALO~1_img54

Monitoring Storage and Backup Endpoints

The Type column shows whether the endpoint is a Primary (standard) or Backup endpoint. Backup endpoints will only be available in the Backup Service Settings on the storage profile screen.

The Status column shows whether the endpoint is active, or Online. To clear an endpoint in an Online* (red) status, upload new content to the endpoint after correcting any errors.

The Adapter column shows which type of adapter is being used for the storage endpoint.

The Free Space column will indicate how much of the capacity for that endpoint is currently available. The Free Space will display Green if the Free Space is >= 25%, Yellow if it is < 25% and >= 10%, and Red if it is < 10%.

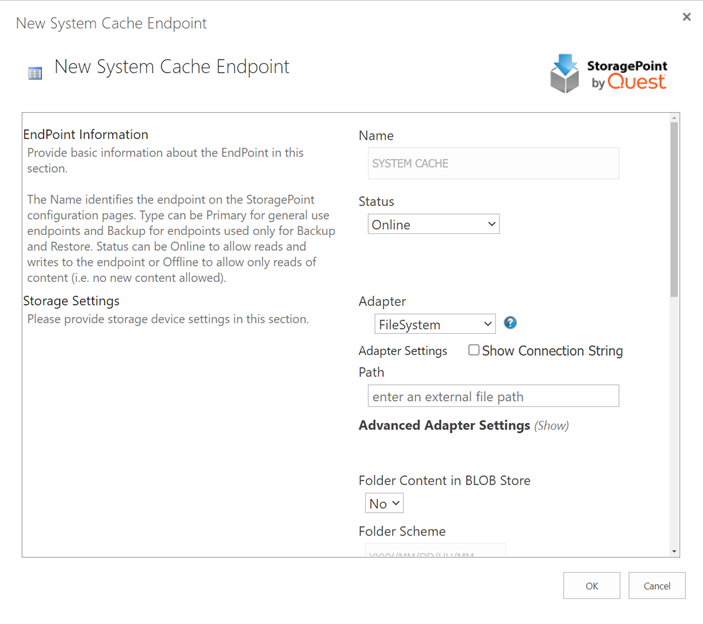

System Cache

The System Cache enables the creation of asynchronous operations in the storage profile. It can also be used as a backup endpoint if the primary endpoint fails.

The System Cache can be accessed from the main StoragePoint menu or from the storage profile page.
METALO~1_img55

SystemCache1

The system cache is configured like most storage endpoints, except that the name cannot be edited. Use the chart below as a guide to complete the system cache settings.

Setting

Value/Options

Endpoint Name
system_cache_endpoint_Name_field
Read-only field for the name of the storage endpoint.

Status

endpoint_status_field
Online – Storage endpoint should be available to associate to a Storage Profile and accept BLOBs. (default)
Offline (Read Only) – A storage endpoint can be configured, but not made available for externalizing content. The BLOBs already on the endpoint are still read only.

endpoint_adapter_filesystem
Select the adapter for the endpoint that is being created.

endpoint_FS_Path_field
Enter an adapter-specific connection string in this box.



The fields for the Adapter Settings will change depending on the adapter type selected. Please see the specific Adapter Administration Guide for configuring the adapter type selected.

endpoint_foldering_field
No – Externalized content BLOBs are not placed in folders.

Yes – Externalized content BLOBs are placed in folders (default).

endpoint_foldering_Scheme
If Folder Content in BLOB Store is Yes, select a date/time folder scheme from the dropdown.

YYYY/MM/DD/HH/MM is the default.



The Test Storage Settings button can be used at this point, or after completing the system cache configuration, to verify that the endpoint is accessible.

endpoint__compression_field
No – Externalized content BLOBs are not compressed (default).

Yes – Externalized content BLOBs are compressed.

endpoint_encryption_method_field
None – Encryption will not be applied to externalized BLOBs (default).

AES (128 bit) – 128 bit AES encryption will be applied to externalized BLOBs.

AES (256 bit) – 256 bit AES encryption will be applied to externalized BLOBs.

endpoint_warning_fields

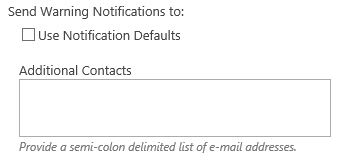

A warning email can be sent if a Storage Endpoint encounters errors or is nearing capacity.

system_cache_warning_notifications
Default email addresses for system error notifications can be entered. Check the box to include the list of Default Notification Contacts specified on the General Settings page.

Creating a New Storage or Backup Endpoint

1.Click the Create New Endpoint link.

2.Complete the fields as appropriate.

3.For assistance on configuring each type of adapter, select the adapter from the dropdown and click the help symbol. This document will show the complete steps for configuring an endpoint.
enpoints_adapter_dropdown_file_system
