Foglight for Microsoft DOT NET 5.9.13 - Application Servers User Guide

Requests table

The Requests table lists all service requests coming from external clients, using HTTP, RMI or other communication protocols. For example, in the Medical Records sample application that ships with WebLogic® servers, the table displays HTTP Get methods for log in, log out, record requests, and administration activities.

NOTE: Some of the columns described are hidden by default. To show or hide columns, see Show/Hide table columns.

To collect traces, click Collect Traces. The Collect Traces dialog box opens. Use it to configure single trace collection. For more information, see Managing Traces.

The request you select in the Request Types table controls what data appears in the Charts area. By default, the first item in the Request Types table is selected.

Response time baseline and threshold

The Foglight for Application Servers IntelliProfile engine generates baseline and threshold values for the Response Time of request types. IntelliProfile uses data collected during a desired time period and generates a baseline operating range based on the collected metrics. A baseline establishes expected data patterns for a given time period. Baselines are periodically evaluated during IntelliProfile learning cycles, to reflect changes in data patterns.

The baseline data for the Response Time appears in the Response Time chart, on the Response Time/Call Count tab.

NOTE: Data must be collected for at least 24 hours before the baseline is generated and displayed.

Threshold states (such as critical or fatal) reflect the degree of deviation from the baseline, and can indicate potential performance bottlenecks. Foglight for Application Servers can generate alarms when the Response Time enters a certain threshold state, based on the rule conditions that evaluate the threshold states.

NOTE: The Response Time threshold specifies only Critical and Warning bound values.

There are two rules related to Response Time for request types: Request Response Time Baseline Rule and Request Response Time Threshold Rule. These rules are disabled by default.

For more information about the rules, review the rules on the Foglight Rule Management dashboard (Dashboards > Administration > Rules & Notifications > Rule Management > search for “response time”).

For more information about IntelliProfile in Foglight for Application Servers, see Analyzing Activity Levels with IntelliProfile in the Foglight Administration and Configuration Help.

Chart area

The chart area of the Requests view contains graphs and tables of the execution-time data for the selected request over the selected time period. Use the tabs to access more information about Response Time and Call Counts, Sampled Breakdowns, and Incomplete and Exceptional Exits.

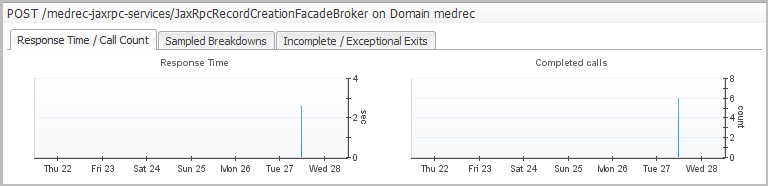

Response Time/Call Count tab

The graphs display the historical response time and call count of a request. For each selected request, the graph plots the average, maximum, and minimum values.

When baseline data for the Response Time is available, it appears in the Response Time chart. For more information about baselines, see Response time baseline and threshold .

Adjusting the timeline zonar updates the graphs with the data collected during that time period.
