Viewing client details

You can view all existing clients from the Manage Clients page. The page displays the client name, description, status, and product version. To view more information about a client, select the client, and click Manage.

To view client details:
1
In the Navigation pane, click Manage Clients.
2
On the Manage Clients page, you can view all NetVault Backup Clients that are added to the server. The page also displays Virtual Clients.

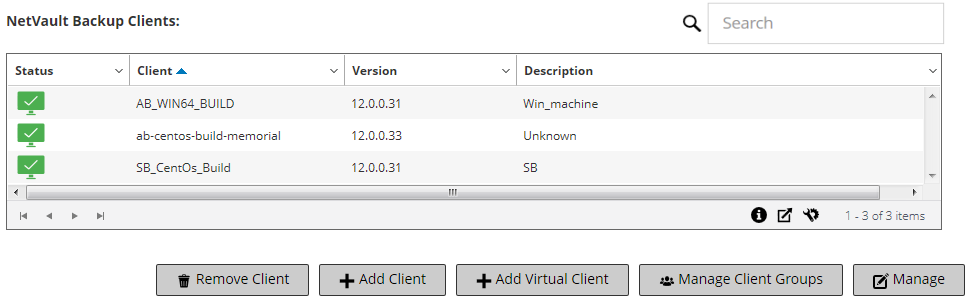

Figure 6. Manage Clients page

The page shows the following information about the machines:
•
Status: Displays the status icons, which indicate the type of client and whether the client is online or offline.
•
Client: Displays the NetVault Backup name assigned to the client.
•
Version: Displays the NetVault Backup version installed on the machine.
•
Description: Displays the client description.
The following table provides a brief description of the client icons.

Table 22. Client icons
Icon
Description

Client is up and running.

Client is online. It is in the process of being added, or the NetVault Backup password for the client has changed since it was added.

Client is unavailable. The system is offline or the NetVault Backup Service is not running.

Represents a Virtual Client that consists of a cluster of Clients. For more information about Virtual Clients, see Working with client clusters.

3
By default, the table is sorted by client name.
You can sort the table by one or more columns, as required. For more information, see Sorting records in NetVault Backup WebUI.
To view the page size setting, sorting order in the table, export the records, or edit table settings, click the icons at the lower- right corner of the table. For more information, see Customizing tables in NetVault Backup WebUI.
4
To quickly find entries containing specific field values or text, you can use the Search box at the upper-right corner of the table. The data in the table is filtered as you type the search text into the box. You can also include wildcards (“?” or “*”) in the search filter string.
5
In the NetVault Backup Clients table, select the client that you want to view, and click Manage.
6
On the View Client page, you can view the following details:
•
Client Summary: The Client Summary area displays the following information: NetVault Backup machine name, client description, NetVault Backup version, machine ID, network name of the machine, IP address, release information, and OS.
•
Server Capabilities: To view the server license capabilities, click this link. You can view the license capabilities for clients, SmartClients, and various types of devices.
•
License Key Details: To view the license key information for the server or client and any licensed plug-ins installed on the machine, click this link.
•
Installed Plug-ins: The Installed Plug-ins table displays the plug-ins installed on the selected client. The details include the plug-in name, version number, and installation date.
7
To perform a client-related task, click the corresponding button in the Operations pane. Alternatively, click a link in the Navigation pane to open a different page.

Setting client description

You can use the following procedure to set a description for a client. Client description can help you determine the location of the client or the role of the machine.

To set or change client description:
1
In the Navigation pane, click Manage Clients.
2
In the NetVault Backup Clients table, select the applicable client, and click Manage.
3
On the View Client page, under the Client Summary area, you can view the client description.
To set or change the client description, click the Edit icon. In the Edit Description dialog box, type a descriptive text for the client.
4
Click Save to save the details and close the dialog box.

Installing plug-ins

NetVault Backup offers a selection of add-on plug-ins that you can install on the server and client machines to protect application-specific data. You can install the plug-ins simultaneously on multiple machines by using the configuration wizard. Alternatively, you can install a plug-ins on a single client from the Manage Clients page.

The following sections describe the different procedures that you can use to install the NetVault Backup plug‑ins:

•
Installing plug-ins using the push installation method (Windows)
•
Installing plug-ins from the Manage Clients page

Role-based access to install plug-ins


Table 23. Role-based access for installing plug-ins
Installing Plug-ins
MSP administrator
Tenant administrator
Tenant user

Using push installation

a

r

r

From manage clients page

a

a

r

Installing plug-ins using the push installation method (Windows)

On Windows-based machines, only MSP administrator can use the push installation method to install the plug-ins on several machines at the same time. You can perform push installations from the NetVault Backup WebUI.

Before you start the push installation procedure, verify that the following requirements are met:

•
Copy the packages to a shared location: Copy the client and plug-in packages to a shared location. Only CIFS shares are currently supported as package stores. The path must be accessible to the NetVault Backup Server and all target machines where you want to install the packages.
Make sure that you use the original names of the installation packages. Renamed packages cannot be selected for push installations.
•
Configure a package store in NetVault Backup: After copying the installation packages, configure the shared location details in NetVault Backup. For more information, see Configuring a package store.
To install one or more plug-ins on Windows-based clients:
1
In the Navigation pane, click Guided Configuration, and then on the NetVault Configuration Wizard page, click Install Software/Add Clients.
2
On the Select Software/Add Clients page, select Install NetVault software on remote machines.
3
In the Package Store list, select the repository that contains the installation packages that you want to deploy.
4
To add plug-in packages, click Add NetVault plug-in package.
In the Select Packages for Deployment dialog box, select the check boxes corresponding to the “.npk” binary files that you want to use, and click OK.
Click Next.
5
On the Machines to Have NetVault Software Installed page, click Choose Machines, and select From available machines.
6
On the NetVault Machine Details tab, select the client that you want to add, and click OK.
7
To add more machines, repeat Step 5 and Step 6.
8
To submit the task, click Install Software/Add Clients.
You can monitor the progress and status of the task from the Deployment Task Status page. For more information, see Monitoring deployment tasks.
Installing plug-ins from the Manage Clients page

From the Manage Clients page, you can install a plug-in on a single client.

To install a plug-in from the Manage Clients page:
1
In the Navigation pane, click Manage Clients.
2
In the NetVault Backup Clients table, select the client on which you want to install the plug-in, and click Manage.
3
At the lower-right corner of the Installed Plug-ins table, click the Install Plugin button ().
4
Click Choose Plug-in File, and in the browse window, navigate to the location of the “.npk” installation file for the plug-in (on the installation CD or the directory to which the file was downloaded from the website).
5
Select the platform-specific binary file for the plug-in, and click Install Plugin to begin installation.
After the plug-in is installed successfully, a message is displayed.
