Foglight for Hyper-V 5.7.0 - User and Reference Guide

About Foglight for Hyper-V Agent administration Performance monitoring with the Hyper-V Environment dashboard Performance investigation with the Hyper-V Explorer Foglight for Hyper-V alarms Appendix: Hyper-V Agent error codes

Servers view

The Servers view is a tree view. It lists the servers that exist in your environment and shows their state.
This view appears in the Quick-View on the left when you select the Servers tile in the Virtual Environment view.
Figure 64. Servers view
Selecting the All Servers node displays overall resource utilization for all servers in your integrated system, and the elements that consume the highest amount of system resources in the Summary - All Servers view on the right. Similarly, selecting a server node shows server-specific metrics in the Server Summary view.

Table 19. Description of the View
Data displayed
•
Alarm severity. The state of the most recent alarm raised against the associated server.

•
All Servers. A parent node for the server object instances that appear in this view.

•
Server. The server name.
Where to go next
Drill down on:

•
All Servers. Shows the Summary - All Servers view in the Quick-View.

•
Server. Shows the Server Summary view in the Quick-View.

Summary - All Servers view

The Summary - All Servers view displays overall resource utilization information for a group of physical servers and shows the elements that consume the highest amount of system resources.
This view appears in the Quick-View on the left when you select All Servers in the Servers view.

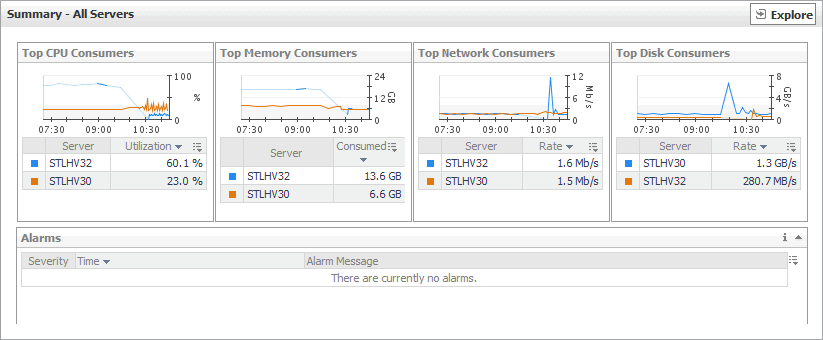

Figure 65. Summary - All Servers view
This view is made up of the following embedded views:
•
Alarms
•
Top 3 CPU Consumers
•
Top 3 Disk Consumers
•
Top 3 Memory Consumers
•
Top 3 Network Consumers


Table 20. Alarms
Description
Lists the alarms generated against the monitored system.
Data displayed
•
Alarm Message. An explanation about why the alarm occurred.

•
Severity. Indicates the alarm severity: Warning, Critical, or Fatal.

•
Time. The time at which the alarm was generated.
Where to go next
Drill down on:

•
Alarm Message. Links to the Server Summary view.

•
Severity. Displays the Alarm dialog box, showing additional information about the alarm. For more information about alarms in Foglight, see the Foglight User Help.
Figure 66. Alarm dialog box

•
Time. Links to the Server Summary view.

Table 21. Top 3 CPU Consumers
Description
Shows the top three servers with the highest average CPU utilization.
Data displayed
•
Server. The name of the server.

•
Utilization.The total percentage of CPU utilization the top three CPU consumers spend on executing system code and user programs, during the selected time range.
Where to go next
Drill down on:

•
Server. For more information, see Hyper-V Explorer Summary tab.

•
Utilization (in the graph). Displays the Top 3 Servers-CPU Utilization dialog box.

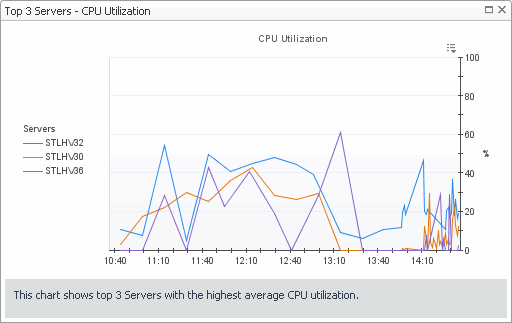

Figure 67. Top 3 Servers-CPU Utilization dialog box

Table 22. Top 3 Disk Consumers
Description
Shows the top three servers with the lowest available disk space.
Data displayed
•
Rate. The rate at which the top three disk consumers read or write data to the disk during the selected time range.

•
Server. The name of the server.
Where to go next
Drill down on:

•
Rate (in the graph). Displays the Top 3 Servers - Disk Transfer Rate dialog box.

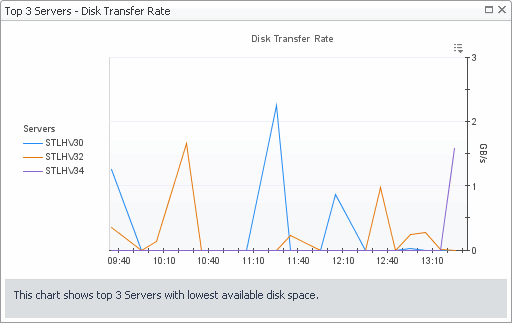

Figure 68. Top 3 Servers - Disk Transfer Rate dialog box

•
Server. For more information, see Hyper-V Explorer Summary tab.

Table 23. Top 3 Memory Consumers
Description
Shows the top three servers with the highest average memory utilization.
Data displayed
•
Consumed. The amount of memory the top three memory consumers use during the selected time range.

•
Server. The name of the server that is one of the top three memory consumers.
Where to go next
Drill down on:

•
Consumed. Displays the Top 3 Servers - Memory Consumed dialog box.

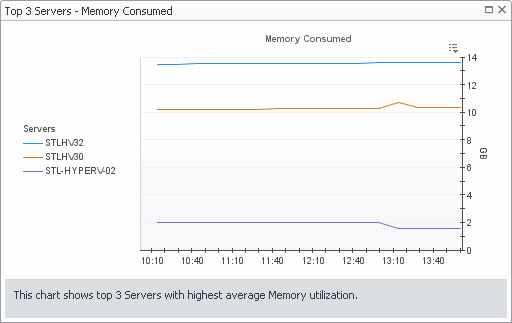

Figure 69. Top 3 Servers - Memory Consumed dialog box

•
Server. For more information, see Hyper-V Explorer Summary tab.

Table 24. Top 3 Network Consumers
Description
Shows the top three servers that are consuming most network bandwidth.
Data displayed
•
Rate. The rate at which the top three network consumers transfer data to or from the network during the selected time range.

•
Server. The name of the server that is one of the top three network consumers.
Where to go next
Drill down on:

•
Rate. Displays the Top 3 Servers - Network Transfer Rate dialog box.
Figure 70. Top 3 Servers - Network Transfer Rate dialog box

•
Server (in the table). For more information, see Hyper-V Explorer Summary tab.

Server Summary view

The Server Summary view shows the overall resource utilization and the amounts of system resource consumption for a physical server.
This view appears in the Quick-View on the left when you select a server in the Servers view.

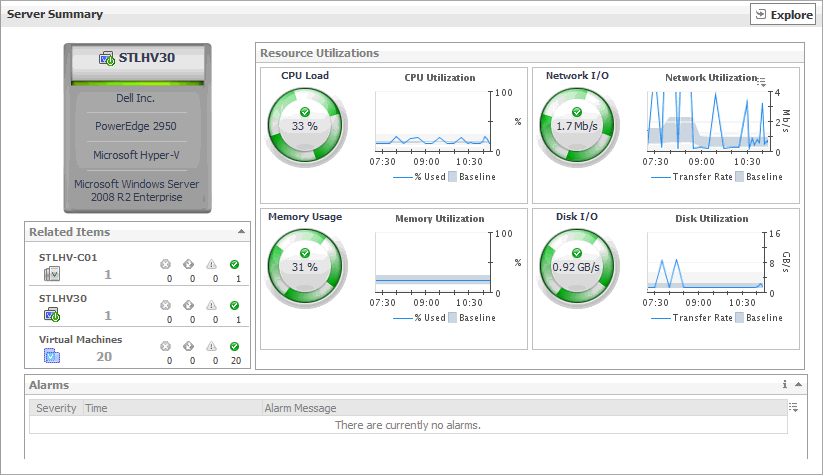

Figure 71. Server Summary view
This view is made up of the following embedded views:
•
Alarms
•
Related Items
•
Resource Utilizations
•
Server Configuration

Table 25. Alarms
Description
Lists the alarms generated against the selected server.
Data displayed
•
Alarm Message. An explanation about why the alarm occurred.

•
Severity. Indicates the alarm severity: Warning, Critical, or Fatal.

•
Time. The time at which the alarm was generated.
Where to go next
Drill down on:

•
Alarm Message, Severity, or Time. Displays the Alarm dialog box, showing additional information about the alarm. For more information about alarms in Foglight, see the Foglight User Help.
Figure 72. Alarm dialog box

Table 26. Related Items
Description
Shows the numbers and states of the cluster the selected server belongs to, the selected server, and the virtual machine running on the selected server.
Data displayed
•
Cluster. The name of the cluster to which the selected server belongs, followed by the counts of all alarms associated with the cluster, broken down by the alarm state (Normal, Warning, Critical, Fatal).

•
Server. The name of the selected server, followed by the counts of all alarms associated with that server, broken down by the alarm state (Normal, Warning, Critical, Fatal).

•
Virtual machines. The number of the virtual machines running on the selected server, followed by the counts of all alarms associated with those virtual machines, broken down by the alarm state (Normal, Warning, Critical, Fatal).
Where to go next
Drill down on:

•
Alarm count. Displays a dwell that shows the objects against which alarms are generated.
Figure 73. Related objects alarm dwell

•
Cluster. Displays the Clusters dwell, showing the name and state of the cluster the selected server belongs to.
Figure 74. Clusters dwell

•
Server. Displays the Servers dwell, showing the name and state of the selected server.
Figure 75. Servers dwell

•
Virtual Machines. Displays the Virtual Machines dwell, showing the names and states of the virtual machines that are running on the selected server.
Figure 76. Virtual Machines dwell

Table 27. Resource Utilizations
Description
Shows the resource consumption for the selected server broken down into four simple views.
Data displayed
•
CPU Load. The current percentage of the selected server’s CPU load, used to execute system code and user programs, based on the total CPU capacity.

•
CPU Utilization, % Used. The percentage of the server’s CPU utilization spent on executing system code and user programs during the selected time period.

•
CPU Utilization, Baseline. An envelope indicating the expected CPU utilization range based on historical data.

•
Disk I/O. The current disk I/O rate for the selected server.

•
Disk Utilization, Baseline. An envelope indicating the expected disk utilization range based on historical data.

•
Disk Utilization, Transfer Rate. The rate at which the server reads and writes data to the disk during the selected time period.

•
Memory Usage. The current percentage of the average memory usage by the selected server, based on the total memory capacity.

•
Memory Utilization, % Used. The percentage of the available memory that the server uses during the selected time period.

•
Memory Utilization, Baseline. An envelope indicating the expected memory utilization range based on historical data.

•
Network I/O. The current rate at which the selected server transfers data from and to the network.

•
Network Utilization, Baseline. An envelope indicating the expected network utilization range based on historical data.

•
Network Utilization, Transfer Rate. The rate at which the selected server transfers data from and to the network during the selected time period.
Where to go next
Drill down on:

•
CPU Load spinner. Displays the CPU Load dialog box.
Figure 77. CPU Load dialog box

•
CPU Utilization graph. Displays the CPU Utilization dialog box.
Figure 78. CPU Utilization dialog box

•
Disk I/O spinner. Displays the Disk I/O dialog box.
Figure 79. Disk I/O dialog box

•
Disk Utilization graph. Displays the Disk Utilization dialog box.
Figure 80. Disk Utilization dialog box

•
Memory Usage spinner. Displays the Memory Usage dialog box.
Figure 81. Memory Usage dialog box

•
Memory Utilization graph. Displays the Memory Utilization dialog box.
Figure 82. Memory Utilization dialog box

•
Network I/O spinner. Displays the Network I/O dialog box.
Figure 83. Network I/O dialog box

•
Network Utilization graph. Displays the Network Utilization dialog box.
Figure 84. Network Utilization dialog box

Table 28. Server Configuration
Description
Shows the name of the selected server and its basic configuration, including the hardware configuration, virtualization application (Microsoft Hyper-V), and the OS.

SCVMM server monitoring

A System Center Virtual Machine Manager (SCVMM) is a management solution for a Hyper-V environment. It allows you to manage host, networking, and storage resources when creating and deploying virtual machines to virtual clouds.
To review data collected about a specific SCVMM server or all SCVMM servers, make your selection in the Quick-View.
•
SCVMM Servers view
•
Summary - All SCVMM Servers view
•
SCVMM Server Summary view
