Disk Activity Panel

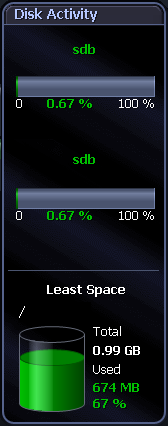

The Disk Activity panel shows information on disk usage:

Activity Guages

Activity Gauge (1)

The percentage activity of the disk or partition with the highest read/write rates.

Activity Gauge (2)

The percentage activity of the disk or partition with the second-highest read/write rates.

Least Space

/name

The name of the mount point of the disk that has the least amount of free space, and that is not already 100% full. (Because of this, no CD-ROM devices are shown.)

Tip: You can configure this control to display the total and used space on ANY available disk on the system. Right-click the control and select Disk Options.

Total

The total amount of free space that has been allocated to this disk.

Used (MB/GB)

The amount of disk space that is currently being used by this disk.

Used (%)

The amount of disk space that is currently being used by this disk, expressed as a percentage.

Data flows between the Memory panel and the Disk Activity panel

Disk I/O (Memory to Disk Activity)

The number of writes that the system makes to disk per second.

Disk I/O (Disk Activity to Memory)

The number of reads that the system makes from disk per second.
