Enabling tracing

Diagnostic tracing is disabled by default. When investigating a problem, Quest Technical Support might ask you to enable tracing on the relevant NetVault Backup machines to capture diagnostic information about the error condition. This information helps in determining the source of error condition. Once the traces are enabled for the server, warning is displayed as Diagnostics in the Header Pane of NetVault Backup.

fFor the NetVault Backup Server from Change Settings: On the NetVault Server Settings page, under System and Security, click Diagnostic Tracing. On the Diagnostic Trace Settings page, click Enable Tracing.
For the NetVault Backup Client from Change Settings: On the NetVault Server Settings page, click Clients. In the NetVault Backup Clients table, select the client, and click Next. Under System and Security, click Diagnostic Tracing. On the Diagnostic Trace Settings page, click Enable Tracing.
On the Manage Clients page, select the Trace Status check box or click Enable Tracing
On the Manage Clients page, select the client, and click Enable Tracing.
3

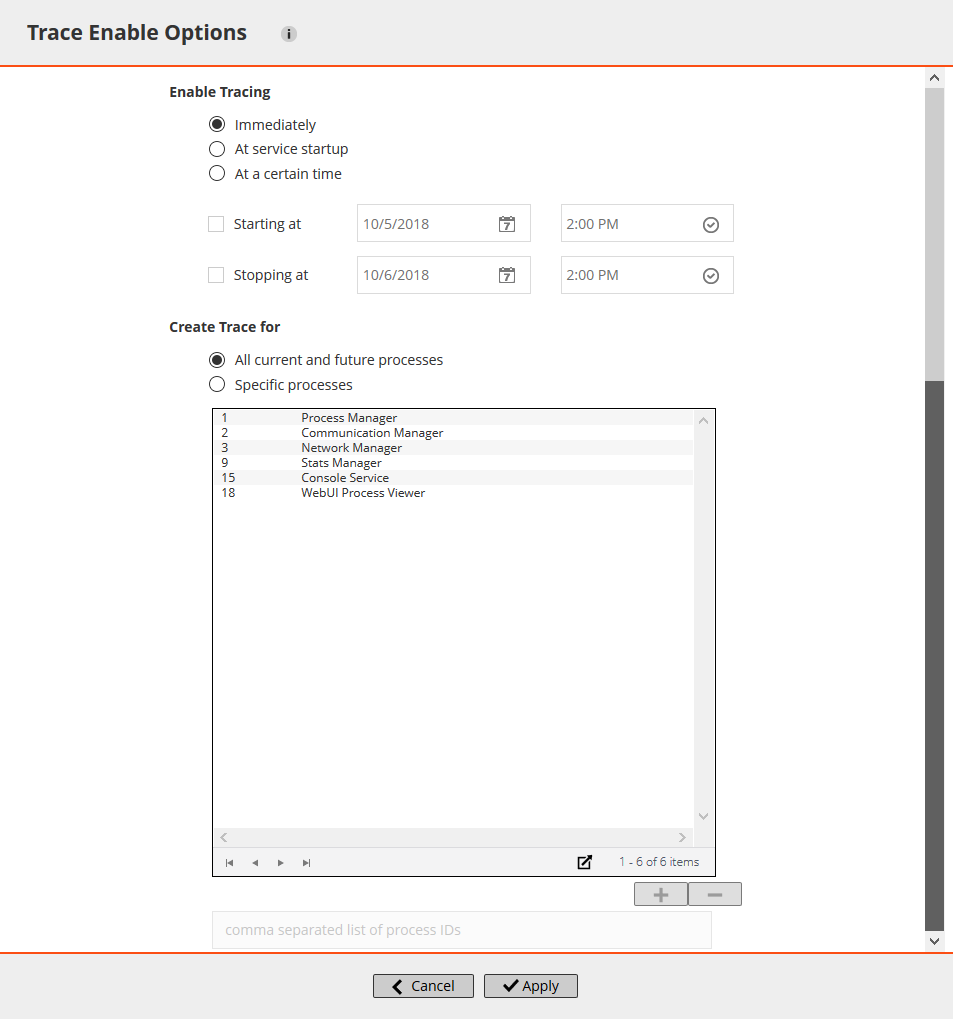

In the Trace Enable Options drawer, configure the following settings.
IMPORTANT: When you select multiple clients, the Trace Enable Options drawer does not show the list of process names. You can either use the All current and future processes option, or provide the process ID list in the associated box.

Enable Tracing

Select one of the following options:

Immediately: This option is selected by default. To start tracing immediately, use this option.
At service startup: To enable tracing at service startup, select this option.
NOTE: You can also enable tracing at service startup by clicking Trace Configuration on the Diagnostic Trace Settings page, and selecting the Enable trace on service startup check box in the Trace Configuration Options dialog box.
At a certain time: To automatically start and stop tracing at specified times, select this option, and specify the time window:
- Starting at: Select this check box, and type or select the date and time when tracing should be started on the machine.
- Stopping at: Select this check box, and type or select the date and time when tracing should be stopped on the machine.

Create Trace for

Specify the processes for which trace files are required:

All current and future processes: This option is selected by default. To generate trace files for all current and new processes, use this option.
Specific processes: To generate trace files for specific processes, select this option.
IMPORTANT: Trace settings do not persist across restarts of NetVault Backup Service unless you have selected the At service startup or Enable trace on service startup options. In such cases, tracing is enabled on all processes.
4
Click Apply to apply the settings and close the drawer.

Downloading trace files

Trace files are generated on the machines where the selected processes are running. You can use the WebUI to download trace files from various machines to the local machine where the WebUI is running.

From the NetVault Backup Server: On the NetVault Server Settings page, under System and Security, click Diagnostic Tracing.
From the NetVault Backup Client: On the NetVault Server Settings page, click Clients. In the NetVault Backup Clients table, select the client, and click Next. Under System and Security, click Diagnostic Tracing.
4
Click Download, and in the confirmation dialog box, click OK.

Changing the trace directory location

By default, the trace container directory is created under the NetVault Backup installation directory. You can modify the default settings to specify a new location for the container directory. When tracing is enabled, a session directory is created under the container directory; all trace files generated during the session reside in this directory.

For the NetVault Backup Server: On the NetVault Server Settings page, under System and Security, click Diagnostic Tracing.
For the NetVault Backup Client: On the NetVault Server Settings page, click Clients. In the NetVault Backup Clients table, select the client, and click Next. Under System and Security, click Diagnostic Tracing.
3
On the Diagnostic Trace Settings page, click Trace Configuration. In the Trace Configuration Options dialog box, configure the following setting:
Trace Container Directory: Specify the new location for the trace container directory. You must provide the full filepath.
4
Click Apply to apply the new settings and close the dialog box.

Enabling tracing using Txtconfig

You can use the Txtconfig utilities to enable tracing at service startup. At service startup, tracing is enabled on all processes. The Txtconfig utilities do not provide the options to start tracing immediately, start and stop tracing at the specified time, or enable tracing for specific processes.

1
In a terminal or command prompt window, type txtconfig, and press Enter or Return.
2
On the Machine page, press p to view the main menu, and then press the option number for the Diagnostic Tracing page.
3
Press the option number for the Enable trace on service startup setting to change the value to ON.
