Migrator for Notes 20.14.2 - User Guide for Office 365

2.2.4 Audit pNAB DB For Selected Users

2.2 Auditing Mail Files

Next, you need to audit imported users’ mail files using the Audit Mail Files agents. This tool will check the following (depending upon selections made in the Installation and Configuration for the Required Settings) against each mail file:

• Mail file exists

• Migration Notes ID has sufficient access (see the Migrator for Notes Requirements document for more information about required access).

• Mail file size

• Number of Contacts

• Number of Encrypted Items

• Number of Rules

• Number of Journal entries (Notebook entries)

To audit mail files:

1. In the Navigation Pane, expand 2. Mail File Migration and then expand the Audit Mail Files | Audit Mail File Data view:

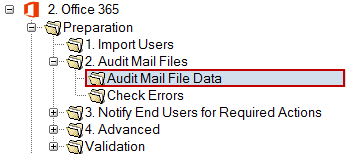

   Audit Mail File Data View

2. Select the user Person Documents in the Data Pane; you can either audit a select number of users or all the users at once

3. Click the Audit Actions button in the Data Pane; the Audit Actions drop-down menu displays:

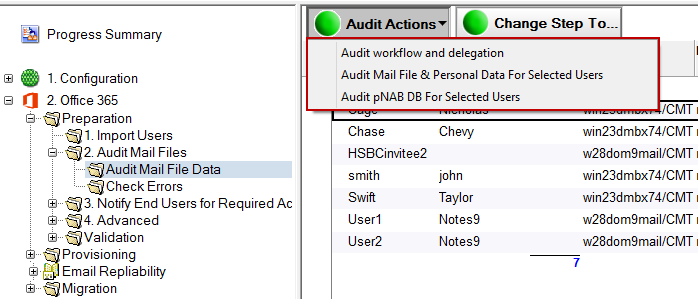

   Audit Actions Drop-down Menu

4. Select one of the following options from the drop-down menu:

2.2.1 Audit workflow and delegation

1. Click the Audit workflow and delegation menu option

2. Totals will appear in the following columns:

   • Unsupported workflow - unsupported calendar recurrence patterns

   • Was Delegated - another Domino user delegated attendance

   • Delegator – the Chair delegated the meeting

   • Delegatee – the user was delegated to attend the meeting on someone’s behalf

3. The Calendar MTCW Audit Report will be populated with any meetings that the user is a Chair for, are in the Notes Integration cache range (typically 90 days from current date) and have a repeating meeting pattern that would not be supported for Outlook to Notes coexistence. This will include any meeting in the cache range including cancelled meetings.

4. If the Settings to Audit calendar unsupported patterns is enabled then the Calendar audit RTF report will be populated with any meetings that have a Notes custom pattern. This will be for meetings where the user is the Chair but can also include meetings where the user an Invitee if that option is enabled. This will not include meetings that have been cancelled. The audit can be sent to the end user through the Remediation Summary message template.

2.2.2 Audit Mail File & Personal Data For Selected Users

1. Click the Audit Mail File & Personal Data For Selected Users menu option; a message box appears indicating the number of selected users to audit

2. Click Yes

3. Depending upon the number of selected users, this process could take from a few seconds to several minutes. Upon completion, a message box confirms that auditing of the mail database is complete and all users have been promoted to the next step of migration; click OK. If no errors are found, skip to step 4.

   All errors must be fixed and then the Audit Mail File & Personal Data for Selected Users tool must be re-run without errors prior to the mail file migration. Refer to the Pre-Migration Troubleshooting appendix for common audit errors and troubleshooting steps.

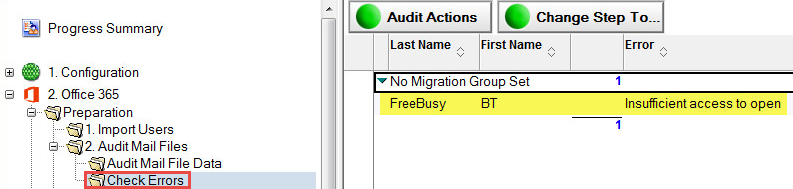

Check Errors View

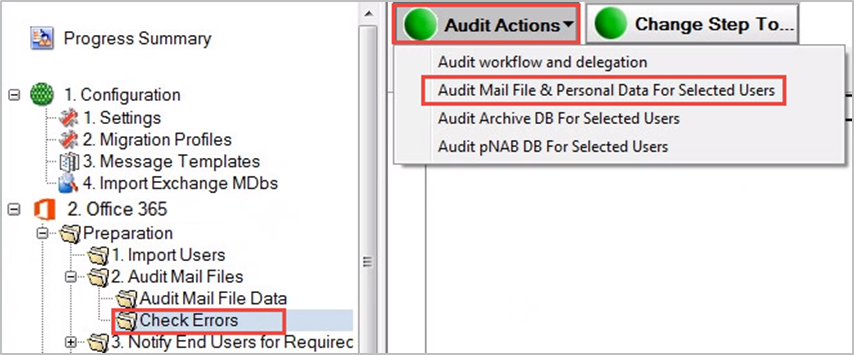

4. After the error is resolved, to re-audit the user, select the user in the Check Errors view and, from the Data Pane, click the Audit Actions | Audit Mail File & Personal Data For Selected Users button in the Data Pane:



   Check Errors View

5. Successfully audited users are promoted to the next step of migration (Notify)

6. To view the result of the audit, you can go to the Preparation | Advanced view in the Navigation Pane

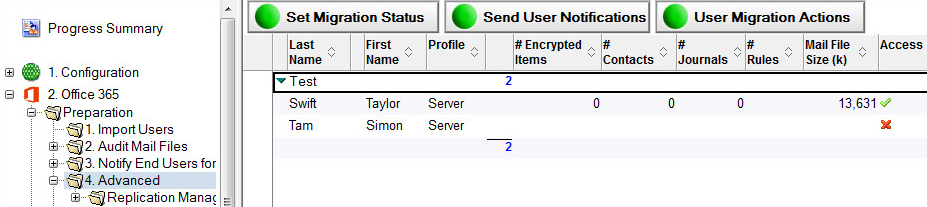

   Advanced View

Notice that the tool has audited users’ mail file size and listed the number of encrypted items, rules, contacts and journal entries (notebook entries) that each user’s mail file contains. In addition, the Data Pane also lists the people, journal (notebook) and rule count in all of the user mail files.

2.2.3 Moving the Selected Users Back to Audit Mail File Data

As soon as an audit is run, the successfully audited users are moved to the Notify step; however, you may wish to run the remaining Audit options on the users. To perform more audits, move them back to the Audit step.

2.2.4 Audit pNAB DB For Selected Users

Local Contact Data

Users’ contact data needs to be in the $PeopleGroupsFlat view in their mail file to be migrated. The local contacts’ data needs to be synchronized through Notes replication on the end users’ workstation. This can be enabled through Domino/Notes policies, but if that has not been configured you will need to send each user an email message containing a special button. When clicked, the user’s contact and personal distribution list data found in their local names.nsf will be synchronized with their mail file. This data is then stored in a hidden view called $PeopleGroupsFlat in their mail files. If the view doesn’t exist, it will be created when the user clicks the embedded button in the migration message.

Server-based Contact Data

If a user’s contact data is stored on the Domino server, then you can edit the user’s Person document to point to the location and the name of the Personal Name and Address Book (pNAB). For example, if user Bill Bell has pNAB on the Acme_mail Domino server in the Contacts folder, then his/her Person document must be edited and saved to update this information.

1. Open a user’s Person document in the Data Pane

2. Open the Additional Databases tab and either click the Edit Document button or double-click inside the document

3. Edit the PNAB Server and PNAB File Name fields. Specify the Domino server name and the full path to user's server-based personal name and address book (pNAB)

4. Click the Open link to verify whether the database can access the specified location and open the pNAB

5. Click Save & Close:

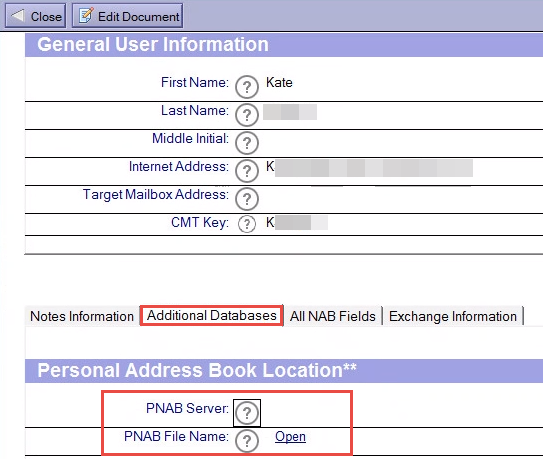

   Person Document

6. With the user selected in the Data Pane, click the Actions | Other menu option

7. Select Synchronize Address Book from the list of agents in the Run Agent dialog box, and then click OK

8. Once the Person document is edited and saved, and the contact data synchronized, select the user (Susan Johnson using the example above), and then select Audit Actions | Audit pNAB DB For Selected Users.. The server-based pNAB is validated and its size is audited and moved to the next step.



Local Contact Data

2.2 Auditing Mail Files

Next, you need to audit imported users’ mail files using the Audit Mail Files agents. This tool will check the following (depending upon selections made in the Installation and Configuration for the Required Settings) against each mail file:

• Mail file exists

• Migration Notes ID has sufficient access (see the Migrator for Notes Requirements document for more information about required access).

• Mail file size

• Number of Contacts

• Number of Encrypted Items

• Number of Rules

• Number of Journal entries (Notebook entries)

To audit mail files:

1. In the Navigation Pane, expand 2. Mail File Migration and then expand the Audit Mail Files | Audit Mail File Data view:



   Audit Mail File Data View

2. Select the user Person Documents in the Data Pane; you can either audit a select number of users or all the users at once

3. Click the Audit Actions button in the Data Pane; the Audit Actions drop-down menu displays:



   Audit Actions Drop-down Menu

4. Select one of the following options from the drop-down menu:

2.2.1 Audit workflow and delegation

1. Click the Audit workflow and delegation menu option

2. Totals will appear in the following columns:

   • Unsupported workflow - unsupported calendar recurrence patterns

   • Was Delegated - another Domino user delegated attendance

   • Delegator – the Chair delegated the meeting

   • Delegatee – the user was delegated to attend the meeting on someone’s behalf

3. The Calendar MTCW Audit Report will be populated with any meetings that the user is a Chair for, are in the Notes Integration cache range (typically 90 days from current date) and have a repeating meeting pattern that would not be supported for Outlook to Notes coexistence. This will include any meeting in the cache range including cancelled meetings.

4. If the Settings to Audit calendar unsupported patterns is enabled then the Calendar audit RTF report will be populated with any meetings that have a Notes custom pattern. This will be for meetings where the user is the Chair but can also include meetings where the user an Invitee if that option is enabled. This will not include meetings that have been cancelled. The audit can be sent to the end user through the Remediation Summary message template.

2.2.2 Audit Mail File & Personal Data For Selected Users

1. Click the Audit Mail File & Personal Data For Selected Users menu option; a message box appears indicating the number of selected users to audit

2. Click Yes

3. Depending upon the number of selected users, this process could take from a few seconds to several minutes. Upon completion, a message box confirms that auditing of the mail database is complete and all users have been promoted to the next step of migration; click OK. If no errors are found, skip to step 4.

   All errors must be fixed and then the Audit Mail File & Personal Data for Selected Users tool must be re-run without errors prior to the mail file migration. Refer to the Pre-Migration Troubleshooting appendix for common audit errors and troubleshooting steps.

Check Errors View

4. After the error is resolved, to re-audit the user, select the user in the Check Errors view and, from the Data Pane, click the Audit Actions | Audit Mail File & Personal Data For Selected Users button in the Data Pane:



   Check Errors View

5. Successfully audited users are promoted to the next step of migration (Notify)

6. To view the result of the audit, you can go to the Preparation | Advanced view in the Navigation Pane



   Advanced View

Notice that the tool has audited users’ mail file size and listed the number of encrypted items, rules, contacts and journal entries (notebook entries) that each user’s mail file contains. In addition, the Data Pane also lists the people, journal (notebook) and rule count in all of the user mail files.

2.2.3 Moving the Selected Users Back to Audit Mail File Data

As soon as an audit is run, the successfully audited users are moved to the Notify step; however, you may wish to run the remaining Audit options on the users. To perform more audits, move them back to the Audit step.

2.2.4 Audit pNAB DB For Selected Users

Users’ contact data needs to be in the $PeopleGroupsFlat view in their mail file to be migrated. The local contacts’ data needs to be synchronized through Notes replication on the end users’ workstation. This can be enabled through Domino/Notes policies, but if that has not been configured you will need to send each user an email message containing a special button. When clicked, the user’s contact and personal distribution list data found in their local names.nsf will be synchronized with their mail file. This data is then stored in a hidden view called $PeopleGroupsFlat in their mail files. If the view doesn’t exist, it will be created when the user clicks the embedded button in the migration message.

Server-based Contact Data

If a user’s contact data is stored on the Domino server, then you can edit the user’s Person document to point to the location and the name of the Personal Name and Address Book (pNAB). For example, if user Bill Bell has pNAB on the Acme_mail Domino server in the Contacts folder, then his/her Person document must be edited and saved to update this information.

1. Open a user’s Person document in the Data Pane

2. Open the Additional Databases tab and either click the Edit Document button or double-click inside the document

3. Edit the PNAB Server and PNAB File Name fields. Specify the Domino server name and the full path to user's server-based personal name and address book (pNAB)

4. Click the Open link to verify whether the database can access the specified location and open the pNAB

5. Click Save & Close:



   Person Document

6. With the user selected in the Data Pane, click the Actions | Other menu option

7. Select Synchronize Address Book from the list of agents in the Run Agent dialog box, and then click OK

8. Once the Person document is edited and saved, and the contact data synchronized, select the user (Susan Johnson using the example above), and then select Audit Actions | Audit pNAB DB For Selected Users.. The server-based pNAB is validated and its size is audited and moved to the next step.



Server-based Contact Data

2.2 Auditing Mail Files

Next, you need to audit imported users’ mail files using the Audit Mail Files agents. This tool will check the following (depending upon selections made in the Installation and Configuration for the Required Settings) against each mail file:

• Mail file exists

• Migration Notes ID has sufficient access (see the Migrator for Notes Requirements document for more information about required access).

• Mail file size

• Number of Contacts

• Number of Encrypted Items

• Number of Rules

• Number of Journal entries (Notebook entries)

To audit mail files:

1. In the Navigation Pane, expand 2. Mail File Migration and then expand the Audit Mail Files | Audit Mail File Data view:



   Audit Mail File Data View

2. Select the user Person Documents in the Data Pane; you can either audit a select number of users or all the users at once

3. Click the Audit Actions button in the Data Pane; the Audit Actions drop-down menu displays:



   Audit Actions Drop-down Menu

4. Select one of the following options from the drop-down menu:

2.2.1 Audit workflow and delegation

1. Click the Audit workflow and delegation menu option

2. Totals will appear in the following columns:

   • Unsupported workflow - unsupported calendar recurrence patterns

   • Was Delegated - another Domino user delegated attendance

   • Delegator – the Chair delegated the meeting

   • Delegatee – the user was delegated to attend the meeting on someone’s behalf

3. The Calendar MTCW Audit Report will be populated with any meetings that the user is a Chair for, are in the Notes Integration cache range (typically 90 days from current date) and have a repeating meeting pattern that would not be supported for Outlook to Notes coexistence. This will include any meeting in the cache range including cancelled meetings.

4. If the Settings to Audit calendar unsupported patterns is enabled then the Calendar audit RTF report will be populated with any meetings that have a Notes custom pattern. This will be for meetings where the user is the Chair but can also include meetings where the user an Invitee if that option is enabled. This will not include meetings that have been cancelled. The audit can be sent to the end user through the Remediation Summary message template.

2.2.2 Audit Mail File & Personal Data For Selected Users

1. Click the Audit Mail File & Personal Data For Selected Users menu option; a message box appears indicating the number of selected users to audit

2. Click Yes

3. Depending upon the number of selected users, this process could take from a few seconds to several minutes. Upon completion, a message box confirms that auditing of the mail database is complete and all users have been promoted to the next step of migration; click OK. If no errors are found, skip to step 4.

   All errors must be fixed and then the Audit Mail File & Personal Data for Selected Users tool must be re-run without errors prior to the mail file migration. Refer to the Pre-Migration Troubleshooting appendix for common audit errors and troubleshooting steps.

Check Errors View

4. After the error is resolved, to re-audit the user, select the user in the Check Errors view and, from the Data Pane, click the Audit Actions | Audit Mail File & Personal Data For Selected Users button in the Data Pane:



   Check Errors View

5. Successfully audited users are promoted to the next step of migration (Notify)

6. To view the result of the audit, you can go to the Preparation | Advanced view in the Navigation Pane



   Advanced View

Notice that the tool has audited users’ mail file size and listed the number of encrypted items, rules, contacts and journal entries (notebook entries) that each user’s mail file contains. In addition, the Data Pane also lists the people, journal (notebook) and rule count in all of the user mail files.

2.2.3 Moving the Selected Users Back to Audit Mail File Data

As soon as an audit is run, the successfully audited users are moved to the Notify step; however, you may wish to run the remaining Audit options on the users. To perform more audits, move them back to the Audit step.

2.2.4 Audit pNAB DB For Selected Users

Local Contact Data

Users’ contact data needs to be in the $PeopleGroupsFlat view in their mail file to be migrated. The local contacts’ data needs to be synchronized through Notes replication on the end users’ workstation. This can be enabled through Domino/Notes policies, but if that has not been configured you will need to send each user an email message containing a special button. When clicked, the user’s contact and personal distribution list data found in their local names.nsf will be synchronized with their mail file. This data is then stored in a hidden view called $PeopleGroupsFlat in their mail files. If the view doesn’t exist, it will be created when the user clicks the embedded button in the migration message.

If a user’s contact data is stored on the Domino server, then you can edit the user’s Person document to point to the location and the name of the Personal Name and Address Book (pNAB). For example, if user Bill Bell has pNAB on the Acme_mail Domino server in the Contacts folder, then his/her Person document must be edited and saved to update this information.

1. Open a user’s Person document in the Data Pane

2. Open the Additional Databases tab and either click the Edit Document button or double-click inside the document

3. Edit the PNAB Server and PNAB File Name fields. Specify the Domino server name and the full path to user's server-based personal name and address book (pNAB)

4. Click the Open link to verify whether the database can access the specified location and open the pNAB

5. Click Save & Close:



   Person Document

6. With the user selected in the Data Pane, click the Actions | Other menu option

7. Select Synchronize Address Book from the list of agents in the Run Agent dialog box, and then click OK

8. Once the Person document is edited and saved, and the contact data synchronized, select the user (Susan Johnson using the example above), and then select Audit Actions | Audit pNAB DB For Selected Users.. The server-based pNAB is validated and its size is audited and moved to the next step.



2.3 Sending End User Notifications

During the migration lifecycle, notices can be sent through the Migrator for Notes application to the end user community.  These may be for relaying important information, delivering end user driven action buttons or both. See the Migrator for Notes Installation and Configuration Guide for information on how to configure and customize message templates.

Send End User Notifications

Once you have determined your communications strategy and updated/created the message templates, you are ready to send them according to your communications plan and any end user processing updates required. You can send pre-migration as well as post-migration messages to end users. Pre-migration messages typically prompt users to click the embedded action button in the message to perform an action, such as decrypt the encrypted messages in users’ mail files or copy/replicate users’ local archive database to the mail server. After the end user has performed the required action, a status message is returned to the Migrator for Notes application using standard Notes Mail.

To send a notification:

1. Expand Notify End Users for Required Actions in the Navigation Pane

2. Click Send End User Notifications; depending on the setting configured in the Required Settings tab, you can either send one notification per user that will contain the selected actions/forms that you want to send to the user or send one notification per action/form per user:



   Send End User Notifications View

2.3.1 Send Notifications

1. Select all the user documents in the Data Pane to whom you want to send the notification

2. Click the Send Users Notifications button in the Data Pane

3. In the Message Templates dialog box, a list of available predefined templates is displayed. If you have created custom templates, these will also be listed; select the template you wish to send and click OK; for example, select the Migration Message – Windows Decrypt Encrypted Items message template, and then click OK:



   Message Templates Dialog Box

4. The progression message box displays; after a few seconds of processing, another message box displays confirming that notifications have been sent to selected users; click OK

5. After you have sent the first notification to the users, the users remain in the Notify step (under the Pending Responses view). The users remain in this step so that you can continue sending the rest of the notifications

2.3.2 Pending Responses

Notifications where users are required to click an embedded button in the email are processed differently. The Migration Message – Windows Decrypt Encrypted Items email template, for example, contains buttons that can be clicked by the user to perform many functions. If users don’t click the buttons, their response is considered pending and is listed in the Pending Responses view.

Pending Responses View

Responses can also be seen in the Responses view; click Responses in the Navigation Pane:

Responses View

Responses to the Archive Migrator Opt Out option can be seen by clicking Archive Migrator Responses in the Navigation Pane:

Finally, you need to check for notification transmission errors; click Check Errors:

If the user’s mail files do not move out of the Notify view, then you need to move them to the Match view using the Change Step To button. Do this when you have ensured that all the notifications have been sent, all the pending responses have been responded to, and there are no unresolved errors.
