Summary - Distributed Virtual Switch view

The Summary - Distributed Virtual Switch view illustrates the overall network utilization and the levels of overall network packet loss for a selected distributed virtual switch.

1
On the VMware Environment dashboard, on the Monitoring tab, in the Virtual Environment Overview, select the Virtual Switches tile.
2
In the Quick-View, in the Virtual Switches view, under Distributed Virtual Switches, select a virtual switch.
The Summary - Distributed Virtual Switch view appears on the right.

NetFlow is a network protocol that enables distributed virtual switches to collect IP traffic information as the data flow enters or exits an interface. These statistics can later be exported and serve as a basis for potential traffic analysis. You can enable this feature on desired distributed virtual switches.

The NetFlow data can be collected from your monitored environment only if your VMware user account includes the following privileges:

For additional information about these privileges, see your VMware documentation.

1
In the Summary - Distributed Virtual Switch view, click Configure NetFlow.
The Netflow Setting dialog box appears.

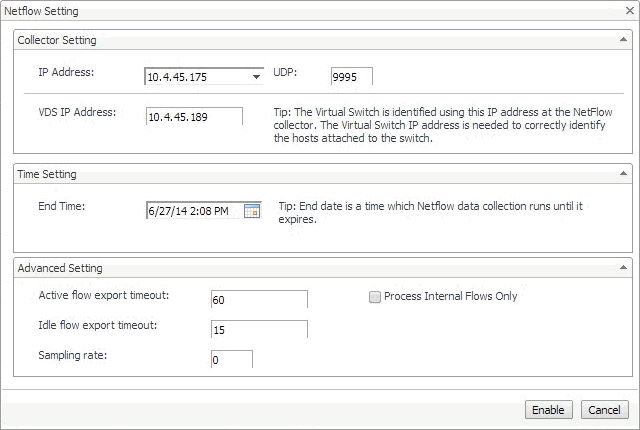

Figure 122. Netflow Setting dialog box
2
In the Netflow Setting Dialog box, provide the following information:
IP Address and UDP: Type the IP address and port number of the NetFlow collector.
VDS IP Address: Type the IP address of the distributed virtual switch.
End Time: Select the time when you want the collector to stop obtaining NetFlow data.
Active flow export timeout: Type the number of seconds after which an active data flow times out.
Idle flow export timeout: Type the number of seconds after which an idle data flow times out.
Sampling rate: Type a number indicating how often you want to collect data packets. For example, a value of 2 instructs the collector to obtain data from every second packet.
Process Internal Flows: Select this check box if you want to collect data only during network activities between virtual machines on the same host.
3
Click Enable.

This view is made up of the following embedded views:

For complete information about this view, see Alarms .

For complete information about this view, see Packet Loss .

Shows the name of the selected switch along with some basic configuration information.

Available Ports. The number of switch ports that are available for use out of the total number of ports.
Load Balancing. One or more load balancing policies, indicating how the switch routes network traffic in case of an adapter failure. For example, an uplink may choose a route based on the originating virtual port, IP hash, source MAC hash, physical NIC load, or use a specified fail over order. For more information about these policies, see your VMware documentation.
Network I/O Control. Indicates if the selected switch can use network resource pools to prioritize network traffic.
Traffic Shaping. Indicates if the traffic shaping policy is enabled or disabled on the selected switch. A traffic shaping policy can restrict the network bandwidth to a port or if a port is configured to temporarily allow transmission of data at higher than normal speeds. For more information about these policies, see your VMware documentation.
Type. The type of the switch: VMware Distributed Virtual Switch.
Version. The version number of the distributed switch component in your virtual environment.

Drill down on:

Product Information. Displays a dwell, providing additional configuration information about the selected distributed virtual switch.

To find out more about the network I/O traffic passing through the selected switch, in the dwell, on the right of Network I/O Control, click Enabled.

To find out more about the traffic shaping policy, on the right of Traffic Shaping, click Enabled.

For complete information about this view, see Related Items .

Identifies the ESX hosts with the highest network transmission rate.

Top ESX chart. For each identified ESX host, the bar chart displays the inbound and outbound transfer rates.
Top ESX table, ESX Host. The name of the ESX host identified amongst top network consumers.
Top ESX table, Key. The place of the ESX host in the list of top consumers.
Top ESX table, Receiving. The average inbound data transfer rate for an ESX host whose network traffic is managed by the selected switch.
Top ESX table, Transmitting. The average outbound data transfer rate for an ESX host whose network traffic is managed by the selected switch.

Drill down on:

Traffic Type Utilization chart. Displays the Traffic Type Utilization dialog box.
Packet Loss, Utilization chart. Displays the Utilization dialog box.

For complete information about this view, see Top VMs .

For complete information about this view, see Top VMs .

Summary - Cisco Virtual Switch view

The Summary - Cisco Virtual Switch view illustrates the overall network utilization and the levels of overall network packet loss for a selected Cisco virtual switch.

1
On the VMware Environment dashboard, on the Monitoring tab, in the Virtual Environment Overview, select the Virtual Switches tile.
2
In the Quick-View, in the Virtual Switches view, under Cisco Virtual Switches, select a virtual switch.
The Summary - Cisco Virtual Switch view appears on the right.

NetFlow is a network protocol that enables distributed virtual switches to collect IP traffic information as the data flow enters or exits an interface. These statistics can later be exported and serve as a basis for potential traffic analysis. You can enable this feature on desired Cisco virtual switches.

The NetFlow data can be collected from your monitored environment only if your VMware user account includes the following privileges:

For additional information about these privileges, see your VMware documentation.

The Netflow Setting Dialog box appears.
2
In the Netflow Setting Dialog box, provide the following information:
IP Address and UDP: Type the IP address and port number of the NetFlow collector.
VDS IP Address: Type the IP address of the distributed virtual switch.
Username and Password: Type the credentials needed to access the Cisco virtual switch.
TIP: Cisco virtual switch credentials can also be updated using the Configure Switch button on the Summary - Cisco Virtual Switch view.
End Time: Select the time when you want the collector to stop obtaining NetFlow data.
Active flow export timeout: Type the number of seconds after which an active data flow times out.
Idle flow export timeout: Type the number of seconds after which an idle data flow times out.
Sampling rate: Type a number indicating how often you want to collect data packets. For example, a value of 2 instructs the collector to obtain data from every second packet.
Process Internal Flows: Select this check box if you want to collect data only during network activities between virtual machines on the same host.
3
Click Enable.

This view is made up of the following embedded views:

For more information about these views, see Description of Embedded Views

Standard vSwitch Topology and Distributed vSwitch Topology views

The Standard vSwitch Topology View and Distributed vSwitch Topology View visualize the relationships between the objects in your environment through an interactive dependency map. The map illustrates how different components relate to each other, and the levels of the available resources available to them.

Topology views are also available for other components on the VMware Environment dashboard. For complete information about topology views, see Topology views .

1
On the VMware Environment dashboard, on the Monitoring tab, in the Virtual Environment Overview, select the Virtual Switches tile.
2
To display a standard virtual switch in the Standard vSwitch Topology View, complete the following steps.
a
In the Quick-View, in the Virtual Switches view, under Standard Virtual Switches, select a virtual switch.
b
In the Summary - Standard Virtual Switch view that appears on the right, click View Topology.
The Standard vSwitch Topology View appears in the display area.
3
To display a distributed virtual switch in the Distributed vSwitch Topology View, complete one of the following procedures.
a
In the Quick-View, in the Virtual Switches view, under Distributed Virtual Switches, select a virtual switch.
b
In the Summary - Distributed Virtual Switch view that appears on the right, click View Topology.
The Distributed vSwitch Topology View appears in the display area.
4
To display a Cisco virtual switch in the Distributed vSwitch Topology View, complete one of the following procedures.
a
In the Quick-View, in the Virtual Switches view, under Cisco Virtual Switches, select a virtual switch.
b
In the Summary - Cisco Virtual Switch view that appears on the right, click View Topology.
The Distributed vSwitch Topology View appears in the display area.

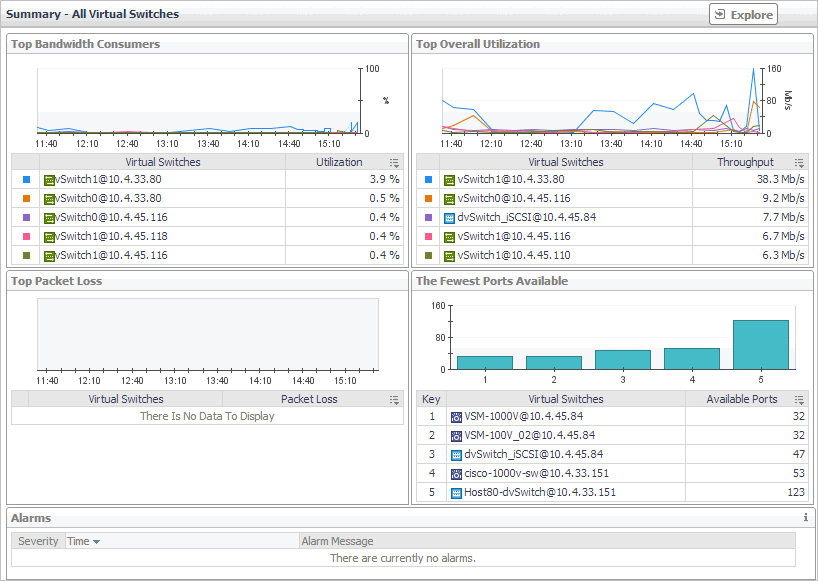

Summary - All Virtual Switches view

The Summary - All Virtual Switches view displays overall resource utilization information for a group of virtual switches and identifies the elements that consume the highest amount of system resources and may cause potential performance bottlenecks.

1
On the VMware Environment dashboard, on the Monitoring tab, in the Virtual Environment Overview, select the Virtual Switches tile.
2
In the Quick-View, in the Virtual Switches view, select All Virtual Switches.
The Summary - All Virtual Switches view appears on the right.

This view is made up of the following embedded views:

For complete information about this view, see Alarms .

Identifies the virtual switches with the highest percentage of network utilization.

Top Bandwidth Consumers chart. For each identified virtual switch, the chart displays the percentage of network resources available to it that are in use over the selected time period.
Top Bandwidth Consumers table, Virtual Switches. The name of the virtual identified amongst top bandwidth consumers.
Top Bandwidth Consumers table, Utilization. The percentage of network resources available to it the switch that is currently in use.

Drill down on:

Top Bandwidth Consumers chart. Displays the Utilization dialog box.

Identifies the virtual switches with the fewest numbers of available ports.

The Fewest Ports Available chart. For each identified virtual switch, the chart displays the number of available ports.
The Fewest Ports Available table, Available Ports. The number of ports that the virtual switch has available.
The Fewest Ports Available table, Key. The place of the virtual switch in the list of fewest available hosts.
The Fewest Ports Available table, Virtual Switches. The name of the identified virtual switch.

Drill down on:

Identifies the virtual switches with the highest network transfer rates.

Top Overall Utilization chart. For each identified virtual switch, the chart displays the network throughput rate over the selected time period.
Top Overall Utilization table, Virtual Switches. The name of the virtual switch identified amongst top network consumers.
Top Overall Utilization table, Throughput. The current rate of network throughput for the selected switch.

Drill down on:

Top Overall Utilization chart. Displays the Utilization dialog box.
Table 190. Top Packet Loss

Identifies the virtual switches with the highest percentage of data packet loss.

Top Packet Loss chart. Identifies the virtual switches with the highest percentage of packet loss over the selected time period.
Top Packet Loss table, Packet Loss. The average percentage of time the data packets sent to the identified virtual switch are not echoed back.
Top Packet Loss table, Virtual Switches. The name of the identified virtual switch.

Drill down on:

Top Packet Loss chart. Displays the Packet Loss dialog box.
