Shutting down and rebooting ESX hosts, and enabling maintenance

Use the Reboot, Shutdown, and Enable Maintenance buttons on the VMware Explorer Administration tab to perform these operations, as required.

Figure 46. Administration toolbar

To reboot an ESX host:
1
Select an ESX host object instance and open the VMware Explorer Administration tab.

*
TIP: For instructions, see To open the VMware Explorer’s Administration tab for an ESX host or virtual machine object instance: .
2
On the VMware Explorer Administration tab, click Reboot.
The Confirm reboot dialog box appears.
3
In the Confirm reboot dialog box, click Reboot.
To shut down an ESX host:
1
Select an ESX host object instance and open the VMware Explorer Administration tab.

*
TIP: For instructions, see To open the VMware Explorer’s Administration tab for an ESX host or virtual machine object instance: .
2
On the VMware Explorer Administration tab, click Shutdown.
The Confirm shutdown dialog box appears.
3
Click Shutdown.
To enable maintenance of an ESX host
1
Select an ESX host object instance and open the VMware Explorer Administration tab.

*
TIP: For instructions, see To open the VMware Explorer’s Administration tab for an ESX host or virtual machine object instance: .
2
On the VMware Explorer Administration tab, click Enable Maintenance.

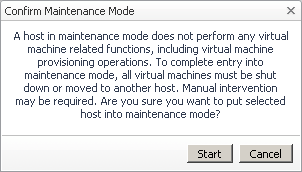

The Confirm Maintenance Mode dialog box appears.
3
Click Start.

Creating virtual machines

Use the Create VM, Edit, and Move buttons on the VMware Explorer Administration tab to perform these operations.

Figure 47. Administration toolbars

To create a virtual machine:
1
Select an ESX host object instance and open the VMware Explorer Administration tab.

*
TIP: For instructions, see To open the VMware Explorer’s Administration tab for an ESX host or virtual machine object instance: .
2
On the VMware Explorer Administration tab, click Create VM.

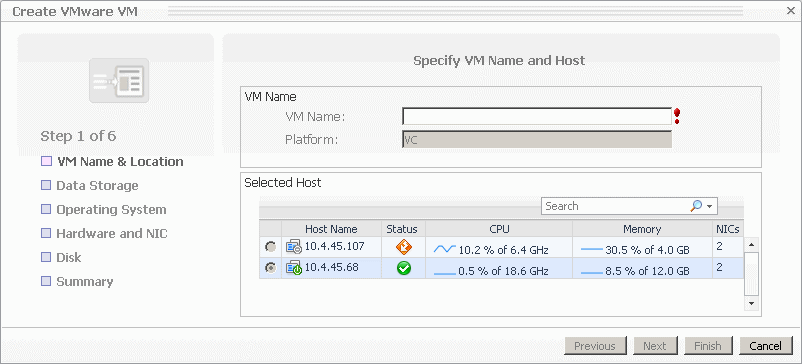

The Create VMware VM dialog box appears with the Specify VM Name and Host page open.
3
Follow the flow in the wizard by supplying the required information and clicking Next. At any point you can return to a previous step using the Previous button.
a
On the Specify VM Name and Host page, in the VM Name box, specify the name of the virtual machine that you are about to create.
b
On the Specify Data Storage page, specify the datastore that you want to associate with this virtual machine.
c
On the Guest Operating System page, select the guest OS under which you want this virtual machine to run.
d
On the Customize Hardware and Network page, define the number of CPUs and memory size that you want to allocate to the VM. If necessary, add a network adapter and assign a static or dynamic IP address.
e
On the Customize Disk(s) page, allocate disk resources to the virtual machine.
f
On the Summary page, review your settings and click Finish.
To reconfigure a virtual machine:
1
Select a virtual machine object instance and open the VMware Explorer Administration tab.

*
TIP: For instructions, see To open the VMware Explorer’s Administration tab for an ESX host or virtual machine object instance: .
2
On the VMware Explorer Administration tab, click Edit.
The Edit VMware VM dialog box appears with the VM Name & Location page open.
3
Follow the flow in the wizard by supplying the required information and clicking Next. At any point you can return to a previous step using the Previous button.
a
On the VM Name & Location page, edit the name of the virtual machine, if required.
b
On the Guest OS page, select the guest OS under which you want this virtual machine to run.
c
On the Customize CPU Usage page, edit the CPU allocation properties as required, including the number of CPUs, if the CPUs are to be shared, and the related allocation limits.
d
On the Customize Memory Usage page, edit the memory amounts that are allocated to the virtual machine.
e
On the CD/DVD Drives page, add or remove any CD or DVD drives, as required.
f
On the VM Disk page, add or remove any disks, as required.
g
On the Network page, add or remove any network adapters.
To move a virtual machine to a different server:
1
Select a virtual machine object instance and open the VMware Explorer Administration tab.

*
TIP: For instructions, see To open the VMware Explorer’s Administration tab for an ESX host or virtual machine object instance: .
2
On the VMware Explorer Administration tab, click Move.

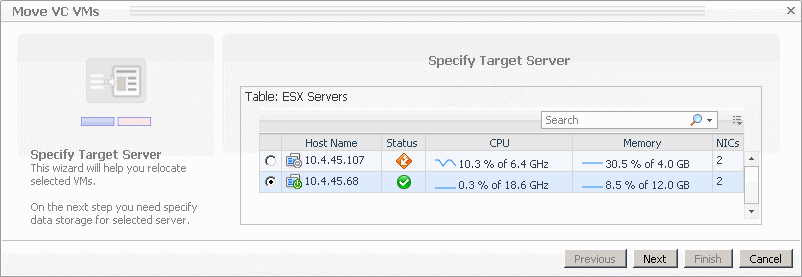

The Move VC VMs dialog box appears with the Specify Target Server page open.
3
Select the monitored ESX host to which you want to move the virtual machine and click Next.
The Move VC VMs dialog box refreshes, showing the Specify Data Storage page.
4
Specify the datastore that you want to associate with this virtual machine, and click Finish.

Suspending, rebooting and powering off virtual machines

Use the Power Off, Reboot, and Suspend buttons on the VMware Administration tab to perform these operations, as required.

Figure 48. Administration toolbar

To power off a virtual machine:
1
Select a virtual machine object instance and open the VMware Explorer Administration tab.

*
TIP: For instructions, see To open the VMware Explorer’s Administration tab for an ESX host or virtual machine object instance: .
2
On the VMware Explorer Administration tab, click Power Off.
The Power Off Virtual Machine dialog box appears.
To reboot a virtual machine:
1
Select a virtual machine object instance and open the VMware Explorer Administration tab.

*
TIP: For instructions, see To open the VMware Explorer’s Administration tab for an ESX host or virtual machine object instance: .
2
On the VMware Explorer Administration tab, click Reboot.
The Confirmation Dialog box appears.
3
Click Reboot.
To suspend a virtual machine:
1
Select a virtual machine object instance and open the VMware Explorer Administration tab.

*
TIP: For instructions, see To open the VMware Explorer’s Administration tab for an ESX host or virtual machine object instance: .
2
On the VMware Explorer Administration tab, click Suspend.
The Confirmation Dialog appears.
3
Click Suspend.
4
Click OK.

Shutting down a guest OS and switching to standby mode

Use the Shutdown OS and StandBy OS buttons on the VMware Administration tab to perform these operations, as required.

Figure 49. Administration toolbar

To shut down a guest OS:
1
Select a virtual machine object instance and open the VMware Explorer Administration tab.

*
TIP: For instructions, see To open the VMware Explorer’s Administration tab for an ESX host or virtual machine object instance: .
2
On the VMware Explorer Administration tab, click Shutdown OS.
The Confirmation Dialog appears.
3
In the Confirmation Dialog, click Shutdown.
To switch a guest OS to standby mode:
1
Select a virtual machine object instance and open the VMware Explorer Administration tab.

*
TIP: For instructions, see To open the VMware Explorer’s Administration tab for an ESX host or virtual machine object instance: .
2
On the VMware Explorer Administration tab, click StandBy OS.

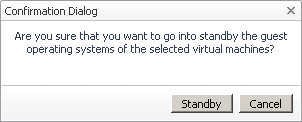

The Confirmation Dialog appears.
3
In the Confirmation Dialog, click Standby.
