VMware Explorer views

The VMware Explorer dashboard contains the following views:

•
Administration tab
•
Cost tab
•
CPU tab
•
Event Analytics tab
•
FAQts tab
•
Memory tab
•
Monitor tab
•
Network tab
•
Performance tab
•
Processes tab
•
Related Objects views
•
Resource Pools Relationship Tree view
•
Shares tab
•
Storage tab (Cluster)
•
Storage tab (Datacenter)
•
Storage tab (ESX Host)
•
Storage tab (Virtual Machine)
•
Summary tab
•
Summary (All Clusters) tab
•
Summary (All Datacenters) tab
•
Summary (All Resource Pools) tab
•
Summary (All Servers) tab
•
Summary (All Virtual Machines) tab
•
Virtual Infrastructure view
•
VMware Explorer Primary view
•
VMs tab

Administration tab

Purpose

The VMware Explorer’s Administration tab provides access to common administrative tasks. It also shows configuration details for a server or a virtual machine (depending on the selected object type), and some high-level information about the object’s resource consumption.


*
NOTE: The Administration tab is only available in Foglight Pro, when the Virtual-VMware-Admin and Virtual-HyperV cartridges are installed. It is not included with Foglight SE. In Foglight Pro, this tab is accessible if your Foglight user account includes the VMware Automation User role.

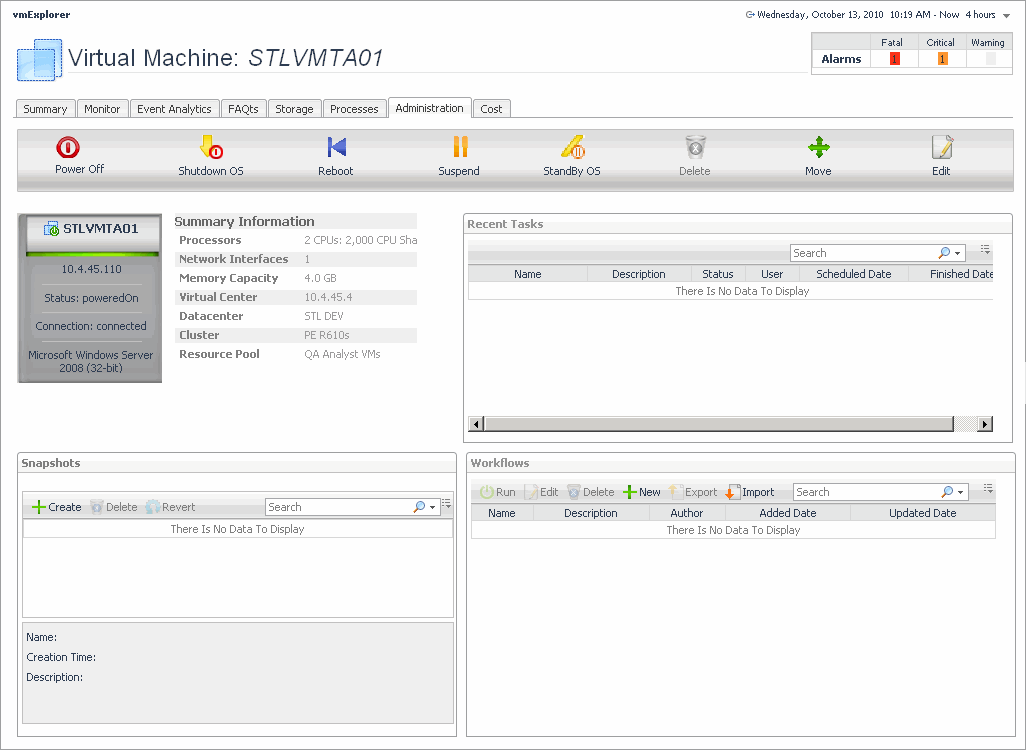

Figure 61. Administration tab

How to Get Here
1
Open the VMware Explorer.
2
On the Virtual Infrastructure view, that appears on the navigation panel, select an ESX host or virtual machine instance.
3
In the VMware Explorer, open the Administration tab.
Description of Embedded Views

This view is made up of the following embedded views:

•
Recent Tasks
•
ESX Host Configuration
•
ESX Host Summary Information
•
ESX Host Toolbar
•
Snapshots
•
Virtual Machine Configuration
•
Virtual Machines
•
Virtual Machine Summary Information
•
Virtual Machine Toolbar
•
Workflows

Table 9. Recent Tasks
Description

This table lists the tasks that are performed for the selected ESX host or virtual machine.

Data displayed
•
Description. The task description.

•
Finished Date. The date on which the task finished.

•
Name. The task name.

•
Scheduled Date. The date on which the task is scheduled to run.

•
Status. The task status.

•
User. The Foglight for VMware user who started the task.

Table 10. ESX Host Configuration
Description

Shows the basic configuration details for the selected ESX host.

NOTE: This view only appears when you are exploring ESX host details.

Table 11. ESX Host Summary Information
Description

Shows physical configuration details for the selected ESX host.

NOTE: This view only appears when you are exploring ESX host details.
Data displayed
•
Cluster. The name of the cluster to which the selected ESX host belongs, if applicable.

•
Computing Capacity. The CPU resources available to the selected ESX host.

•
Datastores. The number of datastores associated with the ESX host.

•
Memory Capacity. The memory capacity of the selected ESX host.

•
Processors. The number of CPUs used by the selected ESX host.

•
Virtual Center. The IP address of the associated vCenter.

•
Virtual Machines. The number of virtual machines running on the selected ESX host.

Table 12. ESX Host Toolbar
Description

Contains buttons for initiating common administrative tasks.

NOTE: This view only appears when you are exploring ESX host details.
Data displayed
•
Create VM. Creates a virtual machine on the selected ESX host.

•
Enable Maintenance. Enables maintenance of the selected ESX host.

•
Reboot. Reboots the selected ESX host.

•
Shutdown. Shuts down the selected ESX host.

Table 13. Snapshots
Description

Contains a hierarchical view of the selected virtual machine’s snapshots. It also contains buttons for initiating common administrative tasks.

NOTE: This view only appears when you are exploring virtual machine details.
Data displayed
•
Create. Creates a virtual machine snapshot.

•
Delete. Deletes a selected virtual machine snapshot.

•
Revert. Reverts to a selected virtual machine snapshot.

Table 14. Virtual Machine Configuration
Description

Shows the name of the selected virtual machine and its basic configuration, including its IP address, status, machine name, configuration, virtualization application (VMWare), and the guest OS.

NOTE: This view only appears when you are exploring virtual machine details.

Table 15. Virtual Machines
Description

Shows a list of virtual machines associated with the selected ESX host.

NOTE: This view only appears when you are exploring ESX host details.
Data displayed
•
CPU. The current percentage of the selected virtual machine’s CPU load, used to execute system code and user programs, based on the total CPU capacity allocated to that virtual machine.

•
Name. Virtual machine name.

•
Memory. The total amount of memory that is available to the virtual machine.

Table 16. Virtual Machine Summary Information
Description

Shows additional configuration details for the selected virtual machine.

NOTE: This view only appears when you are exploring virtual machine details.
Data displayed
•
Cluster. The name of the cluster to which the virtual machine belongs.

•
Datacenter. The name of the datacenter associated with the virtual machine.

•
Memory Capacity. The amount of memory available to the selected virtual machine.

•
Network Interfaces. The number of network interface cards used by the selected virtual machine.

•
Processors. The number of CPUs used by the selected virtual machine.

•
Resource Pool. The name of the resource pool associated with the virtual machine.

•
Virtual Center. The IP address of the Virtual Center the virtual machine belongs to.

Table 17. Virtual Machine Toolbar
Description

Contains buttons for initiating common administrative tasks.

NOTE: This view only appears when you are exploring virtual machine details.
Data displayed
•
Delete. Deletes the selected virtual machine.

•
Edit. Edits the settings of the selected virtual machine.

•
Move. Moves the selected virtual machine.

•
Power On. Starts the selected virtual machine.

•
Reboot. Restarts the selected virtual machine.

•
Shutdown OS. Shuts down the guest OS on the selected virtual machine.

•
StandBy OS. Causes the guest OS to be in standby mode.

•
Suspend. Suspends the selected virtual machine.


Table 18. Workflows
Description

This view contains a list of the available workflows along with buttons for creating and editing workflows. A workflow is a collection of tasks that are arranged into a specific order, that you can run multiple times against the same or different set of objects. It provides a way to automate common scenarios and simplify administration in general. For each workflow, this view contains its name and description, the dates on which the workflow was added and updated, and the name of the Foglight user who created the workflow. You can use this view to create, edit, delete, and run workflows, and to import or export them to a file.

NOTE: Creating or editing workflows takes you to the Workflow Studio dashboard. This dashboard is defined in Foglight for VMware for Automation. For complete details about this dashboard, see the Foglight for VMware for Automation documentation.
Data displayed
•
Added. The date on which the workflow was added.

•
Author. The name of the Foglight for VMware user who created the workflow.

•
Delete. Deletes a selected workflow.

•
Description. The workflow description.

•
Edit. Edits a selected workflow.

•
Export. Exports a selected workflow to a file.

•
Import. Imports a workflow from a file.

•
Name. The workflow name.

•
New. Creates a new workflow.

•
Run. Runs a selected workflow.

•
Updated. The date on which the workflow was updated.

Cost tab

Purpose

The VMware Explorer’s Cost tab contains information about the costs associated with the selected host’s usage. The information about these costs is provided by the cost models and host assignments that are configured in the Foglight for Chargeback. For more information about the Foglight for Chargeback, see the Managing Chargeback User and Reference Guide.

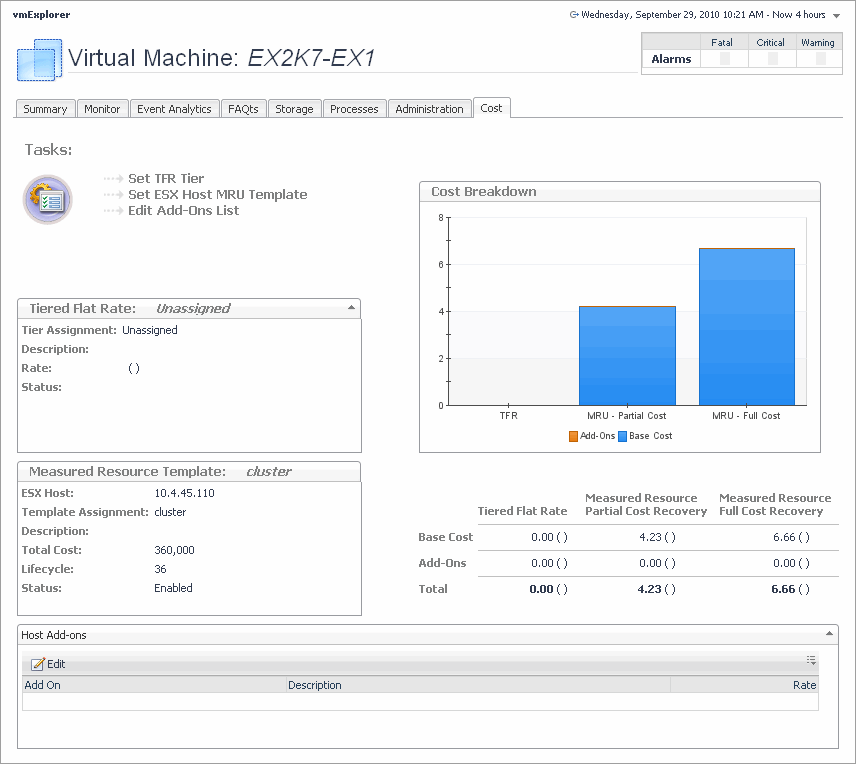

Figure 62. Cost tab

How to Get Here
1
Open the VMware Explorer.
2
On the Virtual Infrastructure view, that appears on the navigation panel, select a virtual machine instance.
3
In the VMware Explorer, open the Cost tab.
Description of Embedded Views

This view is made up of the following embedded views:

•
Cost Breakdown
•
Host Add-ons
•
Measured Resource Template
•
Tasks
•
Tiered Flat Rate

Table 19. Cost Breakdown
Description

Shows the levels of Tiered Flat Rate (TFR) and Measured Resource Utilization (MRU), including the base cost and the cost of add-on’s, if applicable.

Data displayed
•
Add-Ons. Shows the cost of upgrades to standard host configurations. These upgrades could include hardware, software, licensing, or even infrastructure items such as rack space or power backup units.

•
Base Cost. Shows the cost of a standard host configuration.

Table 20. Host Add-ons
Description

Lists the existing host add-on’s and allows you to edit the existing add-on’s. Add-on’s are upgrades to any standard host configuration. These upgrades could include hardware, software, licensing, or infrastructure items such as rack space or power backup units. Add-on’s consist of other costs incurred in the IT infrastructure.

Data displayed
•
Add-On. Contains the name of the add-on.

•
Edit. Allows you to edit a selected add-on.

•
Description. Contains the description of the add-on.

Table 21. Measured Resource Template
Description

Provides an overview of the measured resource template host assigned to the host. Measured Resource Utilization (MRU) is based on actual percentage utilizations of CPU, Memory, Network, and disk IO weight. You can create templates based on these levels.

Data displayed
•
Description. The description of the template associated with the selected virtual machine.

•
Hypervisor. The name of the server in which the virtual machine is running.

•
Lifecycle. The length of time the selected virtual machine will be used.

•
Status. The template status.

•
Template Assignment. The name of the template associated with the selected virtual machine.

•
Total Cost. The total cost of the selected virtual machine for the duration of its life cycle.

Table 22. Tasks
Description

Contains access to wizards that allow you to set up TFR tiers, MRU templates, and edit add-on’s.

Data displayed
•
Edit Add-Ons List. Starts a wizard that allows you to add add-on’s to the selected virtual machine.

•
Set MRU Template. Starts a wizard that allows you to create a measured resource template and associate it with the selected virtual machine.

•
Set TFR Tier. Starts a wizard that allows you to create tiers and associate them with the selected virtual machine. A tiered flat rate (TFR) is a pre-configured level of expense that is associated with a virtual machine.

Table 23. Tiered Flat Rate
Description

Provides an overview of the tiered flat rate assignment. A tier is a level of expense for a host machine. Using the Tiered Flat Rates (TFR) you can determine monthly costs of the selected virtual machine.

Data displayed
•
Description. The description of the tiered flat rate associated with the selected virtual machine.

•
Rate. The rate of the tier cost over time.

•
Status. The tier status.

•
Tier Assignment. The name of the tiered flat rate associated with the selected virtual machine.

CPU tab

Purpose

The VMware Explorer’s CPU tab displays the combined CPU utilization for an ESX host, showing the amount of processing speeds that are used by each virtual machine that is running on that host. This includes the amount of used processing speed, and the percentage of time the CPU resources are ready for use, all during a selected time period.

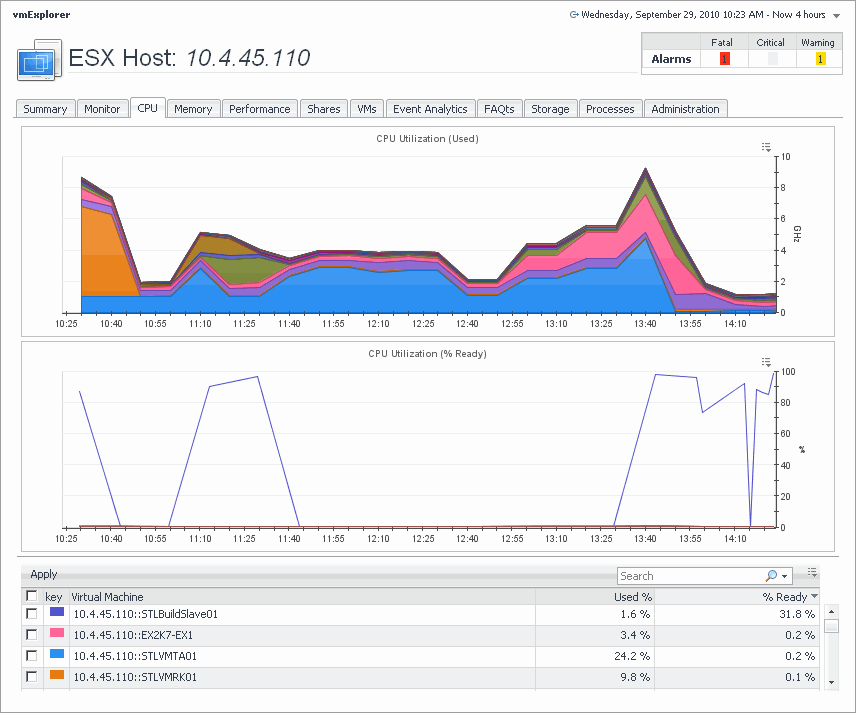

Figure 63. CPU tab

How to Get Here
1
Open the VMware Explorer.
2
On the Virtual Infrastructure view, that appears on the navigation panel, select a virtual machine instance.
3
In the VMware Explorer, open the CPU tab.
Description of Embedded Views

This view is made up of the following embedded views:

•
CPU Utilization (Used)
•
CPU Utilization (% Ready)
•
Virtual Machines

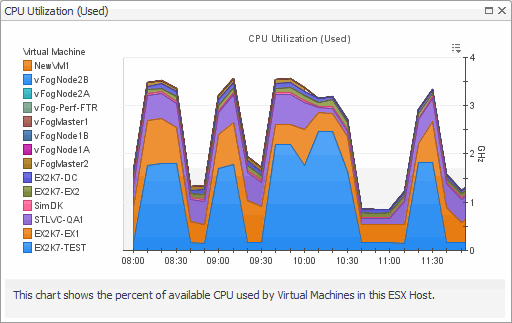

Table 24. CPU Utilization (Used)
Description

Shows the amounts of processing speed used by each virtual machine that is running on the selected ESX host during the selected time period.

Where to go next

Drill down on:


•
CPU Utilization (Used) graph. Displays additional information about the CPU utilization, indicating which virtual machines are selected and have their CPU utilization showing in the graph.

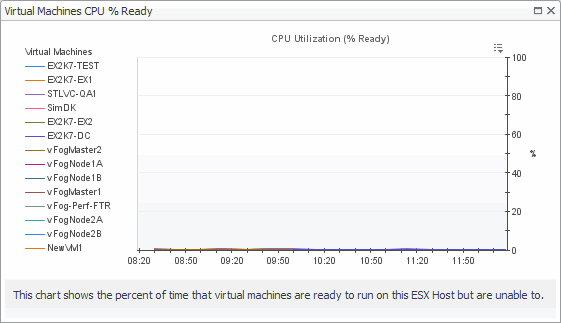

Table 25. CPU Utilization (% Ready)
Description

This view shows the percentage of time the CPU resources are ready for use by each virtual machine that is running on the selected ESX host during the selected time period.

Where to go next

Drill down on:


•
CPU Utilization (% Ready) graph. Displays additional information about the CPU resources that are ready for use, indicating which virtual machines are selected and have their CPU utilization showing in the graph.

Table 26. Virtual Machines
Description

Shows a list of all virtual machines that are running on the selected ESX host.

By default, the CPU Utilization (Used) and CPU Utilization (% Ready) graphs show the information about all virtual machines that exist in your environment. Selecting one or more virtual machines in this view and clicking Apply shows CPU utilization information for the selected virtual machines. This can help you quickly compare the statistics for two or more virtual machines, when needed.

Data displayed
•
Key. Indicates the color used in the CPU Utilization (Used) and CPU Utilization (% Ready) graphs to identify the virtual machine.

•
Used %. The percentage of time the CPU resources are ready for use by this virtual machine.

•
% Ready. The percentage of time the CPU resources are used by this virtual machine.

•
Virtual Machine. The name of the virtual machine.
