Managing chargeback

In an IT environment with a high number of physical and virtual machines, it is often important to determine the true cost of virtual machines in order to adequately plan resources for system utilization. The Chargeback tab available on the VMware Environment dashboard provides standard models, allowing you to get insight into host machine usage within a data center.

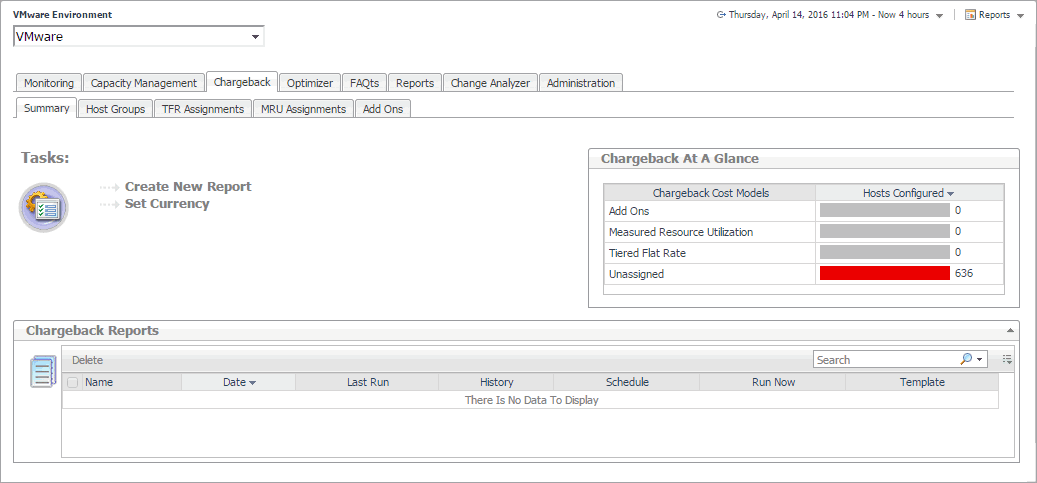

Figure 55. Chargeback tab

For complete information about this tab, see the Managing Chargeback User Guide.

Managing capacity

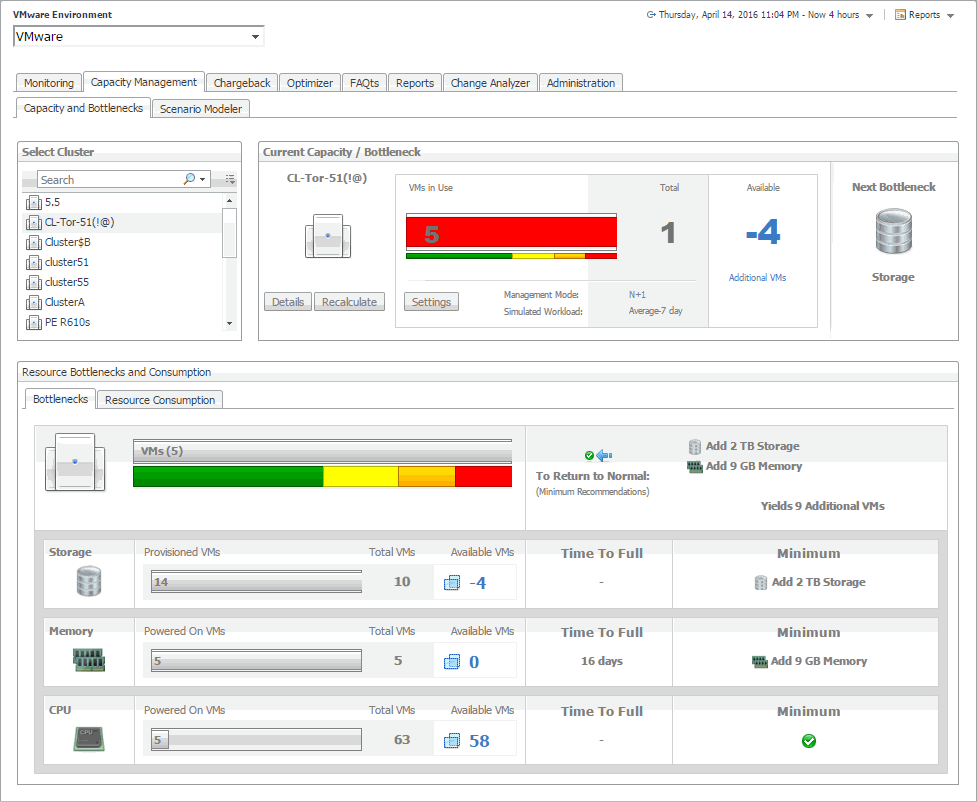

Larger distributed environments often require tools for accurately predicting resource consumption in order to plan for continuous expansion of virtual and physical machines and prevent bottlenecks in your production environment. The Capacity Management tab available on the VMware Environment dashboard allows you to get insight into capacity bottlenecks and management.

For complete information about this tab, see the Managing Capacity in Virtual Environments User Guide.

Optimizing resources

With virtual machines quickly becoming the industry standard in an IT infrastructures, making it necessary to plan for the addition of virtual machines to the physical hosts. This is often a challenge for administrators. Foglight™ Resource Optimizer simplifies the optimization process, providing waste-finding and right-sizing functionality for virtualized environments. The Optimizer tab appearing on the VMware Environment dashboard allows you to get insight into capacity bottlenecks and management. Use this tab when you want to optimize the CPU, memory, network, and storage consumption, and to project and plan for additional requirements in your environment.

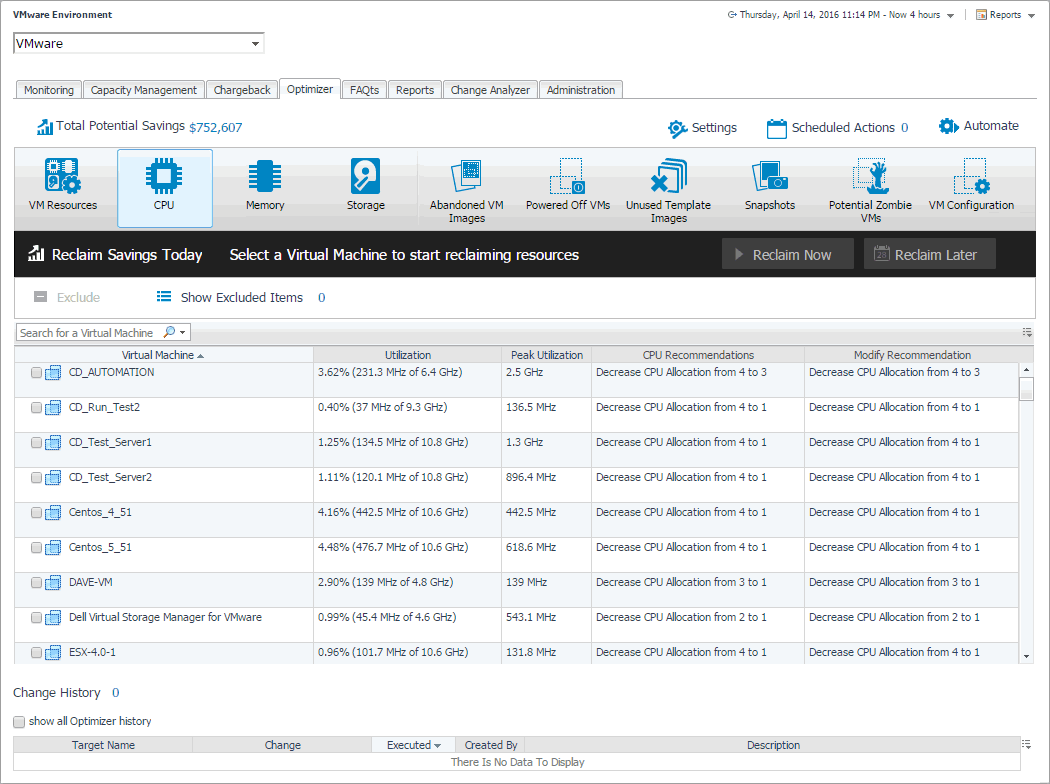

Figure 57. Optimizer tab

For complete information about this tab, see the Foglight™ Resource Optimizer for VMware Environments User Guide.

Generating reports

Generating reports

Foglight for VMware includes a report generation ability. This allows you to create reports using a set of predefined templates to report on the various aspects of your virtual environment. Foglight for VMware includes a collection of predefined report templates.

You can generate, copy, and edit reports using the Reports tab on the VMware Environment dashboard, or alternatively the Reports dashboard included with the Management Server.

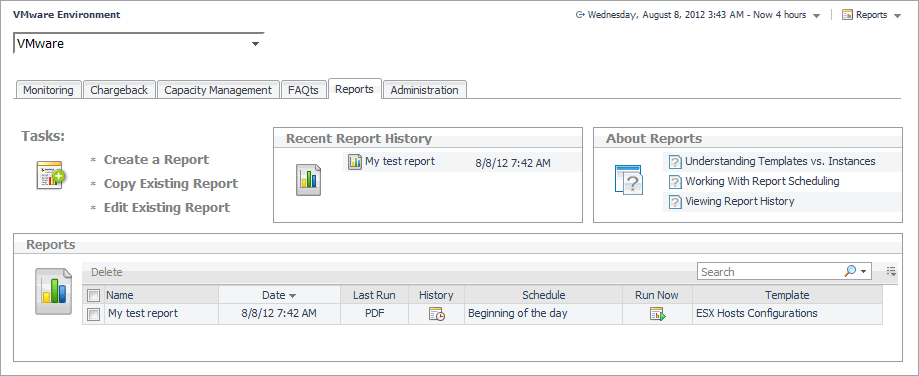

Figure 58. Reports tab

For complete information about this tab, see the Managing Capacity in Virtual Environments User Guide. For more information about the Reports dashboard, see the Foglight User Help.

You can generate, copy, and edit reports using the Reports dashboard included with the Management Server. For more information, see the Foglight User Help.

The following templates are available with Foglight for VMware.

ESX Host

Shows the capacity of one or more datastores.

ESX Host

Shows, for a specified datastore, its usage per-ESX Host.

ESX Host

Contains the capacity and performance details for the selected ESX Host.

ESX Host

Summarizes the capacity and performance details of the selected ESX Host.

VirtualCenter

Shows the configurations for the ESX Hosts in the selected vCenter.

Service

Contains the network performance details for the ESX Hosts in the selected service.

Service

Contains the performance details for the ESX Hosts in the selected service.

Service

Summarizes the performance details of the ESX Hosts in the selected service.

Service

Shows the top 5 and bottom 5 ESX Hosts for queue and total disk latency over a user-specified time range. The report takes into consideration only the ESX Hosts in the service specified.

Datacenter

Contains the summary details for the ESX Servers contained within the selected datacenter.

Service

Contains the summary details for the ESX Hosts contained within the selected service.

VirtualCenter

Contains the summary details for the ESX Servers managed by the selected vCenter.

Service

Shows the top N and bottom N ESX Hosts based on CPU utilization, CPU percent ready, memory utilization, disk transfer rate, and network transfer rate over a user-specified time range. The value of N is also user-specified. The report takes into consideration only the ESX Hosts in the service specified.

Service

Shows the top 5 and bottom 5 ESX Hosts based on CPU utilization, CPU percent ready, memory utilization, disk transfer rate, and network transfer rate over a user-specified time range. The report takes into consideration only the ESX Hosts in the service specified.

Cluster

Contains the capacity details for the ESX Servers contained within the selected cluster.

Datacenter

Contains the capacity details for the ESX Servers contained within the selected datacenter.

Service

Contains the capacity details for the ESX Servers in the selected service.

VirtualCenter

Contains the capacity details for the ESX Servers managed by the selected vCenter.

Service

For all of the open snapshots for each virtual machine in the specified service. Open snapshots are those with no child snapshots.

VirtualCenter

Lists the powered off virtual machines in a specified vCenter.

Service

For all of the snapshots older than N days for each virtual machine in the specified service. The value of N is user-specified with a default value of 100. All snapshots are included in the report.

Service

Shows the virtual machine host changes for a given service.

VirtualCenter

This template can be used to generate a report that contains the alarm (or event) history for the selected vCenter object.

Datastore

Shows the capacity of the selected datastores and lists the ESX Servers and virtual machines that are connected to them. Information about the logical and physical disks on the virtual machines is also displayed in this report.

N/A

Summarizes your virtual infrastructure, so that you can be sure you are in compliance with the Foglight for VMware license.

Service

Shows, for a given service, the CPU usage for virtual machines and the percent of time those virtual machines were waiting on CPU cycles.

ESX Server

Shows, for a given set of ESX Servers, or for all ESX Servers if none are specified, the CPU usage for virtual machines and the percentage of time those virtual machines were waiting on CPU cycles.

Virtual Machine

Lists virtual machines along with the status of their VMware Tools installation.

Service

Shows the top N and bottom N virtual machines based on available CPU and memory over a user-specified time range. The value of N is also user-specified. The report takes into consideration only the virtual machines in the service specified.

Service

Shows the top 5 and bottom 5 virtual machines based on available CPU and memory over a user-specified time range. The report takes into consideration only the virtual machines in the service specified.

VirtualCenter

Shows the configurations for the virtual machines in the selected vCenter.

Virtual Infrastructure

Shows the number of virtual machines configured and the number of virtual machines powered on during a user-specified time range. The report displays the data in separate tables based on clusters and standalone ESX hosts. In addition, the report provides this information on a per-cluster and per-server basis. The report takes into consideration the clusters and standalone ESX hosts of the whole virtual infrastructure; it is not based on a specific service.

Virtual Infrastructure

Shows the number of virtual machines configured and the number of virtual machines powered on during a user-specified time range. The report displays the data in separate tables based on clusters and standalone ESX hosts. The report takes into consideration the clusters and standalone ESX hosts of the whole virtual infrastructure; it is not based on a specific service.

VirtualCenter

Shows relevant details for all virtual machines that have X percent or less free storage available. The value of X is user-specified.

VirtualCenter

Summarizes relevant details for all virtual machines that have X percent or less free storage available. The value of X is user-specified.

VirtualCenter

Shows relevant details for all virtual machines that have X percent or more free storage available. The value of X is user-specified.

VirtualCenter

Summarizes relevant details for all virtual machines that have X percent or more free storage available. The value of X is user-specified.

Service

Contains the network performance details for the virtual machines in the selected service.

Virtual Machine

Shows the capacity and usage of logical and physical disks on the selected virtual machines.

Service

Shows the top N and bottom N virtual machines based on CPU-used Hz, CPU percent ready, memory consumed, disk growth rate, disk transfer rate, and network transfer rate over a user-specified time range. The value of N is also user-specified. The report takes into consideration only the virtual machines in the service specified.

Service

Shows the top 5 and bottom 5 virtual machines based on CPU-used Hz, CPU percent ready, memory consumed, disk growth rate, disk transfer rate, and network transfer rate over a user-specified time range. The report takes into consideration only the virtual machines in the service specified.

VirtualCenter

Shows relevant details for all virtual machines that have X percent or less overallocated memory. The value of X is user-specified.

VirtualCenter

Shows relevant details for all virtual machines that have X percent or more overallocated memory. The value of X is user-specified.

Service

Shows the status of the VMware tools for the existing virtual machines and suggests required actions. The report takes into consideration only the virtual machines associated with the selected service.
