Foglight for Storage Management Shared 4.6.5 - Installation Guide

Getting Started Configuring Agents to Monitor Storage Devices
Brocade SAN Switches Cisco SAN Switches Dell Compellent Arrays Dell EqualLogic PS Series Array Groups EMC CLARiiON CX Series Arrays (CLI) EMC CLARiiON, VNX, or VMAX Storage Arrays (SMI-S) EMC Isilon EMC VPLEX Hitachi Data Systems AMS, USP, and VSP HP EVA Storage Arrays HP 3PAR Arrays NetApp Filers Collection Target Support Matrix Configuration Procedures
Managing Agents

Arrays Discovered Targets Tab

From this page, you can change which arrays should or should not be collected through the management host.

Figure 9. Arrays Discovered Targets tab

The following procedures allow you to disable/enable arrays from being monitored.

Disable/Enable Array Targets
1
Click the storage array name so the corresponding icon is checked or cleared, and click Save.
The Saving message box displays error messages.
2
Click OK.
The properties are saved.

Managing CLARiiON Domains and Arrays

The Array Details tab allows you to discover arrays in additional domains, and rediscover new arrays added to existing domains. For more information, see EMC CLARiiON CX Series Arrays (CLI).

Figure 10. Array Details

Managing the Hitachi Tuning Manager

The HDS Tuning Manager Settings tab allows you to enable or disable collection from the Hitachi Tuning Manager (on Windows). For information about Hitachi Tuning Manager requirements and metrics, see Hitachi Data Systems AMS, USP, and VSP.

Figure 11. HDS Tuning Manager Settings

From this tab you can edit settings for the HDS Tuning Manager.

To enable the Tuning Manager:
1
Click Edit Settings for HDS Tuning Manager.

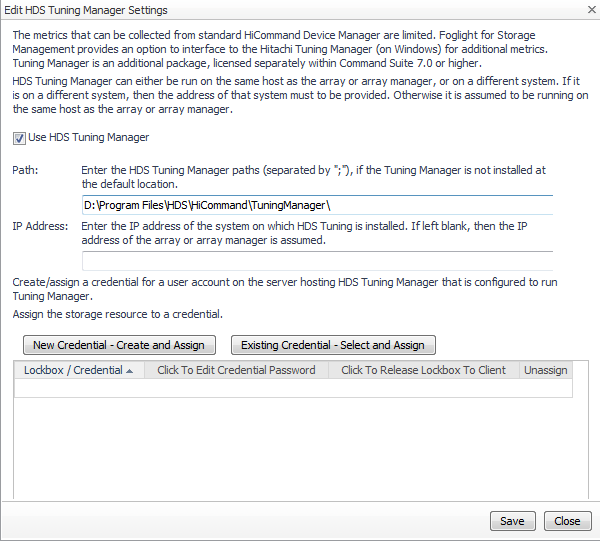

The Edit Tuning Manager Settings dialog box opens.
2
Select the Use HDS Tuning Manager check box. Provide a path if the HDS Tuning Manager is not installed at the default location. (This example shows a non-default path).
3
Create a new credential or assign an existing credential to access the Tuning Manager. For help on this task, see Assigning Credentials.
4
Click Save.
The Updating and Validating Connectivity message box opens.
5
If the validation completes with no errors, click OK, then click Cancel to exit this dialog box.
If the validation encounters an error, click the Error label to display the error. Fix the problem, then click Save to try and validate again.
To disable the Tuning Manager:
1
Click Edit Settings for HDS Tuning Manager.
The Edit HDS Tuning Manager Settings dialog box opens.
2
Clear the Use HDS Tuning Manager check box.
3
Click Save.
4
In the Updating and Validating Connectivity message box, click OK.
5
Click Cancel to exit this dialog box.

Deploying Storage Agents after an Upgrade

After the StorageCollector cartridge is updated, (using the Installed Cartridge dashboard), it needs to be deployed to the Agent Manager(s) that have agents of this type. Deployment should be done from the Storage Environment Administration dashboard.

Using the Update Agent function on the Storage Environment Administration tab will ensure that updates to the StorageCollector agent remain in synch with updates to the embedded database.

After the upgrade completes successfully, the Storage Collector Agents view may show that the agents are not active. This is a temporary state, while the agents are being upgraded with the new code.
