Accessing the Foglight for Exchange dashboards

To access the dashboards:
1
On the navigation panel, under Dashboards, click the expansion state box to the left of Exchange.
2
Click one of the dashboard items.
•
Click Exchange Alarms to display a list of the current alarms triggered within Foglight for Exchange.
•
Click Exchange Environment to display the Exchange Environment dashboard, which includes the following tabs:
•
Monitoring: displays a summary of the Exchange servers being monitored and their current state.
•
Health Check: displays the health state of clusters and servers in your environment.
•
Administration: allows you to perform administrative tasks, including:
•
Deploy the Exchange agent package, create and activate Exchange agents, and start or stop collecting data.
•
View and manage rules that exist in your environment.
•
View a list of diagnostic tests that are available, as well as run a test immediately or define a schedule for when a test is to be run.
•
View, edit and enable/ disable the optional metric collections that are configurable for Exchange agents.
•
Reports: allows you to build, view, and manage custom reports.
•
FAQts: displays questions relating to a selected object.
•
Click Exchange Explorer to display performance metrics and alarms for an Exchange server or group of servers.
•
Click Rule Management to view and manage Foglight for Exchange rules.

Exchange Alarms dashboard

The Exchange Alarms dashboard shows the alarms that have been triggered but not cleared within Foglight for Exchange. It can be used to isolate alarms specific to your Exchange environment.

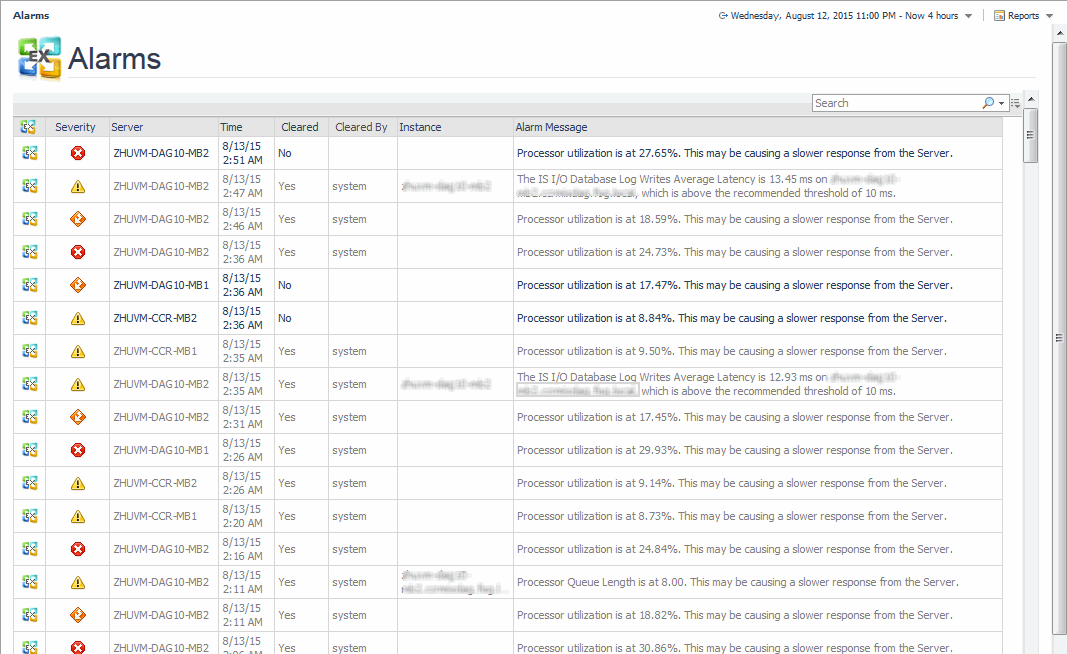

Figure 6. Exchange Alarms dashboard

The Alarms List on this view is a sortable list that displays the outstanding Foglight for Exchange alarms. Each alarm row in the Alarms List contains the following information.


Table 2. Alarms List information

Severity

The icon in this column indicates the severity of the alarm.

Server

Displays the name of the Exchange server where the alarm occurred. Clicking the server name displays a popup menu where you can choose to view details about the selected server in either the Exchange Explorer dashboard or Quick View in the Exchange Environment dashboard.

Time

Displays the date and time when the alarm occurred.

Cleared

Displays whether the alarm was cleared.

Cleared by

For cleared alarms, displays the users who cleared the alarm.

Instance

Displays the topology object instance name that triggered the alarm.

Alarm Message

Displays the alarm message.

Clicking an alarm’s severity icon, object icon, alarm message, or time displays a popup where you can acknowledge or clear the alarm. This popup provides pertinent information about the selected alarm, such as the rule of origin of the alarm, the history of the alarm, and all of the notes attached to the alarm. For more information about managing alarms, see the Foglight User Guide or online help.

Exchange Environment dashboard

The Exchange Environment dashboard includes the following tabs:

•
Monitoring: displays the health state of clusters and servers in your environment. For details, see Exchange Environment > Monitoring tab.
•
Health Check: displays clusters and servers health state. For details, see Exchange Environment > Health Check tab.
•
Administration: allows you to perform administrative tasks, including:
•
Deploy the Exchange agent package, create and activate Exchange agents, and start or stop collecting data.
•
View and manage rules that exist in your environment.
•
View a list of diagnostic tests that are available, as well as run a test immediately or define a schedule for when a test is to be run.
•
View, edit and enable/ disable the optional metric collections that are configurable for Exchange agents.
•
Run a script for configuring Exchange agent settings.

*
NOTE: In a federated environment, the administrative tasks and Agents view are available only on the Federated Children and not on the Foglight Federation Master.
For details, see Exchange Environment > Administration tab.
•
Reports: allows you to manage custom Exchange reports. For details, see Exchange Environment > Reports tab.
•
FAQts: displays questions relating to a selected object. For details, see Exchange Environment > FAQts tab.

Exchange Environment > Health Check tab

The Health Check tab displays the health state of clusters and servers in your environment. This tab consists of the following views:

•
Cluster Health Check
•
Server Status
Cluster Health Check

Click the Cluster Health Check link at the top of the tab, to display the Cluster Health Check view.

Figure 7. Cluster Health Check view

The following table lists the information displayed in the report.


Table 3. Cluster Health Status view - information
Column
Description

Cluster

Cluster name.

Server Name

Name of the Exchange servers included in the cluster.

Storage Group/Database

Exchange cluster storage group or database name.

Active Copy

Cluster copy state (active or passive).

Replication State

Health state for cluster replication state.

Copy Queue Length

Health state for cluster copy queue length on a passive node.

Replay Queue Length

Health state for cluster replay queue length on a passive node.

Content Index State

Health state for cluster content index state.

To search for a particular cluster, type the cluster name on the Search box at the top right corner of the view, then press Enter.

Server Status

Click the Server Status link at the top of the tab, to display the Server Status view.

Figure 8. Server Status view

The following table lists the information displayed in the report.


Table 4. Server Status view - information
Column
Description

Host Metrics

Server

Server name.

Service

Indicates if Exchange services are running.

CPU

Health state for the host CPU.

Storage

Health state for the host storage.

Network

Health state for the host network.

Memory

Health state for the host memory.

Mailbox

MAPI

Health state for the Outlook MAPI feature.

Hub Transport

SMTP

Health state for the SMTP feature.

Send Queue

Health state for the hub transport send queue.

Unreachable Queue

Health state for the hub transport unreachable queue.

Poison Queue

Health state for the hub transport poison queue.

Client Access

OWA

Health state for the OWA feature.

ActiveSync

Health state for ActiveSync.

EWS

Health state for the Exchange Web Service.

To search for a particular server, type the server name on the Search Server box at the top right corner of the view, then press Enter.
