SharePlex 11.2 - Reference Guide

About this guide Conventions used in this guide Revision History SharePlex Commands for Oracle SharePlex Commands for PostgreSQL SharePlex parameters General SharePlex utilities Oracle Cloud Infrastructure SharePlex environment variables

trace post

Use the trace post command to output Post processing and performance statistics to a trace file.

The Post trace includes:

  • Details of the trace itself
  • Statistics on transaction activity
  • Detail statistics per operation type

Usage

Supported sources: Oracle
Supported targets: All
Authorization level: Operator (2)
Issues for: target system
Related commands: trace capture, trace read

Syntax

Basic command Command options Remote options
trace post

[minutes]

[for datasource-datadest]

[queue queuename]

[ on host |

on host:portnumber |

on login/password@host |

on login/password@host:portnumber ]

Syntax description
Component Description
minutes

The number of minutes for which you want to run the trace. The default is 15 minutes.

for datasource-datadest

Constrains the trace to a specific Post process, as identified by the source and target datastores.

  • Required if running multiple Post processes in the same SharePlex instance (replication from different sources) or if running multiple Post processes to different target databases. Must follow minutes, if used.
  • datasource is expressed as o.SID where SID is an ORACLE_SID.

  • datadest is expressed as one of the following, depending on the target:

    o.ORACLE_SID

    r.database_name

    x.kafka

    x.jms

    x.file

queue queuename

Constrains the trace to the Post process that is associated with the specified named queue.

Remote options

These options enable you to issue the command on a remote machine and to script commands that include a login name, password, port number, or combination of those items.

Option Description
on host

Execute the command on a remote system (one other than the one where the current sp_ctrl session is running). You are prompted for login credentials for the remote system. If used, must be the last component of the command syntax.

Example: sp_ctrl(sysB)>status on SysA

on host:portnumber

Execute the command on a remote system when a remote login and port number must be provided. If used, must be the last component of the command syntax.

Example: sp_ctrl(sysB)>status on SysA:8304

on login/password@host

Execute the command on a remote system when a remote login, password, and host name must be provided. If used, must be the last component of the command syntax.

Example:sp_ctrl(sysB)>status on john/spot5489@SysA

on login/password@host:portnumber

Execute the command on a remote system when a remote login, password, host name, and port number must be provided. If used, must be the last component of the command syntax.

Example: sp_ctrl(sysB)>status on john/spot5489@SysA:8304

Output

When the trace is complete, the process writes the trace data to a file in the log subdirectory of the variable-data directory in the following format:

process_id_trace_time

For example:

orcl_orcl2_opo_trace_Feb_5_17_24_2014

where: orcl is the source datasource and orcl2 is the target datasource and opo is the name for the Post process.

Example

The following command runs the trace for datasources myora and myora2 for one minute.

trace post 1 for myora-myora2

This command produces trace output similar to the following:



trace read

Use the trace read command to output Read processing and performance statistics to a trace file.

The Read trace includes:

  • Details about queries that were made to obtain the values of keys
  • Statistics to show the time that Read spend on various processing tasks

Usage

Supported sources: Oracle
Supported targets: All
Authorization level: Operator (2)
Issues for: source system
Related commands: trace capture, trace post

Syntax

Basic command Command options Remote options
trace read

[minutes]

[for datasource]

[ on host |

on host:portnumber |

on login/password@host |

on login/password@host:portnumber ]

Syntax description
Component Description
minutes

The number of minutes for which you want to run the trace. The default is 15 minutes.

for datasource The datasource for which you want to run the trace. Only required if running multiple Capture and Read processes in the same SharePlex instance. Must follow minutes, if used.
Remote options

These options enable you to issue the command on a remote machine and to script commands that include a login name, password, port number, or combination of those items.

Option Description
on host

Execute the command on a remote system (one other than the one where the current sp_ctrl session is running). You are prompted for login credentials for the remote system. If used, must be the last component of the command syntax.

Example: sp_ctrl(sysB)>status on SysA

on host:portnumber

Execute the command on a remote system when a remote login and port number must be provided. If used, must be the last component of the command syntax.

Example: sp_ctrl(sysB)>status on SysA:8304

on login/password@host

Execute the command on a remote system when a remote login, password, and host name must be provided. If used, must be the last component of the command syntax.

Example:sp_ctrl(sysB)>status on john/spot5489@SysA

on login/password@host:portnumber

Execute the command on a remote system when a remote login, password, host name, and port number must be provided. If used, must be the last component of the command syntax.

Example: sp_ctrl(sysB)>status on john/spot5489@SysA:8304

Output

When the trace is complete, the process writes the trace data to a file in the log subdirectory of the variable-data directory in the following format:

process_id_trace_time

For example:

orcl_ord_trace_Sep30_13_07_2014

where: orcl is the datasource and ord is the name for the Read process.

Example

The following command runs the trace for datasource myora for one minute.

trace read 1 for myora

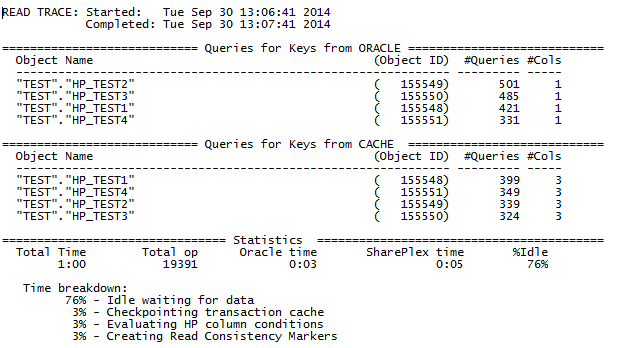

This command produces trace output similar to the following:



truncate log

Use the truncate log command to truncate (remove all data from) the Event Log and trace log files in the log sub-directory in the SharePlex variable-data directory. These logs accumulate data and eventually can consume a large amount of disk space. The truncate log command allows you to truncate the logs after the data has outlived its usefulness. This command does not affect replication. You can issue it while replication is active and data is in the queues.

Truncating logs when sp_eventmon is running

When the sp_eventmon monitoring script is running, issue the truncate log command and then delete the sp_cop_name.mrk file, where sp_cop_name is the value used in the -s argument when the script was run. This file is in the util sub-directory of the SharePlex product directory.

Important: The truncate log command deletes all entries from the logs. Quest Technical Support refers to the information in the logs when you make a support call, so try to retain the data as long as possible.

Usage

Supported sources: Oracle
Supported targets: All
Authorization level: Administrator (1)
Issued for: source or target system
Related commands: none

Syntax

Basic command Remote options
truncate log

[ on host |

on host:portnumber |

on login/password@host |

on login/password@host:portnumber ]

Remote options

These options enable you to issue the command on a remote machine and to script commands that include a login name, password, port number, or combination of those items.

Option Description
on host

Execute the command on a remote system (one other than the one where the current sp_ctrl session is running). You are prompted for login credentials for the remote system. If used, must be the last component of the command syntax.

Example: sp_ctrl(sysB)>status on SysA

on host:portnumber

Execute the command on a remote system when a remote login and port number must be provided. If used, must be the last component of the command syntax.

Example: sp_ctrl(sysB)>status on SysA:8304

on login/password@host

Execute the command on a remote system when a remote login, password, and host name must be provided. If used, must be the last component of the command syntax.

Example:sp_ctrl(sysB)>status on john/spot5489@SysA

on login/password@host:portnumber

Execute the command on a remote system when a remote login, password, host name, and port number must be provided. If used, must be the last component of the command syntax.

Example: sp_ctrl(sysB)>status on john/spot5489@SysA:8304

typemap

Use the typemap command to show data type mappings. The data type map is used to map the data type of a column on the source to a corresponding data type on the target. SharePlex uses the data type map when replicating DDL and when creating tables on the target. For example, Post uses the data type map corresponding to the source-target combination to determine the data type of the target column when it replicates ALTER TABLE...ADD COLUMN DDL operations.

The data type map contains a list of rules for the source-target combination. Each rule has a pattern that Post uses to match against the source data type. If the pattern matches, the corresponding pattern is used to construct the target data type.

Example rules
Source Target
CHAR(n) VARCHAR(n) Any column defined as CHAR in DDL from the source is mapped to VARCHAR on the target with the same length (n).
VARCHAR(4000:) CLOB Any column defined as VARCHAR with a length greater than or equal to 4000 is mapped to a CLOB datatype on the target.

To show data type map: Use the show option to view the current typemaps.

Usage

Supported sources: Oracle
Supported targets: All
Authorization level: Operator (2)
Issues on: target system
Related commands:

connection, target

Syntax

Basic command Command options Remote options

typemap show

[source-target] Not available
Syntax description
Component Description

show

Use this option to display part or all of the current typemap information.

Examples:

typemap show displays all typemaps

typemap show oracle-sqlserver displays the Oracle to SQL Server typemap.

source-target

source-target specifies the source-target map to show.
