Quick-View

The Quick-View displays summary information about the objects you select from the Virtual Environment Overview, which is also available on the Virtual Environment Summary dashboard.

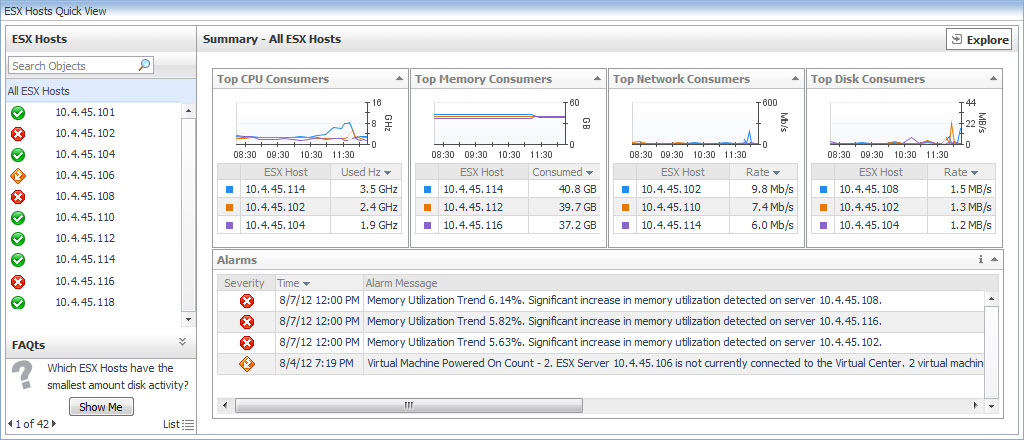

Figure 108. Quick-View

The Quick-View is made up of two embedded views—the Object Tree view and the Object Summary view. Depending on what is selected in the Object Tree view, the Object Summary view, located at the right of the Quick-View, displays summary information for either a single object or for a group of objects of a particular type.

The Quick-View appears in the middle of the display area.

Resource Pool Summary view

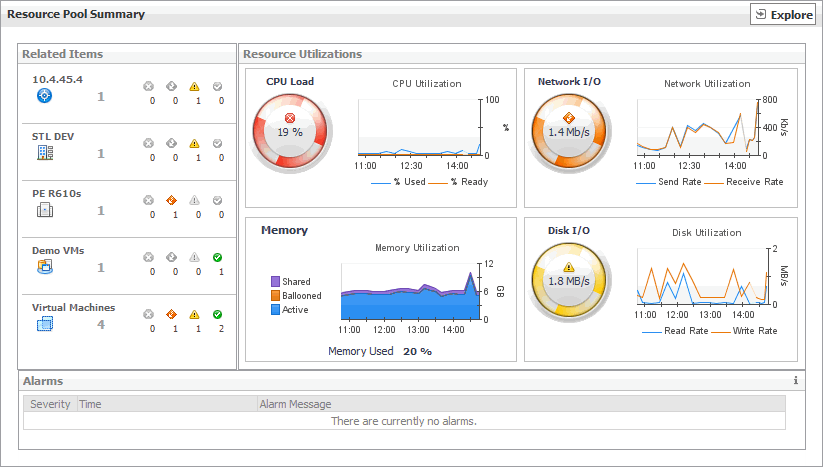

The Resource Pool Summary view shows the overall resource utilization and the amounts of system resource consumption for a physical resource pool.

1
On the VMware Environment dashboard, on the Monitoring tab, in the Virtual Environment Overview, select the Resource Pools tile.
2
In the Quick-View, select a resource pool node in the Resource Pools view.
The Resource Pool Summary view appears on the right.

This view is made up of the following embedded views:

Table 152. Alarms

Lists the alarms generated against the selected resource pool.

Alarm Message. An explanation about why the alarm occurred.
Severity. Indicates the alarm severity: Warning, Critical, or Fatal.
Time. The time when the alarm was generated.

Drill down on:

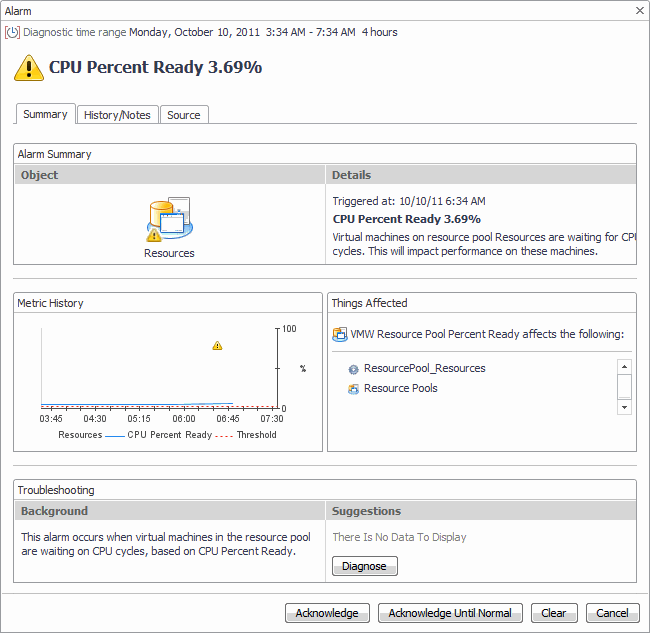

Alarm Message, Severity, or Time. Displays the Alarm dialog box, showing additional information about the alarm. For more information about alarms in Foglight, see the Foglight User Help.
Table 153. Related Items

Shows the numbers and states of the selected resource pool and other components associated with the resource pool.

Cluster. The name of the cluster associated with the selected resource pool, followed by the related alarm counts.
Datacenter. The name of the datacenter associated with the selected resource pool, followed by the related alarm counts.
Resource Pools. The name of the selected resource pool, followed by the related alarm counts.
Virtual Center. The name of the virtual center associated with the selected resource pool, followed by the related alarm counts.
Virtual Machines. The number of virtual machines that are associated with the selected resource pool, followed by the related alarm counts.

Drill down on:

Alarm count. Displays the Alarms dialog box that shows a list of all related alarms. For each alarm entry, it shows its severity, the time at which it was triggered, the rule name that triggered the alarm, and the alarm message.
Cluster. Displays the Clusters Inventory dwell, showing the name and state of the cluster associated with the selected resource pool.
Datacenter. Displays the Datacenters Inventory dwell, showing the name and state of the datacenter associated with the selected resource pool.
Resource Pool. Displays the Resource Pools Inventory dwell, showing the name and state of the selected resource pool.
Virtual Center. Displays the Virtual Centers Inventory dwell, showing the name and state of the virtual center associated with the selected resource pool.
Virtual Machines. Displays the Virtual Machines Inventory dwell, showing the names and states of all virtual machines that are associated with the selected resource pool.

Shows the resource consumption for the selected resource pool broken down into four simple views.

CPU Load. The current percentage of the selected resource pool’s CPU load, used to execute system code and user programs, based on the total CPU capacity.
CPU Utilization, % Ready. The percentage of the resource pool’s CPU resources that is ready to execute system code and user programs during the selected time period.
CPU Utilization, % Used. The percentage of the CPU utilization used by the resource pool to execute system code and user programs, during the selected time period.
Disk I/O. The current disk I/O rate for the selected resource pool.
Disk Utilization, Read Rate. The rate at which the resource pool reads data from the disk during the selected time period.
Disk Utilization, Write Rate. The rate at which the resource pool writes data to the disk during the selected time period.
Memory Usage. The current percentage of the average memory usage by the selected resource pool, based on the total memory capacity.
Memory Utilization, Active. The amount of the available memory used by the selected resource pool during the selected time period.
Memory Utilization, Ballooned. The amount of physical memory that is actively being used by the VMware Memory Control Driver to allow the guest OS to selectively swap memory.
Memory Utilization, Shared. The amount of the virtual machine memory that is freed up due to transparent page sharing.
Memory Utilization, Swapped. The amount of memory that is stored in disk swap space
Network I/O. The current rate at which the selected resource pool transfers data from and to the network.
Network Utilization, Receive Rate. The rate at which the selected resource pool receives data from the network during the selected time period.
Network Utilization, Send Rate. The rate at which the selected resource pool sends data to the network during the selected time period.

Drill down on:

CPU Load spinner. Displays the CPU Load dialog box.
CPU Utilization graph. Displays the CPU Utilization dialog box.

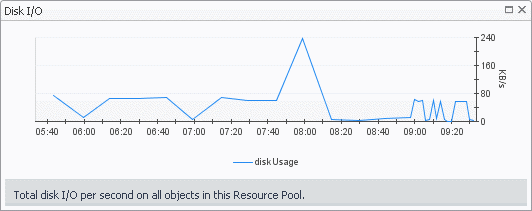

Disk I/O spinner. Displays the Disk I/O dialog box.

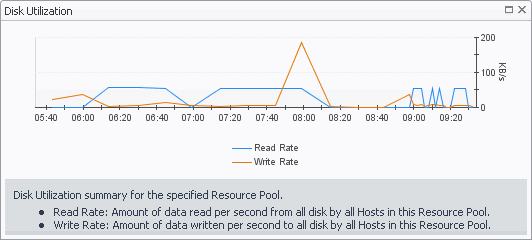

Disk Utilization graph. Displays the Disk Utilization dialog box.

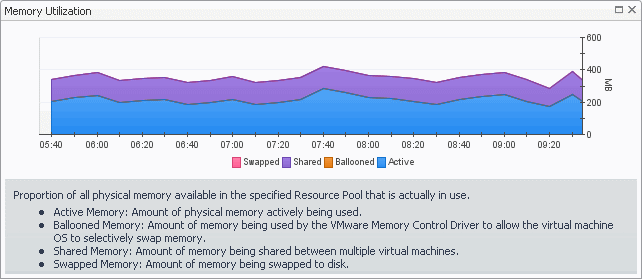

Memory Utilization graph. Displays the Memory Utilization dialog box.

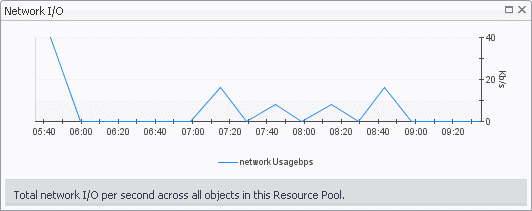

Network I/O spinner. Displays the Network I/O dialog box.
Network Utilization graph. Displays the Network Utilization dialog box.

Summary - All Resource Pools view

The Summary - All Resource Pools view displays overall resource utilization information for a group of physical resource pools and shows the elements that consume the highest amount of system resources.

1
On the VMware Environment dashboard, on the Monitoring tab, in the Virtual Environment Overview, select the Resource Pools tile.
2
In the Quick-View, select the Summary node in the Resource Pools view.
The Summary - All Resource Pools view appears on the right.

This view is made up of the following embedded views:

Table 155. Alarms

Lists the alarms generated against the monitored system.

Alarm Message. An explanation about why the alarm occurred.
Severity. Indicates the alarm severity: Warning, Critical, or Fatal.
Time. The time at which the alarm was generated.

Drill down on:

Severity. Displays the Alarm Created dialog box, showing additional information about the alarm. For more information about alarms in Foglight, see the Foglight User Help.

Shows the top three resource pools with the highest average CPU utilization.

Resource Pool. The name of the resource pool.
Used Hz.The amount of CPU processing speed each of the top three CPU consumers spend on executing system code and user programs, during the selected time range.

Drill down on:

Used Hz (in the graph). Displays the Top Resource Pools-CPU Used Hz dialog box.

Shows the top three resource pools with the lowest available disk space.

Rate. The rate at which the top three disk consumers read or write data to the disk during the selected time range.
Resource Pool. The name of the resource pool.

Drill down on:

Rate (in the graph). Displays the Top Resource Pools - Disk Transfer Rate dialog box.

Shows the top three resource pools with the highest average memory utilization.

Consumed. The amount of memory the top three memory consumers use during the selected time range.
Resource Pool. The name of the resource pool that is one of the top three memory consumers.

Drill down on:

Consumed. Displays the Top Resource Pools - Memory Consumed dialog box.

Shows the top three resource pools that are consuming most network bandwidth.

Rate. The rate at which the top three network consumers transfer data to or from the network during the selected time range.
Resource Pool. The name of the resource pool that is one of the top three network consumers.

Drill down on:

Rate. Displays the Top Resource Pools - Network Transfer Rate dialog box.

Resource Pools view

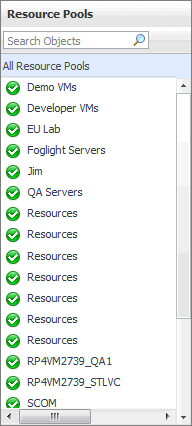

This view is a tree view. It lists the resource pools that exist in your environment and shows their state.

Selecting the All Resource Pools node displays overall resource utilization for all resource pools in your integrated system, and the elements that consume the highest amount of system resources in the Summary - All Resource Pools view on the right. Similarly, selecting a resource pool node shows resource pool-specific metrics in the Resource Pool Summary view on the right.

On the VMware Environment dashboard, on the Monitoring tab, in the Quick-View, select the Resource Pools tile.
The Resource Pools view appears in the Quick-View on the left.
Alarm severity. The state of the most recent alarm raised against the associated resource pool.
All Resource Pools. A parent node for the resource pool object instances that appear in this view.
Resource Pool. The resource pool name.

Drill down on:
