Alarm table
The Alarms List view shows all alarms fired in your Hyper-V® environment. For each alarm entry, it shows its severity, the time it was fired, the rule name that triggered the alarm, and the alarm message.
This view appears on the Hyper-V Alarms dashboard, just below the Alarm overview.
Figure 256. Alarms List view
| |||
| |||
| |||
| |||
| |||
Figure 257. Select Drilldown dwell
 From here, selecting Explorer shows the selected server or virtual machine in the Hyper-V Explorer, with the Hyper-V Explorer Summary tab open. Selecting Quick View shows the selected server or virtual machine in the Server Summary view or Virtual Machine Summary view.
| |||
Figure 258. Alarm Created dialog box
 |
, server
, or virtual machine
.Setting the alarm sensitivity level
on the left.|
3 |
|
4 |
On the Hyper-V Environment dashboard that appears in the display area, click the Administration tab. |

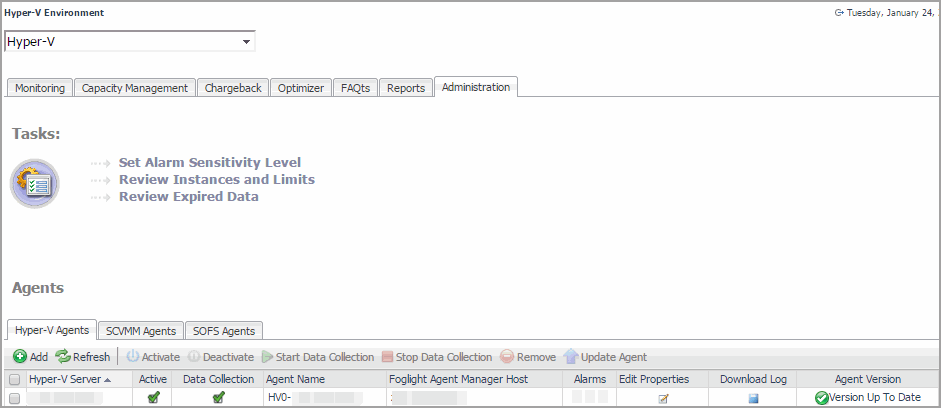

Figure 259. Administration tab
|
5 |
The Set Alarm Sensitivity Level dialog box appears.

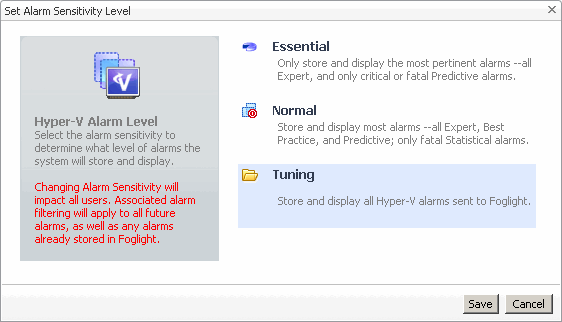

Figure 260. Set Alarm Sensitivity Level dialog box
|
6 |
In the Set Alarm Sensitivity Level dialog box, select the desired sensitivity level: Essential, Normal, or Tuning. |
|
7 |
Click Save. |
The Set Alarm Sensitivity Level dialog box closes.
Finding alarms using the action panel
The action panel gives you quick access to a number of useful actions and tasks. It provides additional actions provided with Hyper-V Monitoring in Foglight® Evolve Cloud when you are viewing the Hyper-V Explorer dashboard.
|
3 |
|
4 |
The Hyper-V Alarms dashboard appears in the display area.
Figure 262. Hyper-V Alarms dashboard
Appendix: Hyper-V Agent error codes
This appendix lists the error codes that the Hyper-V Agent returns when it encounters a connection problem. The error codes result in messages that appear in the alarms raised by the HPV Cluster CPU Estimated Fill Time rule.
