Deployment

Plug‑in for Oracle’s support in Data Guard environments is restricted to physical standby databases. Logical and Snapshot standby databases are not supported. A physical standby database is a transactionally consistent copy of the production database. All references to standby databases see physical standby databases.

The plug-in supports the following types of Data Guard deployments:

Single-Instance

-->

Single-Instance

Multi-Instance RAC

-->

Single-Instance

Multi-Instance RAC

-->

Multi-Instance RAC

Deploying the plug-in in a Data Guard environment requires that you install the plug-in on the Primary Database Server and at least one of Physical Standby Servers — based on the backup strategy selected. For more information on selecting a backup strategy, see Defining a deployment strategy.

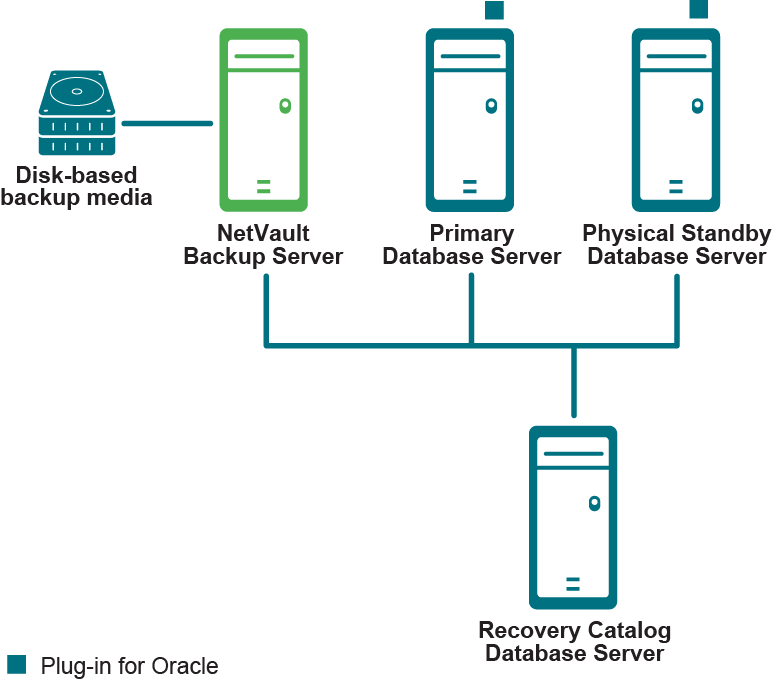

Single-instance to single-instance Data Guard deployment

In a single-instance to single-instance Data Guard deployment, the plug-in is installed on both the Primary and at least one of the Standby Database Servers.

Multi-instance RAC to single-instance Data Guard deployment

In a multi-instance to single-instance Data Guard deployment, the plug-in is installed in the Primary RAC Database environment and at least one of the Standby Database Servers.

For more information on deploying the plug-in in a multi-instance RAC environment, see Defining a deployment strategy.

Multi-instance RAC to multi-instance RAC Data Guard deployment

In a multi-instance to multi-instance Data Guard deployment, the plug-in is installed in the Primary RAC Database environment and at least one of the Standby Database Servers.

For more information on deploying the plug-in in a multi-instance RAC environment, see Defining a deployment strategy.
