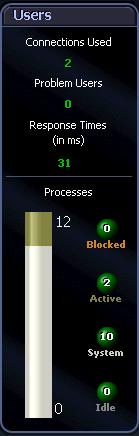

Users Panel

The Users panel displays the following information:

Host Panel

This value displays the percentage of time the Adaptive Server's host CPU was performing tasks.

Clicking this component will drill down to the associated Spotlight on Windows or Spotlight on UNIX plugins. These plugins will provide additional information concerning the host's CPU usage.

Network Packets Sent/Received

This section of the Home Page displays the number of network packets sent by the ASE and received by the ASE.

ASE Panel

The ASE panel displays information about the following:

ASE version number
Date and time the ASE was started
Name (or IP address) of the host machine on which the ASE is running
Name (or IP address) of the server on which the ASE is running
- CPU Busy section
  - Time spent on server-related tasks
  - Engines online and configured
- Locks section
