Integration for Notes 20.13 - User Guide - BTCal

Section 1: Introduction Section 2: Features and Advantages Section 3: Scope Section 4: Recommended Installer Prerequisites Section 5: Pre-installation Requirements Section 6: Configure the Domino Environment Section 7: Configure Integration for Notes BTCal in Exchange or Office 365 Section 8: Licenses Section 9: Installing Integration for Notes Section 10: Create and Configure Domino Databases Section 11: Modify the Notes.ini File Section 12: Re-start BTCal Domino server to bring it online Section 13: Verification Section 14: On-going Administration Appendix A: ZApp Appendix B: Configure GRIP Appendix C: On the Fly Encryption and Decryption Appendix D: Disable Encrypted Message Routing Appendix E: High Availability/Redundancy Mail and Calendar Routing for Foreign Domains Appendix F: Notes.ini Parameter Descriptions Appendix G: Notes.ini Parameter Values Appendix H: Considerations for Domino SMTP Domain Exposure Appendix I: Processing Repeating Meetings Appendix J: Deployment Quick Reference Appendix K: Customizable Non Delivery Report (NDR) Reason Codes Appendix L: Cross Platform Delegation Appendix M: BT Stats Database

10.1 BTCache V3 Template – btcache3.ntf

10.1     BTCache V3 Template – btcache3.ntf

10.1.1 Create the btcache database

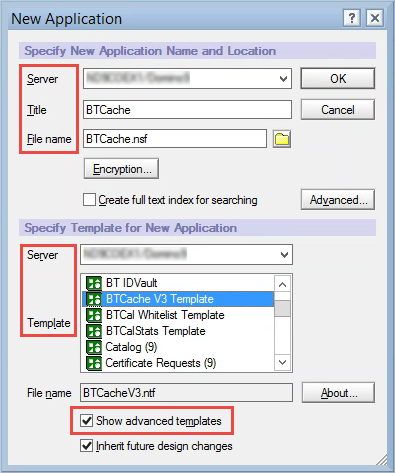

With the Domino Coex server running, create a new application from a Domino administrator client (Ctrl-N); configure each setting as shown below:

Field Name

Recommended Value


<Domino Coexistence Server>



File name



BTCache V3 Template

Show advanced templates

<be sure this is checked>



10.1.2 Purge and Archive btcache Documents

Purge and archive the BTCache calendar documents that are no longer needed. Automatic purging and archiving of cache documents is based on the $BTPurgeDate field, which is automatically set to the last occurrence of a repeating meeting.

To allow database purging or archiving of the BTCache database, purge dates (BTPurgeDate) are added to the cache meeting documents originating from both Notes and Outlook. The BTPurgeDate is set to the end date/time of the last occurrence in an invitation. For rescheduled repeating meetings, the last occurrence date/time is compared with the BTPurgeDate in the cache and the BTPurgeDate is updated if the new date/time is greater. For a rescheduled single occurrence meeting, BTPurgeDate is updated to the end date/time of the reschedule.

There are two methods for setting the BTPurgeDate:

  1. A scheduled agent runs daily at 1AM to automatically set the value

  2. A manual agent can be run from the Actions menu

Purge Settings

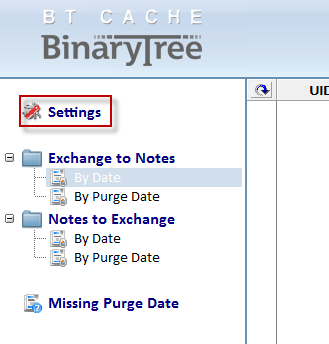

Click on Settings at the top of the navigator.

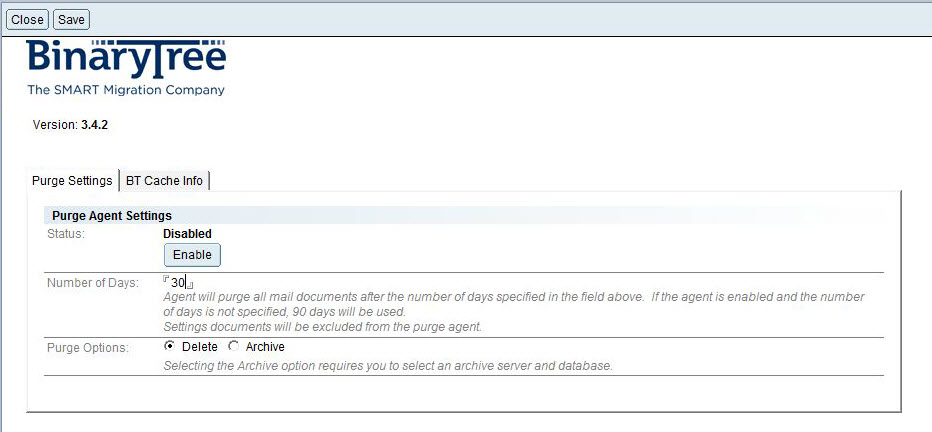

Configure the following settings to purge documents:

  1. Click Enable on the Status line to enable the agent.

  2. Enter the Number of Days after the $BTPurgeDate to delete the document(s).

  3. On the Purge Options, select Delete to have the documents deleted from the cache database, or Archive to have the documents archived to another Notes database. If you will select Archive, you must also populate the following fields:

    • Archive DB Path – The Cache Archive database path where the documents will be copied. Click the Select DB button to choose a DB.

    • Archive Server – The Domino Server where Cache Archive will reside.

      Take note that the archive database must use the btcache template.

10.2 BT Document Store Template – btstore.ntf

10.2     BT Document Store Template – btstore.ntf

Please see Appendix A: ZApp - Installing ZApp for information on creating and configuring the BTStore database.

10.3 BT IDVault – btidcache.ntf

10.3     BT IDVault – btidcache.ntf

Refer to Appendix C: On the Fly Encryption and Decryption for information on configuring the BT IDVault database.

10.4 Integration for Notes Router Mailbox -

10.4    Integration for Notes Router Mailbox -

10.4.1 Check the ACL on the Mail Router Mailbox [mailbox.ntf] for the database

Validate the ACL of mailbox.ntf using the values below. Include any other entries that may be required by company policy: the default ACL entries must be assigned the following values:


User Type




No Access





Person Group







10.4.2 Create the database

Create a new database in the Data directory of the Domino Coexistence server. This database will be based on the Domino Mail Router Mailbox template located on the Domino COEX server. Title the new database BT Exchange Mailbox with a filename of Adjust its ACL to include any other entries that may be required by company policy, but do not modify the existing default ACL entries.

The above values should match the INI variable BTEXCHANGEROUTER.
